33uH Shielded Power Inductor Miniaturized SMD Inductor for Electronic Equipment

Brand Name:	ZXY
Model Number:	ZXY-330 SMD inductor
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,ISO9001,CE

Application:

Electronic Equipment

Dimension(inch):

0.4724*0.4724*0.2441

Packing:

Reel+carton Box

Shielding:

Shielded

Supply Ability:

2000K-pcs/month

Highlight:

22uh Miniaturized Power Inductors Shielded

2.5A Miniaturized Power Inductors 22uh

22uh Miniaturized Power Inductors 2.5A

Product Description

33uH Shielded Power Inductor Miniaturized SMD Inductor for Electronic Equipment

1.Company Profile

Shenzhen Zhixiangyuan Electronics Co.,Ltd is a high tech enterprise, specializing in customizing various types of audio transformers, high frequency transformers, low frequency transformers,switching power transformers, toroidal inductors, choke coils, SMD power inductors, supper high current inductors and wireless charging coils ,etc for customers.

Founded in 2011,our factory have two production bases in Huizhou city,Guangdong province and Guang’an city,Sichuan province which can produce 120 million inductors and transformers that meet the environmental Protection requirements of ISO every year. Our company equips with fully automatic winding,soldering,assembling,testing machines,also some reliability test equipments.

Our products are certified by UL,FCC,CE,RoHS,Reach and granted with 20 patents.These achievements mainly come from our strong R and D team,providing solutions for temperature decreasing noise cancellation and coupled radiation conductivity.

The products are widely used in High quality audio equipments, audio conference room equipments,communication, medical electronic equipments, automotive electronics, sports and fitness equipments, beauty equipments,LED lighting,and consumer electronics etc.

2. Structure and composition

Chip inductors are a commonly used electronic component. When the current passes through the wire, a certain electromagnetic field will be generated around the wire, and the wire in this electromagnetic field will generate an induced electromotive force-self-induced electromotive force, which we call electromagnetic induction. In order to enhance electromagnetic induction, people often wind the insulated wire into a coil with a certain number of turns.

3.Shape and dimensions

TYPE	DIMENSIONS				INDUCTANCE
TYPE	Unit	A1(±0.3)	A2 (± 0.3)	B (MAX)	INDUCTANCE
SMRH73	mm	7.3	7.3	3.8	10μH~1000μ H
SMRH73	inch	0.2874	0.2874	0.1496	10μH~1000μ H
SMRH74	mm	7.3	7.3	4.5	104μ H-1000μ H
SMRH74	inch	0.2874	0.2874	0.1772	104μ H-1000μ H
SMRH124	mm	12	12	5	3.9 μ H~330 μ H
SMRH124	inch	0.4724	0.4724	0.1969	3.9 μ H~330 μ H
SMRH125	mm	12	12	6.2	1.3μH~1000 μ H
SMRH125	inch	0.4724	0.4724	0.2441	1.3μH~1000 μ H
SMRH127	mm	12	12	8	1.2μH~1000μ H
SMRH127	inch	0.4724	0.4724	0.315	1.2μH~1000μ H
SMRH103R	mm	10	10	3.1	0.8μH~150 μ H
SMRH103R	inch	0.3937	0.3937	0.122	0.8μH~150 μ H
SMRH104R	mm	10	10+0.5/-0.3	4.2	1.5 μH~330 μ H
SMRH104R	inch	0.3937	0.3937	0.1654	1.5 μH~330 μ H
SMRH105R	mm	10	10+0.5/-0.3	5.1	1.5 μH~330 μ H
SMRH105R	inch	0.3937	0.3937	0.2008	1.5 μH~330 μ H

4.Specification

PART NO.	L(μ H) INDUCTANCE	L TEST FREQUENCY	DCR(Q) MAX	IDC(A) MAX
SMRH125-1R3□	1.3	7.96MHz	0.012	8
SMRH125-2R1□	2.1	7.96MHz	0.014	7
SMRH125-3R1□	3.1	7.96MHz	0.017	6
SMRH125-4R4□	4.4	7.96MHz	0.02	5
SMRH125-5R8□	5.8	7.96MHz	0.021	4.4
SMRH125-7R5□	7.5	7.96MHz	0.024	4.2
SMRH125-100□	10	1kHz	0.025	4
SMRH125-120□	12	1kHz	0.027	3.5
SMRH125-150□	15	1kHz	0.03	3.3
SMRH125-180□	18	1kHz	0.034	3
SMRH125-220□	22	1kHz	0.036	2.8
SMRH125-270□	27	1kHz	0.051	2.3
SMRH125-330□	33	1kHz	0.057	2.1
SMRH125-390□	39	1kHz	0.068	2
SMRH125-470□	47	1kHz	0.075	1.8
SMRH125-560□	56	1kHz	0.11	1.7
SMRH125-680□	68	1kHz	0.12	1.5
SMRH125-820□	82	1kHz	0.14	1.4
SMRH125-101□	100	1kHz	0.16	1.3
SMRH125-121□	120	1kHz	0.17	1.1
SMRH125-151□	150	1kHz	0.23	1
SMRH125-181□	180	1kHz	0.29	0.9
SMRH125-221□	220	1kHz	0.4	0.8
SMRH125-271□	270	1kHz	0.46	0.75
SMRH125-331□	330	1kHz	0.51	0.68
SMRH125-391□	390	1kHz	0.69	0.65
SMRH125-471□	470	1kHz	0.77	0.58
SMRH125-561□	560	1kHz	0.86	0.54
SMRH125-681□	680	1kHz	1.2	0.48
SMRH125-821□	820	1kHz	1.34	0.43
SMRH125-102□	1000	1kHz	1.53	0.4

5.Features

Various high power inductors are superior to be high saturation for surface mounting

6.Applications

(1).Power supply for TVR,OA equipment,audio ,LED television

(2).Communication equipemnts,DC/DC converters,etc.

7.Comment

(1).Sampe order is available.
(2).Large quantity can be negotiated
(3).Customized orders (OEM/ODM orders) are available.
(4).Contact us for a list of available series.

8.How to order

(1).Please send me the sheet or part number you need.
(2).We will provide a replacement quotation for your reference.
(3).Free samples are available for your approval.
(4).After samples testing,we will enter bulk order.
(5).A proforma invoice will be sent to you for confirmation.
(6).After the goods finished,we will send the goods to you and tell you the tracking number.
(7).We will track your shipment until you recive it.

9.Our service

(1).100% tested before shipment.
(2).Provide free samples.
(3).Provide customers with new designs

10.Product Pictures

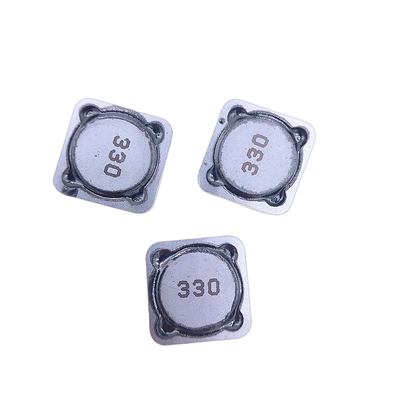

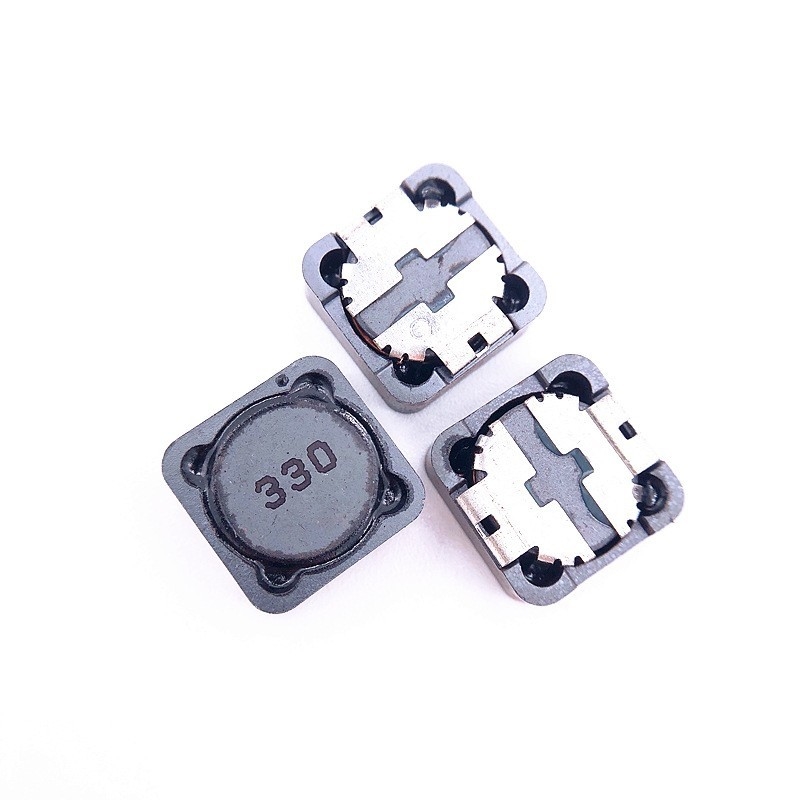

33uH Shielded Power Inductor Miniaturized SMD Inductor for Electronic Equipment 0
