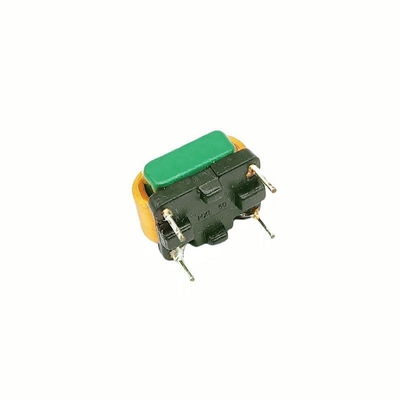

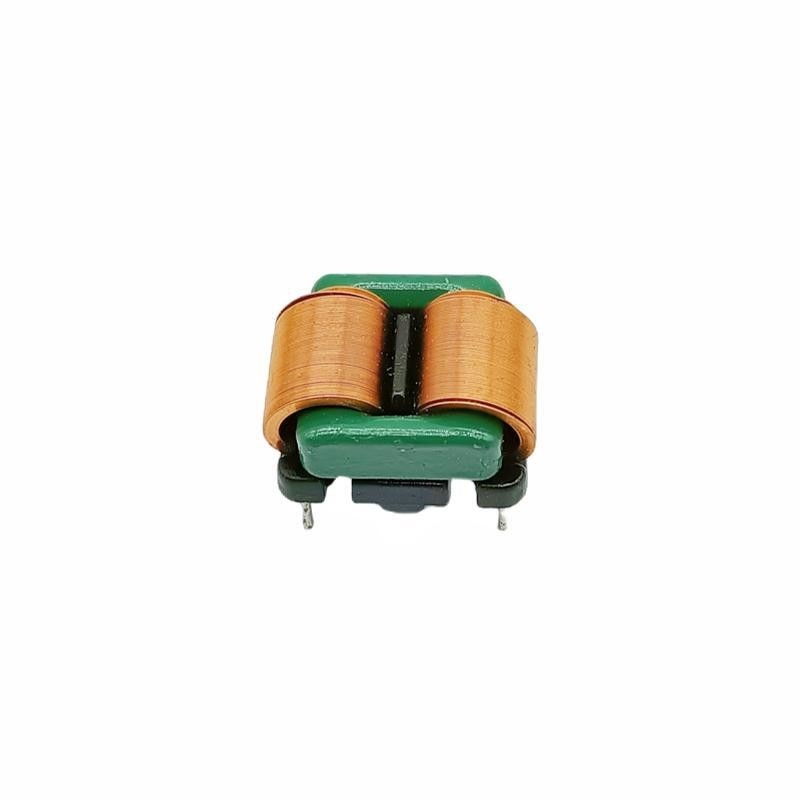

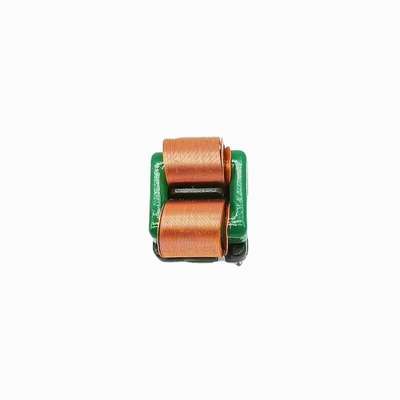

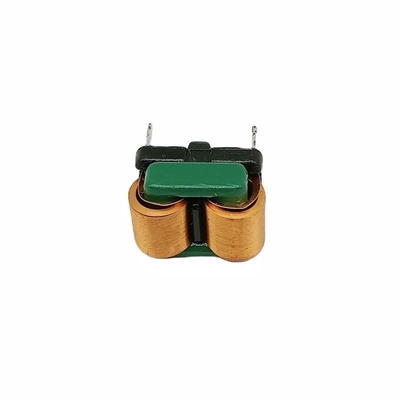

Square Mn-Zn Ferrite Toroidal Inductor Horizontal Copper Flat Wire Line Filter

Brand Name:	ZXY
Model Number:	ZXY1212-0.1*1.0-15MH
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	100pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,ISO9001,CE

Inductance:

Customized

Supplier Type:

Original Manufacturer

Operating Temperature:

-40℃~+125℃

Package Form:

Plug-in Inductor

Form Factor:

Vertical/Horizontal

Keywords:

Flat Wire Line Filter

Supply Ability:

2000K-pcs/month

Highlight:

Mn-Zn Ferrite Inductor

Flat Wire Line Filter

Horizontal Copper Line Filter

Product Description

Square Mn-Zn Ferrite Toroidal Inductor Horizontal Copper Flat Wire Line Filter

1.Product Description

Flat Wire Line Filter is an electrical filter using flat coil (flat copper wire) technology, which is widely used in power management, signal filtering and power systems. Its main function is to reduce noise and interference and ensure stable operation of electrical equipment.

Model Number	Mn-Zn ferrite toroidal inductor
Material	Mn-Zn ferrite core ,copper wire
Place of Origin	Guangdong, China
Brand Name	ZXY
Usage	PCB board
Wire dia.	0.025~2.0
Winding	2.5~50000
Lead way	Pins
DC Resistance (mΩ)	Customized
Parameters	Customized
Supplier	Manufacturer

2.Application

1.Power Line Filters: To eliminate noise and ensure stable power delivery.

2.Signal Line Filters: For communication systems and data transmission to improve signal clarity.

3.Automotive Electronics: For EMI suppression in vehicle electrical systems.

4.Industrial Equipment: To ensure stable operation of motors, drives, and control systems.

5.Consumer Electronics: In devices like computers, televisions, and audio equipment to reduce noise interference.

3.Specificities

1.Closed magnetic circuit design reduces leakageflux and electromagnetic interference (EMI).

2.Flat copper wire has better overcurrent capacity;

3.Automatic production ensures high quality and consistency.

Square Mn-Zn Ferrite Toroidal Inductor Horizontal Copper Flat Wire Line Filter 0

4.Our Team

Square Mn-Zn Ferrite Toroidal Inductor Horizontal Copper Flat Wire Line Filter 4

Square Mn-Zn Ferrite Toroidal Inductor Horizontal Copper Flat Wire Line Filter 5
