K Miniaturized Power Inductor Wire Wound Chip SMD Magnetic Sealant Inductor

Brand Name:	ZXY
Model Number:	ZXY-NR252012
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,ISO9001,CE

Inductance:

1.0 ~ 22uH

Dimensions (LxWxH):

2.5x2.0x1.05mm

Feature:

High Power, High Frequency, Low Noise

Application:

Electronic Equipments

Keywords:

Miniaturized Power Inductor

Form Factor:

Supply Ability:

2000K-pcs/month

Highlight:

Shielded SMD Miniaturized Power Inductors 22uh

NR Series Miniaturized Inductor

22uh miniaturized power inductors 1uh

Product Description

K Miniaturized Power Inductor Wire Wound Chip SMD Magnetic Sealant Inductor

1.Product Description

Miniaturized Power Inductors are SMD power inductors characterized by a small- and low-profile and magnetic shield structure. NR power inductors are available in a number of series: NR, NRH, NRS, and NRV. These inductors are available in a variety of heights and footprints ranging from 2.0 mm x 2.0 mm x 1.2 mm to 10.0 mm x 9.8 mm x 5.0 mm.

2. Features

1. The magnetic glue coating structure is adopted, which greatly reduces the buzzing sound;

2. The electrode is directly metallized on the ferrite core, which has strong anti-drop impact and is durable;

3. Closed magnetic circuit structure design, less magnetic leakage, strong anti-EMI ability;

4. Under the same size condition, the rated current is 30% higher than that of traditional power inductors;

5. Small size, low profile, save space and save power;

6. Application range of products: LED lighting; multi-function mobile phones; flat-panel TV; Blu-ray DVD and other electronic equipments;

7. The working temperature range of the product: -25 degrees Celsius --- +120 degrees Celsius.

Item	Value
Model Number	SMD power inductor
Place of Origin	China
Application	PAD,notebook,server,audio
Brand	ZXY
Supplier Type	Original factory
Tolerance	±20%
Operating Temperature	-40℃~+125℃
Rated Power	100KHz

3.Applications

LED Lighting,PAD,Notebook,Server,audio,netcom,security,mobile phone,smart home,energy product,automotive systems,flat-panel TV;Blu-ray DVD;set-top boxes;graphics cards;.portable, personal navigation systems, multimedia equipment.

TYPE	A	B	C	D	E	F	G	H	Fig
ZXY-NR2512	2.5±0.3	2.0±0.3	1.05 Max	0.8±0.3	0.9±0.3	0.6	1.1	2	1

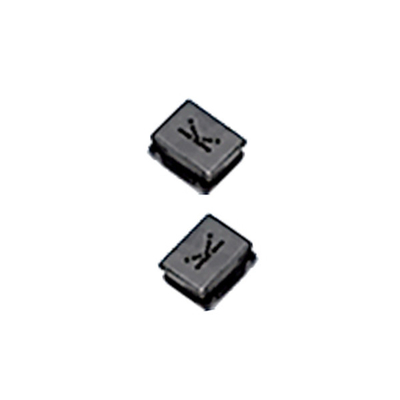

K Miniaturized Power Inductor Wire Wound Chip SMD Magnetic Sealant Inductor 0

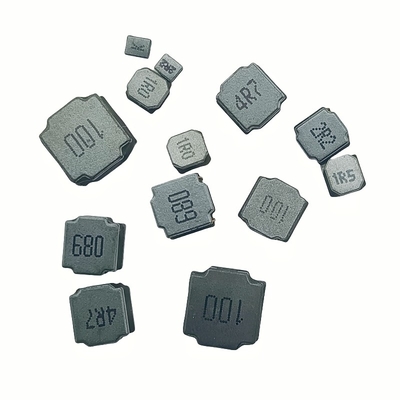

K Miniaturized Power Inductor Wire Wound Chip SMD Magnetic Sealant Inductor 1

4.Other Recommended Produtcs

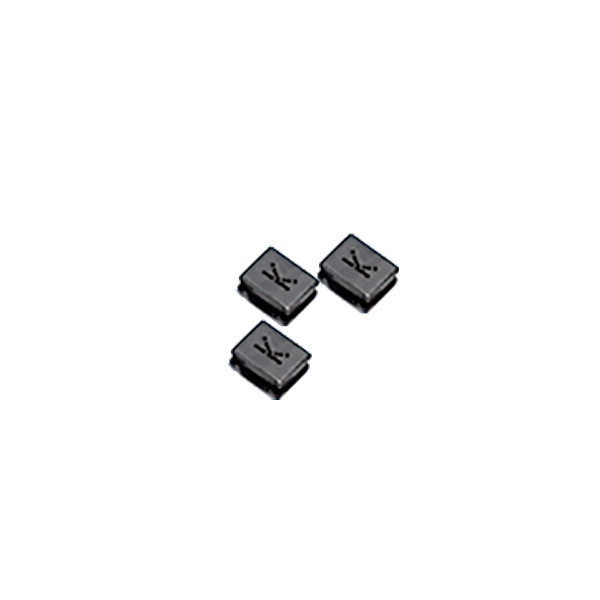

K Miniaturized Power Inductor Wire Wound Chip SMD Magnetic Sealant Inductor 3
