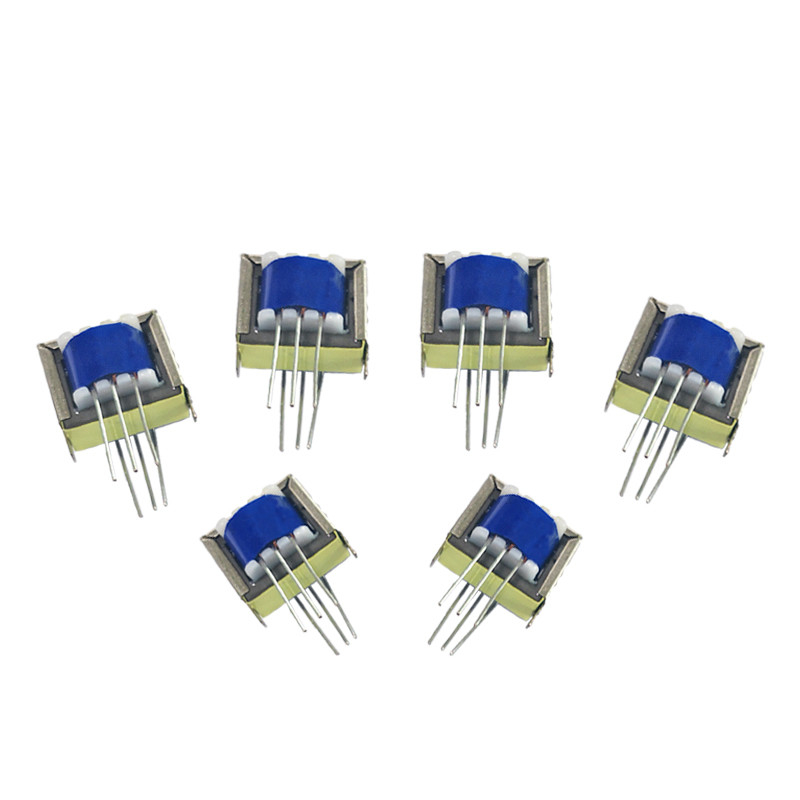

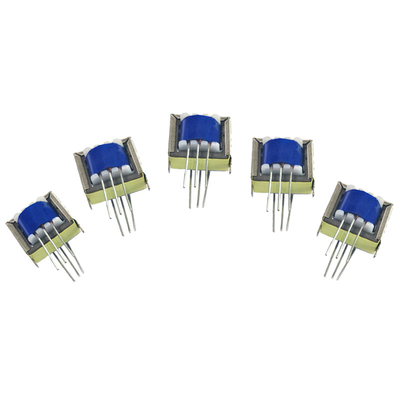

EI14 Audio Power Low Frequency Transformer Fixed With Iron Clip Soft Feet 3+3

1.Product Description:

The EI14 Audio Power Low Frequency Transformer is a specialized electrical component designed for audio applications. Here's a detailed description:

1. Core Structure and Size

It features an EI14 core. The "EI" shape is a classic transformer core design, which provides a closed magnetic path. The "14" likely refers to a specific dimension of the core (such as the width or some other characteristic dimension), which helps in determining the magnetic properties and power handling capabilities of the transformer. This core structure is beneficial for low-frequency audio applications as it can efficiently transfer magnetic flux, reducing magnetic leakage and improving the overall efficiency of the transformer.

2. Audio Power Application

As an audio power transformer, it is intended to handle audio signals in power-related scenarios. In audio systems, such as amplifiers, it plays a crucial role in converting electrical power to an appropriate voltage level for driving speakers or other audio output devices. It can step up or step down the voltage as required by the audio circuit, ensuring that the audio signal is transmitted with minimal distortion and maximum power transfer.

3. Low Frequency Operation

Optimized for low-frequency operation, this transformer is suitable for handling the typical frequencies found in audio signals. Low-frequency audio signals (usually in the range of 20 Hz to 200 Hz or lower in some cases) require a transformer that can accurately transfer the magnetic field associated with these frequencies. The design of the EI14 core and the winding configuration are tailored to perform well in this frequency range, providing good bass response and overall audio quality.

4. Iron Clip Fixing

The transformer is fixed with an iron clip. This iron clip serves multiple purposes. Firstly, it provides a secure mechanical connection, ensuring that the transformer remains in place during operation. This is important, especially in applications where there may be vibrations or movement, such as in mobile audio equipment or in industrial audio setups. Secondly, the iron clip may also contribute to the magnetic shielding of the transformer, reducing the impact of external magnetic fields on its performance and minimizing the leakage of magnetic fields from the transformer to the surrounding components.

5. Soft Feet 3+3

The inclusion of soft feet is another notable feature. These soft feet provide several advantages. They act as shock absorbers, reducing the transmission of vibrations from the transformer to the surrounding components or the mounting surface. This helps in minimizing mechanical noise and preventing damage to the transformer or other parts of the audio system due to excessive vibrations. Additionally, the soft feet can also provide some level of electrical insulation, preventing unwanted electrical connections between the transformer and the mounting surface.
