ETD34 Flyback Topology 5W AC220V Input High Frequency SMPS Transformer for Small Power Adapters
All Category

Audio Transformer

Permalloy Audio Transformer

Audio Isolator

Power Transformer

High Frequency Transformer

Inductor

Wireless Charging Coil

EMI Filter

Air Coil

Line Filter

Common Mode Inductor

Current Transformer

Toroidal Transformer

Low Frequency Transformer

Lan Transformer

Chip Inductor
Contact Us
Ms. Chen
rhea@zxycoil.com
+8613554723725
Contact Now
ETD34 Flyback Topology 5W AC220V Input High Frequency SMPS Transformer for Small Power Adapters
  • name
  • name
  • name

ETD34 Flyback Topology 5W AC220V Input High Frequency SMPS Transformer for Small Power Adapters

Brand Name: ZXY
Model Number: ETD34
MOQ: negotiable
Price: negotiable
Packaging Details: carton
Payment Terms: L/C,D/A,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China Guangdong
Certification:
RoHS、ISO9001、CE
Rated Power:
5W
Input Voltage:
AC220V
Product Type:
SMPS High Frequency Transformer
Application:
Small Power Adapter
Core Type:
ETD Type Ferrite Core
Main Function:
Voltage Conversion, Isolation, Flyback Power Conversion
Supply Ability:
50000
Highlight:

5W Rated Power SMPS Transformer

,

AC220V Input High Frequency Transformer

,

Flyback Topology Flyback Transformer

Product Description
ETD34 Flyback Topology 5W AC220V Input High Frequency SMPS Transformer for Small Power Adapter Household Appliance Control Board
Product Features

This ETD34 flyback high-frequency transformer adopts professional flyback topology structural design, matched with ETD34 ferrite magnetic core. It supports 5W rated power and AC220V input voltage, adopts precise automatic winding process to realize stable voltage conversion and electrical isolation.

The product features low core loss, small heating value during continuous operation, compact overall size for easy PCB board welding and installation, and complies with RoHS environmental insulation standards with strong voltage resistance and anti-interference ability.

Product Advantages
  • Mature flyback circuit design, stable operation for long-term small-power switching power supply
  • High cost performance for 5W low-power power supply centralized application
  • Strict insulation treatment between primary and secondary coils to avoid short-circuit safety hazards
  • Factory customizable winding parameters to match different adapter and control board circuit schemes
  • Low electromagnetic noise, effectively optimize the EMC performance of terminal equipment
Application Scenarios

Suitable for 5W small power switching adapters, household appliance main control boards, smart home power supply modules, small charger built-in power supply, LED small power drive power supply, low-voltage household controller power transformation modules and other small-power switching power supply equipment.

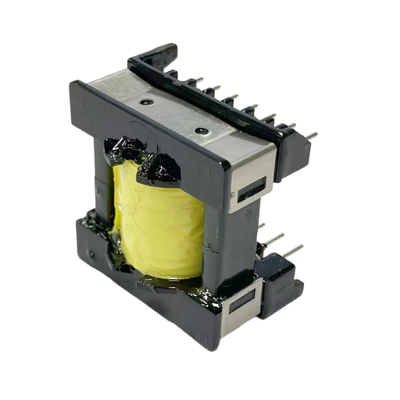

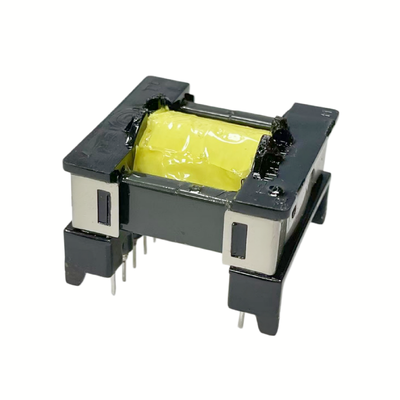

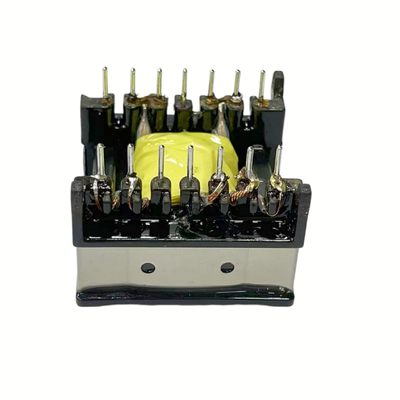

ETD34 Flyback Transformer product view ETD34 Flyback Transformer side view ETD34 Flyback Transformer technical specifications
