PQ2014 High Frequency Transformer, Ferrite Core Vertical Pin PQ2014 Switching Power Transformer for LED Driver & Charger

Brand Name:	ZXY
Model Number:	PQ2014
MOQ:	negotiable
Price:	negotiable
Packaging Details:	carton
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China Guangdong

Certification:

IS09001/ CE

Core Structure:

Manganese Zinc Ferrite Core

Pin Installation Type:

Vertical Through-hole DIP Pin Out

Power Rating:

15W – 40W Rated Output Power

Insulation Class:

Class B

Operating Frequency Range:

50kHz – 200kHz

Customizable Item:

Turns Ratio, Inductance, Hipot Voltage, Lead Length Customization

Supply Ability:

50000

Product Description

PQ2014 High Frequency Transformer, Ferrite Core Vertical Pin PQ2014 Switching Power Transformer for LED Driver & Charger

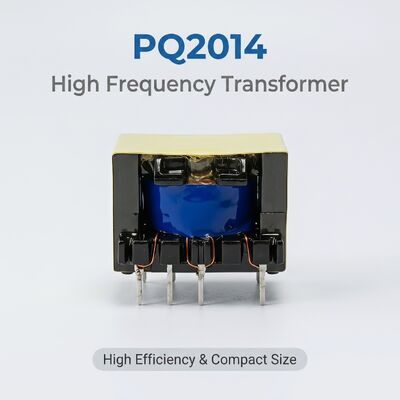

PQ2014 High Frequency Transformer
Feature	Specification
Model	PQ2014
Input Voltage	110V AC
Output Voltage	220V AC
Rated Power	High power (exact wattage to be confirmed, e.g. 1000W, 2000W, etc.)
Frequency	High frequency (e.g. 50Hz/60Hz or higher for professional applications)
Efficiency	High efficiency (e.g. ≥ 90%)
Insulation Class	Class B/F/H (depending on thermal resistance)
Cooling Method	Natural air cooling / forced air cooling (if applicable)
Core Material	Advanced ferrite or silicon steel (for high frequency performance)
Winding Material	Oxygen-Free Copper (OFC) for low resistance and high conductivity
Protection Functions	Overload protection, overheat protection, short circuit protection (if available)
Operating Temperature	-20°C to 60°C (or wider range depending on design)
Safety Standards	CE, RoHS, UL (if certified)
Applications	Industrial equipment, power supplies, high frequency inverters, etc.
Weight & Dimensions	Compact and lightweight (exact specs depend on rated power)

This PQ2014 high frequency transformer adopts vertical pin outgoing design, greatly reducing horizontal occupancy on the PCB board. It perfectly fits slim, compact power supply shell design requirements for product miniaturization. The through-hole soldering structure delivers solid welding stability, outstanding shock resistance and anti-vibration performance, adapting to harsh working environments for industrial and outdoor power equipment.

PQ2014 High Frequency Transformer Product Advantages

1. Vertical Through-hole Pin Structure for PCB Space Optimization

2. Low Loss Ferrite Core for Stable High-Frequency Operation

3. Fully Customizable Electrical Parameters

4. Reinforced Insulation & High Safety Reliability

5. Mature Mass Production & Strict Quality Inspection

Main Application Scenarios

1.Consumer Electronic Power Adapters

2.Industrial Control Power Modules

3.LED Lighting Driver Power

4.Communication Terminal Power Supply

5.Low-Power Medical Isolated Power Supply

6.New Energy Auxiliary Power
