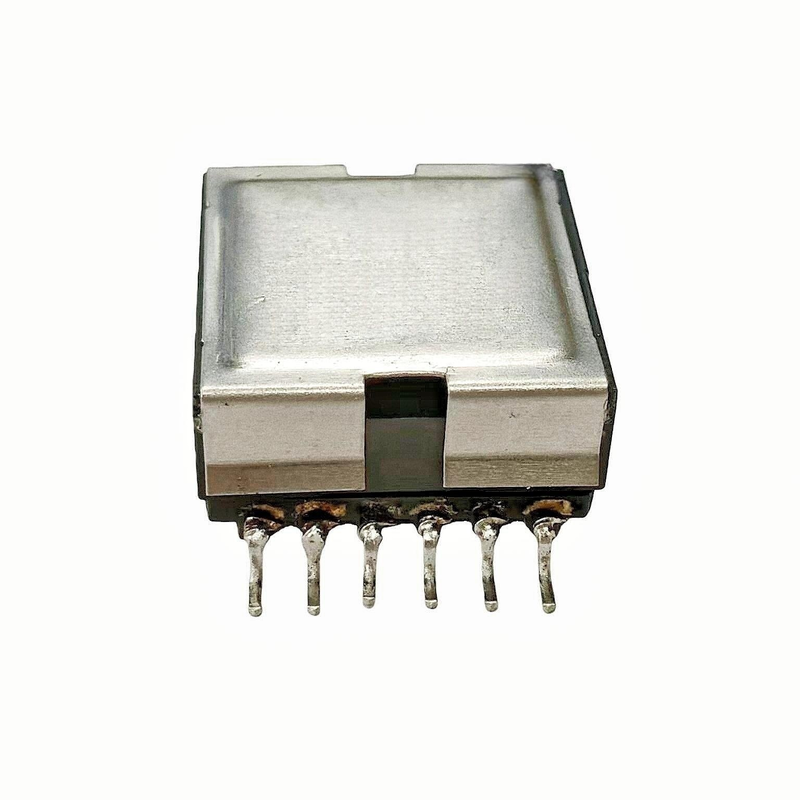

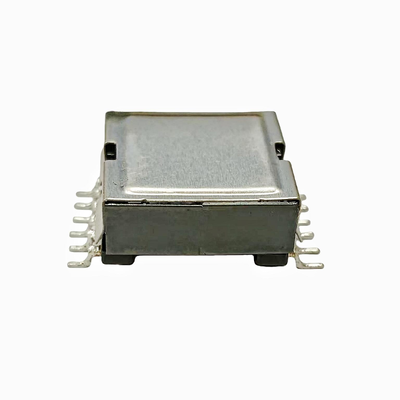

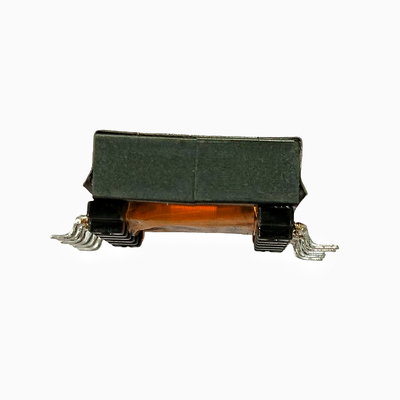

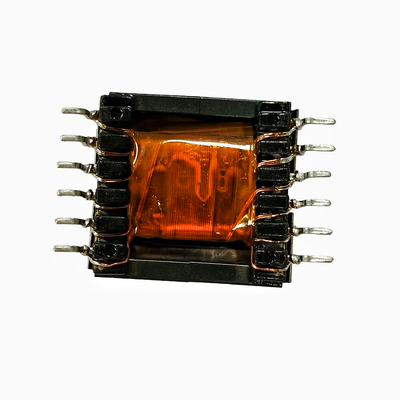

Custom EFD20 High Frequency Transformer Low Profile Ferrite Core SMPS Transformer for Fast Charger Adapter

Brand Name:	ZXY
Model Number:	EFD20
MOQ:	negotiable
Price:	negotiable
Packaging Details:	carton
Payment Terms:	L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China Guangdong

Frequencyresponse:

20 Hz - 20 KHz

Package:

Customize

Characteristic:

High Magnetic Permeability

Wire Material:

Copper Wire,permalloy

Connection Option:

Pin Type

Characterization:

Low Distortion

Supply Ability:

50000

Product Description

Custom EFD20 High Frequency Transformer Low Profile Ferrite Core SMPS Transformer for Fast Charger Adapter

1.Function Overview

EFD20 is a flat high-frequency ferrite transformer dedicated to switching power supplies. It realizes high-efficiency AC-DC voltage conversion, energy transfer and voltage transformation in flyback/forward power supply circuits. It reduces electromagnetic interference, optimizes power conversion efficiency, and provides stable isolated DC power output for lightweight electronic power equipment. EFD20 low-loss manganese-zinc ferrite closed magnetic core, conversion efficiency up to 92%, low energy consumption. Ultra-thin flat profile design, low height, perfectly fits thin chargers and slim power modules. Dual installation options of vertical and horizontal skeleton, standard PCB through-hole pins, flexible layout on circuit boards.

2.Application Fields

Digital charging adapters: mobile phone fast chargers, tablet power supplies, Bluetooth earphone charging boxes, portable power bank built-in modules.
LED lighting power supplies: desk lamps, cabinet strip lights, ceiling downlight constant current drivers.
Portable consumer electronics: sports cameras, handheld scanners, mini portable projectors.
Security & industrial power: surveillance camera power adapters, access controller power modules, instrument DC-DC conversion boards.
Beauty small appliances: facial massage devices, hair removal instrument built-in switching power supplies.

Custom EFD20 High Frequency Transformer Low Profile Ferrite Core SMPS Transformer for Fast Charger Adapter
