ZXY Brand EI14-Type Permalloy Laminated Core Audio Isolation Transformer with High Fidelity Audio Transmission and Galvanic Isolation

Brand Name:	ZXY
Model Number:	EI14
MOQ:	negotiable
Price:	negotiable
Packaging Details:	carton
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China Guangdong

Certification:

RoHS、ISO9001、CE

Core Shape:

EI Type

Mounting Type:

Mounting Type

Winding Material:

Pure Copper Wire

Product Type:

Professional Audio Matching & Isolation Transformer

Efficiency:

≥92% High Fidelity Audio Transmission

Rated Power:

10W – 30W Customizable

Supply Ability:

50000

Highlight:

Permalloy Laminated Core Audio Isolation Transformer

High Fidelity Audio Transmission EI14 Transformer

Galvanic Isolation Permalloy Audio Transformer

Product Description

ZXY Brand EI14-Type Permalloy Laminated Core Galvanic Audio Isolation Transformer

The ZXY EI14 Audio Isolation Transformer is a professional low-frequency audio transformer manufactured by Zhixiangyuan Electronics. Featuring premium nickel-steel lamination core structure and exquisite precision winding technology, this EI14 standard-size transformer is specially engineered for audio signal transmission and isolation.

Core Product Advantages

Ultra-Low Noise & High Fidelity: High-quality nickel-steel lamination core material reduces magnetic flux leakage and high-frequency hum noise, ensuring pure and clear audio output.
Excellent Isolation Performance: Effectively isolates ground loop current interference and eliminates audio buzzing noise caused by voltage difference.
Stable & Durable Structure: Standard EI14 lamination stack design with precise winding process ensures uniform voltage output and long-term operation stability.
Compact & Easy Installation: Mini standardized EI14 size with vertical pin design saves internal equipment space and enables automated PCB assembly.
Strict Quality & Customization Support: All products comply with RoHS environmental protection standards with customizable turns ratio and parameters.
Professional Audio-Grade Performance: Optimized for low-frequency audio signal transmission with flat frequency response and strong anti-interference ability.

Application Scenarios

Audio Amplifier Equipment: Small power audio amplifiers, car amplifiers and home stereo amplifiers
Professional Sound System: Desktop sound systems, stage mini audio devices and conference audio equipment
Portable Audio Devices: Bluetooth audio speakers, portable sound boxes and mini audio playback devices
Audio Peripheral Modules: Audio signal isolators, audio decoding modules and recording equipment

Product Specifications

Item	Specs & Benefits
Core Material	Premium permalloy core, low loss, efficiency ≥92%, high-fidelity audio playback
Shielding Shell	All-metal shielding housing, shockproof, dustproof, moisture-proof & anti-EMI/RFI noise
Power Range	10W-30W customizable power for continuous professional audio equipment operation
Impedance Ratio	Standard multi impedance matching ratio, customizable impedance for different audio circuits
Insulation Grade	V-0 flame retardant bobbin, 130°C / 155°C dual high-temperature resistant insulation
Withstand Voltage	2.5KV AC isolation for 1 minute, full galvanic circuit separation
Insulation Resistance	≥100MΩ @500V DC, low leakage current for stable sound signal
Temperature Performance	Max 45°C temperature rise at full load, long service life without distortion
Mounting Method	Compact PCB through-hole pin design, easy integration for Hi-Fi & studio audio gear

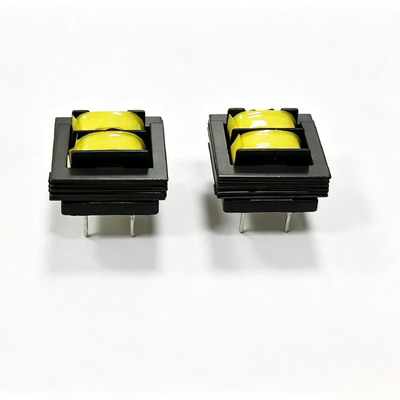

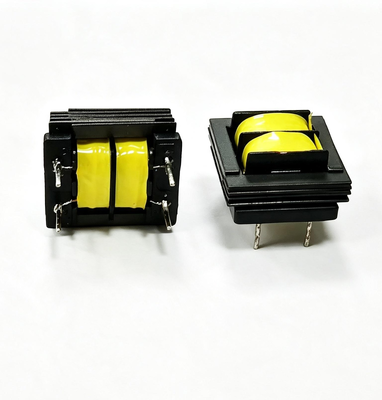

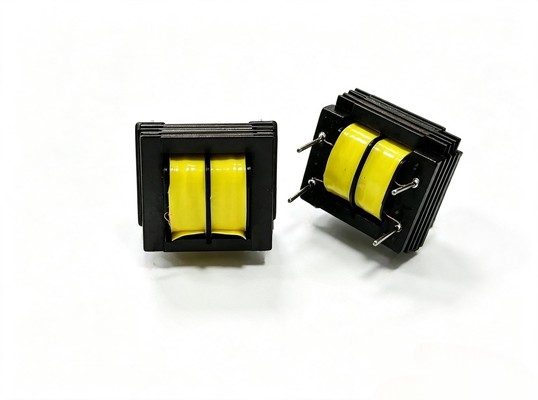

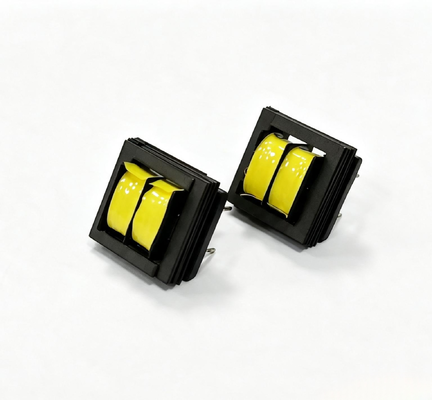

Product Images
