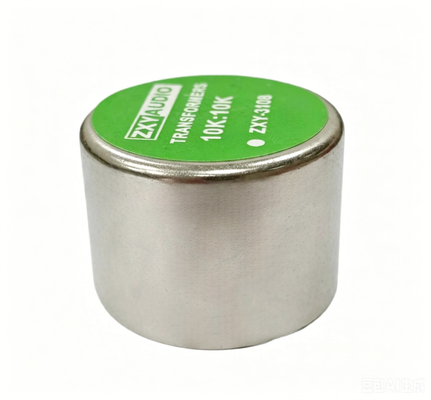

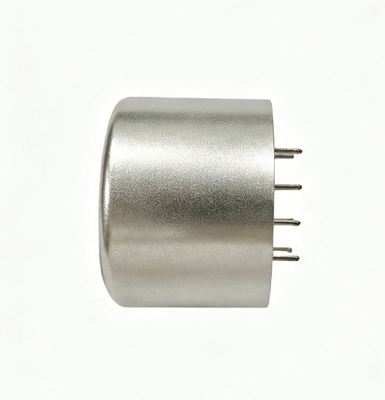

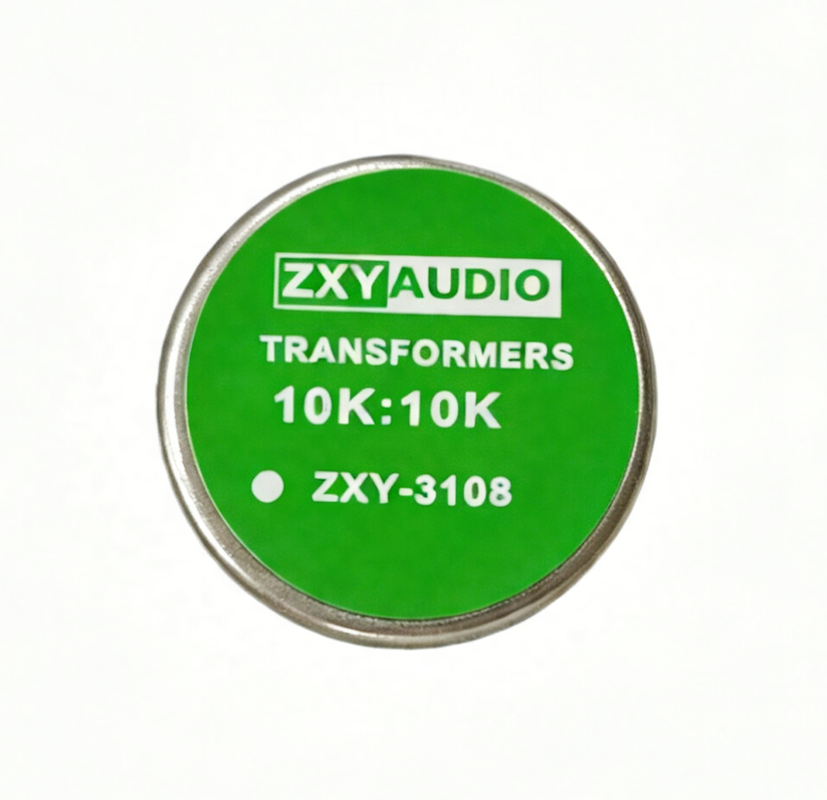

ZXY3108 10K:10K Permalloy Audio Isolation Transformer Low Noise Balanced Audio Transformer

Brand Name:	ZXY
Model Number:	ZXY-3108 10K:10K
MOQ:	negotiable
Price:	negotiable
Packaging Details:	carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China Guangdong

Material:

Permalloy

Impedance Ratio:

10K:10K

Feature:

Low Distortion, Ultra Low Noise, Low Magnetic Leakage

Frequency Range:

Low Frequency Audio Band

Application Field:

Professional Balanced Audio System

Customization:

Support Custom Pin Layout, Insulation Process

Supply Ability:

50000

Product Description

ZXY3108 Permalloy Audio Transformer 10K:10K

1. Product Description

ZXY3108 10K:10K Permalloy Audio Transformer is an EI laminated low-frequency audio isolation transformer equipped with high-permeability permalloy core and full pure copper winding. It adopts 10K:10K impedance ratio design, delivering low magnetic leakage, ultra-low signal distortion and low noise performance. This transformer can isolate audio signals efficiently, eliminate ground loop hum, restrain common-mode interference, and realize balanced audio signal transmission. Made of insulated enameled copper wire, plastic bobbin, with optional tape or epoxy insulation, it maintains stable electrical properties and reliable insulation performance for long-term use. Customization is available for pin arrangement, lead wire type and outer packaging to satisfy diverse professional audio circuit design requirements.

2. Product Application

Balanced audio signal isolation circuits
Ground loop hum elimination in audio systems
Audio signal isolation and signal transmission
Professional audio mixers, audio processors and broadcast equipment
Conference audio systems, public address devices
Microphone preamplifier circuits
Hi-Fi audio equipment, audio test instruments
Industrial audio signal processing modules

Specifications/Parameters/Standards	Details
Product Name/Keywords/Other Name	ZXY3108 10K:10K Audio Isolation Transformer, Permalloy Core Audio Transformer, Low Noise Audio Transformer, Impedance Matching Transformer, Balanced Audio Signal Isolation Transformer
Model Number	ZXY3108
Type	EI Type Audio Transformer / Low Frequency Audio Transformer
Material/Components	Permalloy core, pure copper winding, insulated copper wire, plastic bobbin, epoxy or tape insulation
Core Structure	EI laminated permalloy core
Winding Structure	Double winding / custom winding structure available
Number of Coils	2 coils / can be customized according to requirements

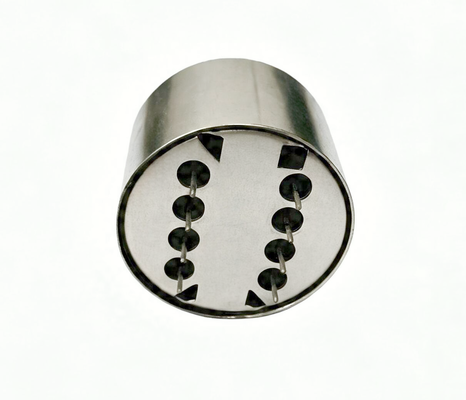

Number of pins	According to customer requirements / lead wire type or pin type optional
Impedance Ratio	10K:10K
Input voltage	According to customer impedance and winding ratio requirements
Output voltage	According to customer impedance and winding ratio requirements
