ZXY3108 12:1 Winding Ratio Audio Isolation Transformer with Permalloy Core for Low Signal Distortion

All Category

Chip Inductor

Ms. Chen

rhea@zxycoil.com

+8613554723725

Contact Now

ZXY3108 12:1 Winding Ratio Audio Isolation Transformer with Permalloy Core for Low Signal Distortion

Brand Name:	ZXY
Model Number:	ZXY-3108
MOQ:	negotiable
Price:	negotiable
Packaging Details:	carton
Payment Terms:	L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China Guangdong

Material:

Permalloy

Winding Ratio:

Structure:

EI Laminated Core

Connection Option:

Pin Type

Operating Frequency:

Low Frequency Audio Range

Main Function:

Audio Signal Isolation

Supply Ability:

50000

Product Description

ZXY3108 12:1 Audio Isolation Transformer Impedance Matching Transformer

Product Overview

ZXY3108 12:1 Audio Isolation Transformer is an EI low-frequency audio transformer built with high-performance permalloy laminated core and 100% pure copper windings.

With a fixed 12:1 winding ratio, this transformer delivers excellent magnetic permeability, low signal distortion and ultra-low noise performance. It effectively isolates audio signals, eliminates ground loop hum, suppresses common-mode interference and balances audio impedance.

Adopting insulated enameled copper wire, plastic bobbin and epoxy/tape insulation structure, the component features stable electrical performance, reliable insulation and long service life.

Customization Support: We support customization on lead type, pin layout, impedance parameters and outer packaging to match professional audio circuit design demands.

Applications

Professional audio signal isolation circuits
Ground loop noise elimination for audio systems
Audio impedance conversion & matching
Broadcast audio equipment, mixers and audio processors
Conference audio system, public address equipment
Hi-Fi audio devices, microphone preamplifier circuits
Audio test instruments and industrial audio modules

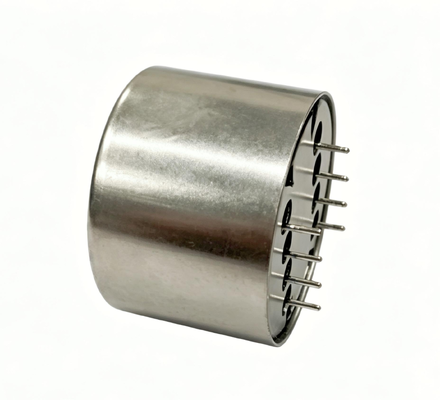

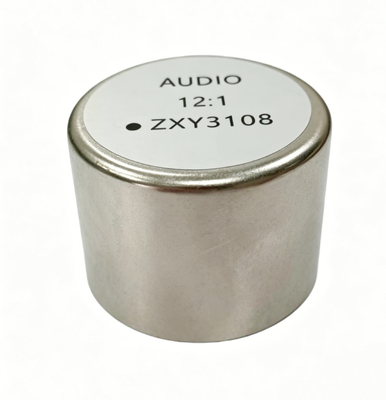

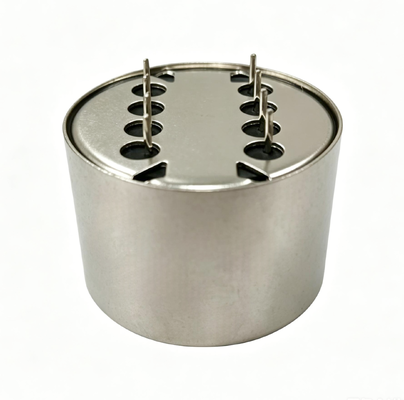

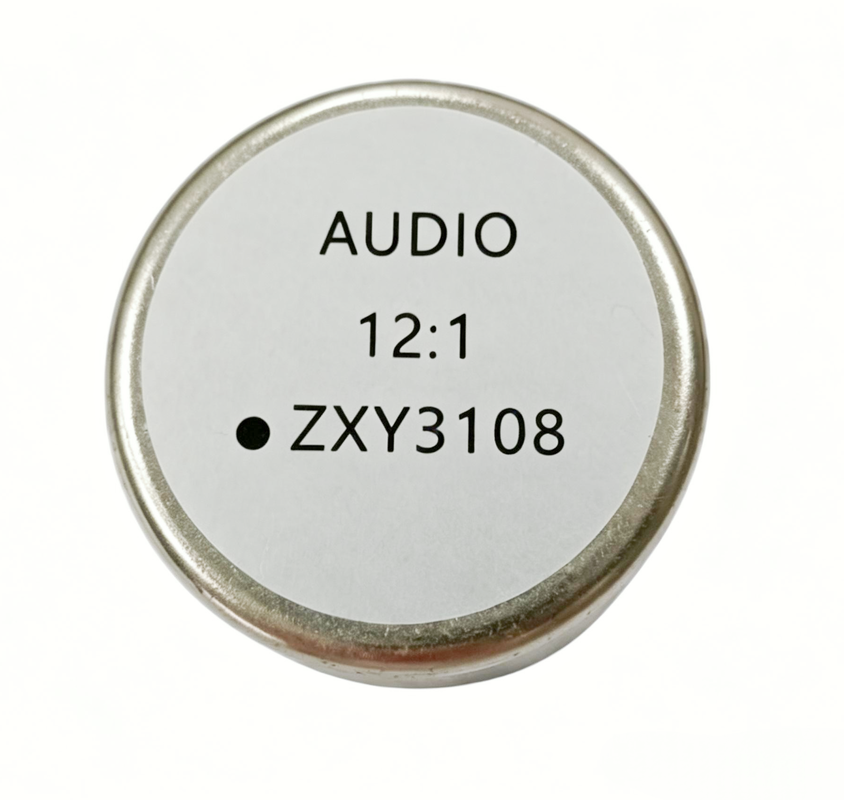

Product Images

Technical Specifications

Specification	Details
Product Name/Keywords	ZXY3108 12:1 Audio Isolation Transformer, Permalloy Core Audio Transformer, Low Noise Audio Transformer, Impedance Matching Transformer, Audio Signal Isolation Transformer
Model Number	ZXY3108
Type	EI Type Audio Transformer / Low Frequency Audio Transformer
Material/Components	Permalloy core, pure copper winding, insulated copper wire, plastic bobbin, epoxy or tape insulation
Core Structure	EI laminated permalloy core
Winding Structure	Double winding / custom winding structure available
Number of Coils	2 coils / can be customized according to requirements
Number of Pins	According to customer requirements / lead wire type or pin type optional
Input Voltage	According to customer impedance and winding ratio requirements
Output Voltage	According to customer impedance and winding ratio requirements
