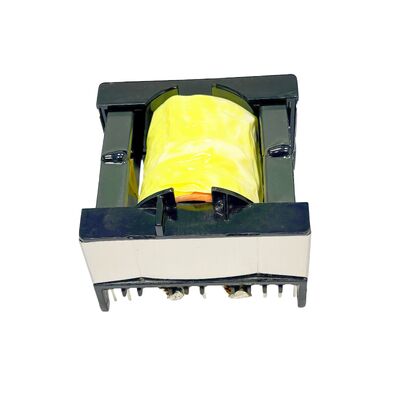

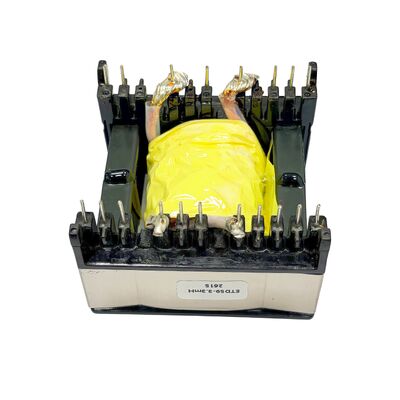

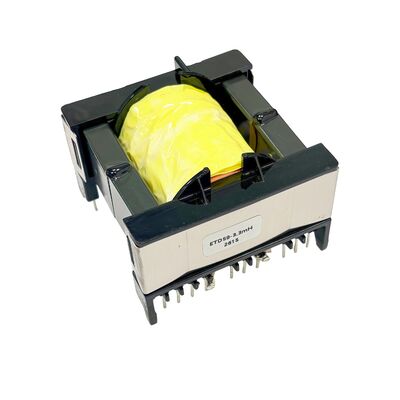

ETD59 High Frequency Transformer PCB Electrical Transformer For Lighting LED
  • name
  • name
  • name

ETD59 High Frequency Transformer PCB Electrical Transformer For Lighting LED

Brand Name: ZXY
Model Number: ZXY-ETD59
MOQ: Negotiable
Price: Negotiable
Packaging Details: Carton
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen Guangdong
Certification:
RoHS、ISO9001、CE
Product Description

ETD59 High Frequency Transformer PCB Electrical Transformer For Lighting LED

1.Product Description

The ETD59 high-frequency transformer is specially designed for LED lighting driver power supply, using high-performance manganese zinc ferrite core, supporting a wide working frequency range of 20kHz-500kHz, with an energy conversion efficiency of over 95% and ultra-low core loss. Specially designed for direct PCB pin soldering installation, with a compact structure, high power density, and reliable insulation strength. This transformer can withstand operating temperatures ranging from -40 ℃ to+125 ℃, and has undergone rigorous comprehensive electrical testing to meet requirements. It supports customized winding parameters, pin layout, and packaging solutions. Please contact kath@zxycoil.com Customize your parameters! Zhixiangyuan core magnetic components, with stable batch quality and short sample delivery time, can be used for global bulk orders


Real Application Case: 800W High Power LED Industrial Flood Light for Factory & Port Outdoor Lighting

The ETD59 PCB-mounted high frequency transformer is integrated into the LLC resonant LED driver board of an 800W outdoor LED flood light, widely adopted for industrial park and seaport lighting projects exported to Southeast Asia and Europe.

Mass Production Feedback
This complete driver solution has been mass shipped for overseas large-scale lighting projects. The ETD59 high frequency transformer cuts the overall driver size by 30% compared with traditional line-frequency transformers, with zero mass quality failures during long-term continuous operation, constant brightness and no light flicker.


2.Performance Characteristics

Item Specification Feature & Application Note
Product Model ETD59 High Frequency PCB Mount Transformer Dedicated for LED lighting driver power supply applications
Core Material Mn-Zn Soft Ferrite Core Low core loss under high frequency operation, stable magnetic permeability across wide temperature range
Operating Frequency Range 20kHz – 500kHz Fully compatible with mainstream LLC, forward and flyback LED driver circuit topologies
Rated Output Power 400W – 2000W Ideal for high-power LED flood light, street light, high bay light and industrial lighting drivers
Power Conversion Efficiency ≥95% Ultra-low heat generation, greatly simplifies the thermal design of the driver power supply
Mounting Type PCB Through-hole Pin Mount Direct solderable on driver PCB, compact footprint, fully compatible with automated SMT assembly
Operating Temperature Range -40℃ to +125℃ Delivers stable and reliable performance in extreme outdoor high/low temperature lighting environments
Dielectric Withstand Voltage ≥3000VAC Full galvanic isolation between primary and secondary windings, ensures safe operation for outdoor LED lighting equipment
Customization Support Fully customizable Flexible adaptation to different LED driver designs, supports custom winding turns, pin layout, inductance value and winding structure
Compliance Standard RoHS Compliant Meets all global environmental protection requirements for lighting product cross-border export
Power Density High Effectively reduces the overall volume of the LED driver power supply, compared with traditional line-frequency transformers

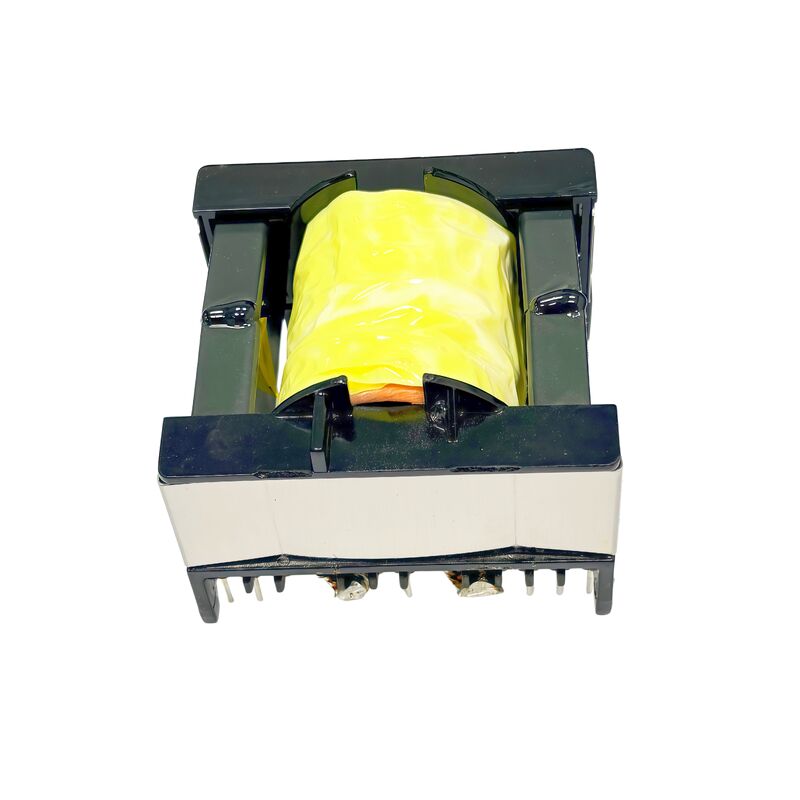

ETD59 High Frequency Transformer PCB Electrical Transformer For Lighting LED 0

ETD59 High Frequency Transformer PCB Electrical Transformer For Lighting LED 1

ETD59 High Frequency Transformer PCB Electrical Transformer For Lighting LED 2

ETD59 High Frequency Transformer PCB Electrical Transformer For Lighting LED 3

ETD59 High Frequency Transformer PCB Electrical Transformer For Lighting LED 4
