Copper Coil DC Reactor Filters Out High-frequency Harmonics, Smoothes DC Current 200A/600V

Brand Name: ZXY
MOQ: Negotiable
Price: Negotiable
Packaging Details: Box
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen Guangdong
Certification:
RoHS、ISO9001、CE
Product Description

Copper Coil DC Reactor Filters Out High-frequency Harmonics, Smoothes DC Current 200A/600V

1.Product Description

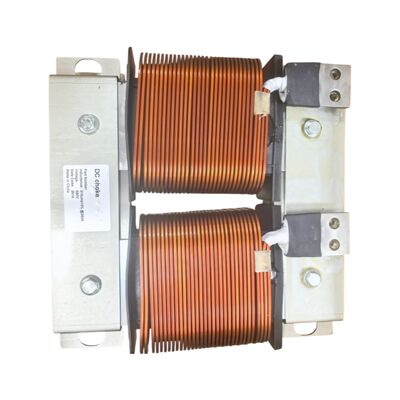

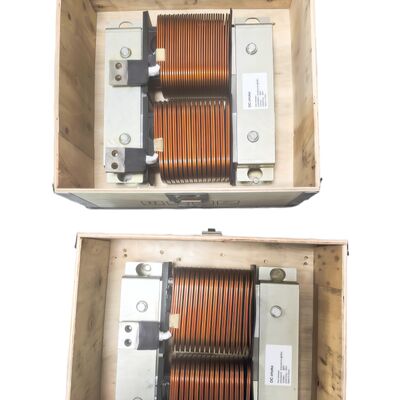

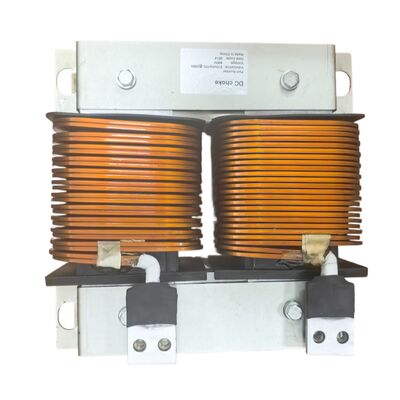

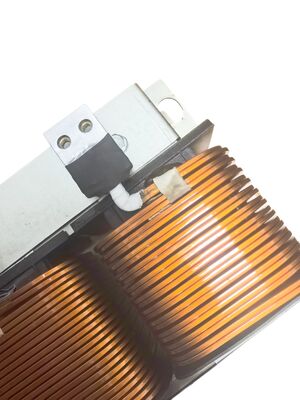

Zhixiangyuan Factory takes real photos of copper coil DC reactors, mainly used to filter out high-frequency harmonics in DC circuits and smooth DC currents. This product has a rated current of 200A and a rated voltage of 600V. Through the impedance characteristics of its copper coil, it can effectively suppress high-frequency components in the current, reduce the impact of harmonics on the system, and make the DC output more stable, thereby protecting backend equipment and improving the overall stability and reliability of the system. Usually used in industrial drive systems to improve power factor and protect sensitive components from voltage spikes. Welcome to customization!


1. Efficient filtering of high-frequency harmonics - utilizing the impedance characteristics of copper coils to prevent harmonic pollution
2. Smooth DC current - Suppress the pulsating components in the current to make the DC output smoother
3. Copper coil material - using high-purity copper winding, with excellent conductivity and stable long-term operation
4. Rated parameters - current rating of 200A, voltage rating of 600V
5. Improve system reliability - reduce equipment failure rate and extend service life through filtering and smoothing effects
6. The compact structure of the iron core and copper coil is relatively compact in volume, making it easy to install in electrical cabinets


2.Performance Characteristics

Feature Description
Brand ZHIXIANGYUAN
The rated current value 200A
The rated voltage value 300V
Applications Variable Frequency Drive (VFD),rectified power supply
DC Current Smoothing Smooths out current ripple, providing stable DC output and protecting downstream components such as capacitors and IGBT modules.
High-Purity Copper Coil Wound with high-conductivity copper wire, ensuring low power loss, minimal heat generation, and reliable long-term operation.

Copper Coil DC Reactor Filters Out High-frequency Harmonics, Smoothes DC Current 200A/600V 0

Copper Coil DC Reactor Filters Out High-frequency Harmonics, Smoothes DC Current 200A/600V 1

Copper Coil DC Reactor Filters Out High-frequency Harmonics, Smoothes DC Current 200A/600V 2

Copper Coil DC Reactor Filters Out High-frequency Harmonics, Smoothes DC Current 200A/600V 3

Copper Coil DC Reactor Filters Out High-frequency Harmonics, Smoothes DC Current 200A/600V 4

Copper Coil DC Reactor Filters Out High-frequency Harmonics, Smoothes DC Current 200A/600V 5

Copper Coil DC Reactor Filters Out High-frequency Harmonics, Smoothes DC Current 200A/600V 6Copper Coil DC Reactor Filters Out High-frequency Harmonics, Smoothes DC Current 200A/600V 7


3.Company Profile


Copper Coil DC Reactor Filters Out High-frequency Harmonics, Smoothes DC Current 200A/600V 8

Copper Coil DC Reactor Filters Out High-frequency Harmonics, Smoothes DC Current 200A/600V 9

Copper Coil DC Reactor Filters Out High-frequency Harmonics, Smoothes DC Current 200A/600V 10

Copper Coil DC Reactor Filters Out High-frequency Harmonics, Smoothes DC Current 200A/600V 11
