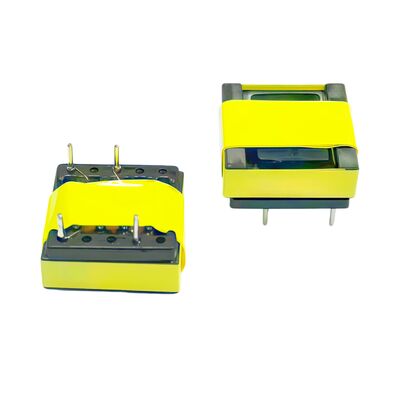

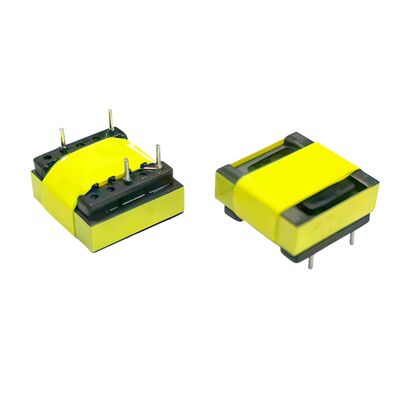

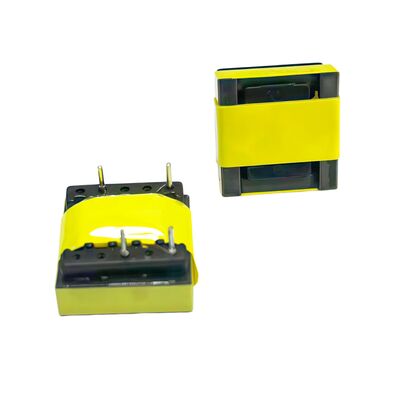

EPC13 High Frequency SMD Transformer with 4000VAC Isolation for Flyback Topology in AC-DC Power Supplies
  • name
  • name
  • name

EPC13 High Frequency SMD Transformer with 4000VAC Isolation for Flyback Topology in AC-DC Power Supplies

Brand Name: ZXY
Model Number: EPC13
MOQ: Negotiable
Price: Negotiable
Packaging Details: Carton
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen Guangdong
Certification:
RoHS、ISO9001、CE
Highlight:

EPC13 Ferrite Core High Frequency Transformer

,

4000VAC Isolation SMD Transformer

,

Flyback Topology Flyback Transformer

Product Description
EPC13 High Frequency Transformer SMD Transformer
Compact SMD transformer designed for AC-DC switching power supplies, specifically optimized for flyback topology in low-to-medium power applications (typically 3W-18W). Features EPC13 ferrite core with horizontal, low-profile construction for space-efficient PCB mounting.
Key Applications
  • Low-Power AC-DC Power Supplies: Compact power modules for consumer electronics, home appliances, and IoT devices
  • Auxiliary Power Supplies: Standby power for industrial control systems, PLCs, and automation equipment
  • LED Drivers: Constant current or constant voltage LED lighting drivers
  • Telecom and Networking Equipment: Power supplies for modems, routers, switches, and small-cell base stations
  • Industrial Control and Instrumentation: Isolated power for sensors, transmitters, and measurement devices
Performance Characteristics
Parameter Value / Description Key Advantage
Core Type EPC13 Ferrite Core Compact size with efficient magnetic flux distribution
Mounting Style Surface Mount (SMD) Enables automated PCB assembly and space-saving designs
Topology Optimized for Flyback Converters Ideal for low-to-medium power AC-DC and DC-DC applications
Power Handling Typical 3W to 18W (depending on design) Suitable for auxiliary and low-power supply requirements
Isolation Voltage 4000VAC (primary to secondary) Ensures safe operation in isolated power supplies
Operating Frequency 50kHz to 300kHz typical Compatible with modern switching power supply ICs
Output Voltage Options Customizable (e.g., 5V, 12V, 24V) Flexibility for various circuit designs
Winding Material High-Grade Copper Magnet Wire Low winding resistance for improved efficiency
Insulation System Class B (130°C) or Class F (155°C) Reliable performance under thermal stress
Safety Compliance Designed to meet RoHS, REACH Environmentally compliant for global markets
Operating Temperature -40°C to +125°C (typical) Stable performance across diverse environments
Product Images
EPC13 High Frequency SMD Transformer with 4000VAC Isolation for Flyback Topology in AC-DC Power Supplies 0 EPC13 High Frequency SMD Transformer with 4000VAC Isolation for Flyback Topology in AC-DC Power Supplies 1 EPC13 High Frequency SMD Transformer with 4000VAC Isolation for Flyback Topology in AC-DC Power Supplies 2 EPC13 High Frequency SMD Transformer with 4000VAC Isolation for Flyback Topology in AC-DC Power Supplies 3 EPC13 High Frequency SMD Transformer with 4000VAC Isolation for Flyback Topology in AC-DC Power Supplies 4 EPC13 High Frequency SMD Transformer with 4000VAC Isolation for Flyback Topology in AC-DC Power Supplies 5
Other Recommended Products
EPC13 High Frequency SMD Transformer with 4000VAC Isolation for Flyback Topology in AC-DC Power Supplies 6
Company Profile
EPC13 High Frequency SMD Transformer with 4000VAC Isolation for Flyback Topology in AC-DC Power Supplies 7 EPC13 High Frequency SMD Transformer with 4000VAC Isolation for Flyback Topology in AC-DC Power Supplies 8
Tags:
