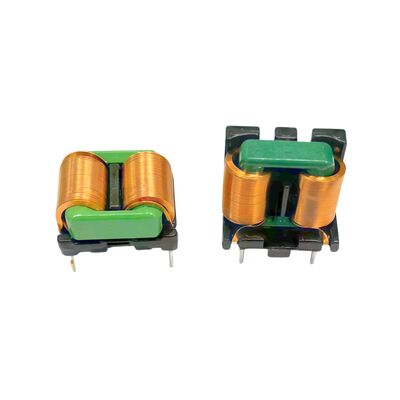

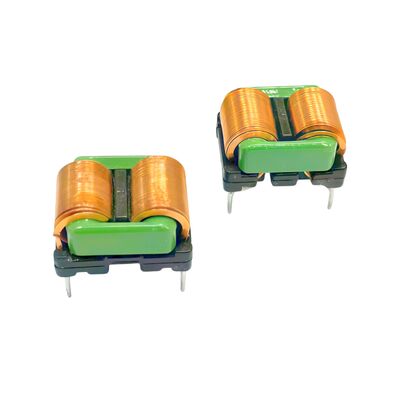

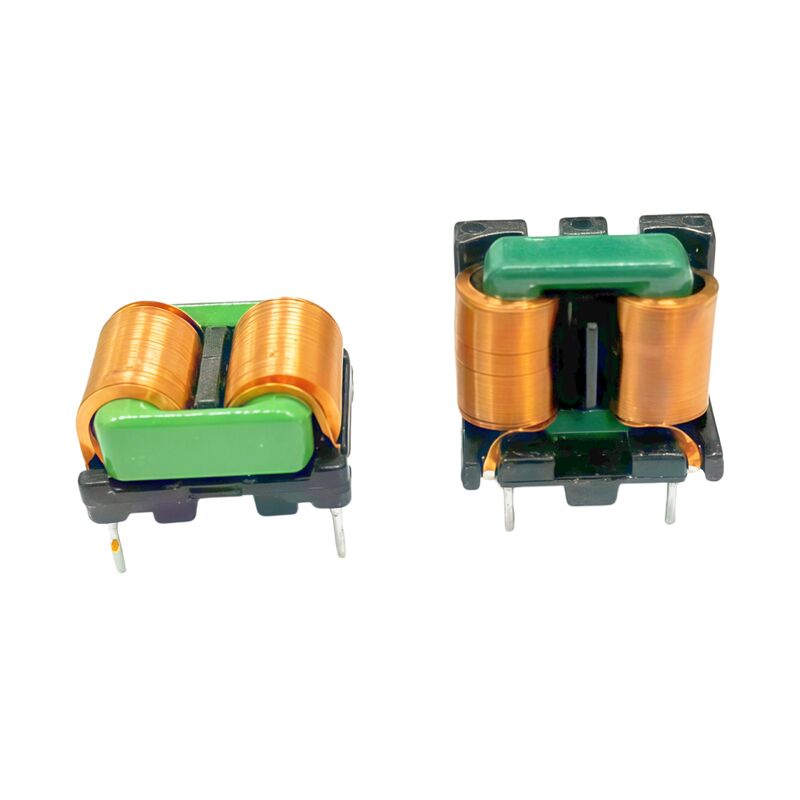

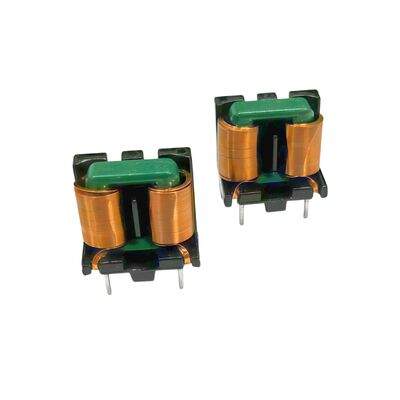

T1515-30MH High Power Common Mode Inductor 30mH High Inductance Flat Copper Wire

Brand Name:	ZXY
Model Number:	ZXY-T1515
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen Guangdong

Certification:

RoHS、ISO9001、CE

Highlight:

30mH High Inductance EMI Filter

Flat Copper Wire Common Mode Inductor

Horizontal and Vertical Mounting High Power Inductor

Product Description

T1515-30MH Horizontal and Vertical High Power Common Mode Conductor Flat Wire EMI Filter

Product Overview

The T1515-30MH is a high-power common mode inductor engineered for superior EMI filtering performance. Featuring a 30mH high inductance and flat copper wire winding, this component delivers lower DC resistance and enhanced heat dissipation compared to traditional round wire designs. With both horizontal (H) and vertical (V) installation options, it offers flexible adaptation to high-density PCB layouts. Ideal for high-power switching power supplies, photovoltaic inverters, and electric vehicle charging systems requiring effective electromagnetic interference suppression.

Application Scenarios

New Energy & Electric Vehicles: Car chargers for suppressing common mode electromagnetic interference during high-voltage battery charging; DC-DC converters for filtering high-frequency noise in vehicle voltage conversion modules; photovoltaic inverters for eliminating high-frequency interference in solar power generation systems.
Industrial & Power Electronics: High-power switching power supplies for electroplating, electrolysis, and industrial equipment; inverters in motor drive systems to reduce high-frequency harmonic pollution; uninterruptible power supplies to ensure clean power delivery.
Communication & Infrastructure: 5G base station power supplies for electromagnetic compatibility; server and data center power inlets for suppressing crosstalk between multiple power sources.
Household & Commercial Appliances: Variable frequency air conditioning/refrigeration systems for suppressing high-frequency interference; high-power charging stations for filtering ripple noise during charging processes.

Performance Characteristics

Feature Category	Specification / Performance	Technical Benefit
Electrical Specifications	Inductance: 30 mH (Minimum / Typical)	Provides high common mode impedance over wide frequency range, ensuring effective EMI noise suppression
Core Material	High-permeability Toroidal Core (e.g., Nanocrystalline / MnZn Ferrite)	Excellent magnetic flux containment; minimal leakage inductance and high saturation current resistance
Rated Current	[Value] A (Consult datasheet)	Designed for high-power applications; maintains inductance stability under full load
DC Resistance (DCR)	[Value] mΩ (Max)	Ultra-low DCR due to flat wire design minimizes conductive losses and improves overall efficiency
Rated Voltage	[Value] V AC/DC	Suitable for mains and high-voltage DC bus applications
Mechanical & Construction	Conductor Type: High-Strength Flat Copper Wire	Increased surface area compared to round wire; reduces skin and proximity effects at high frequencies
Mounting Style	Horizontal (H) & Vertical (V) Options	Flexible PCB layout options to optimize airflow and meet mechanical constraints
Base Material	UL 94V-0 Rated Plastic Base / Epoxy	Flame retardant and heat resistant, ensuring safety and reliability in high-temperature environments
Termination	Tin-plated Copper Pins / Direct Lead	Excellent solderability and strong mechanical retention on the PCB
Thermal & Environmental	Operating Temperature: -40°C ~ +125°C	Wide operating range suitable for automotive, industrial, and outdoor power equipment
Heat Dissipation	Optimized by Flat Wire Design	Larger surface area efficiently radiates heat, reducing hot spots and extending component life
Performance Data (Typical)	Impedance vs. Frequency: High impedance at common mode noise frequencies (100kHz ~ 30MHz+)	Provides targeted filtering for conducted EMI compliance with CISPR, FCC standards
Withstanding Voltage	[Value] V AC (Between windings)	Guarantees electrical isolation safety between phases
