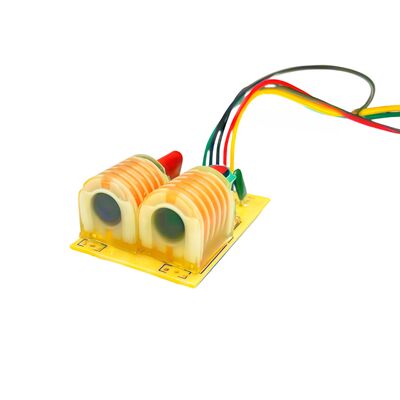

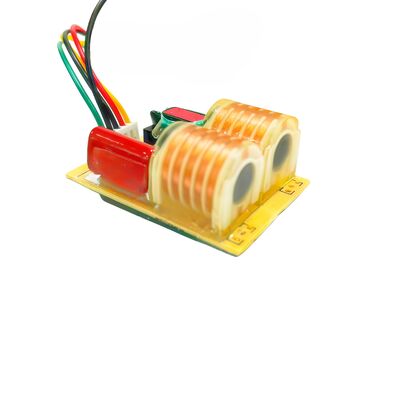

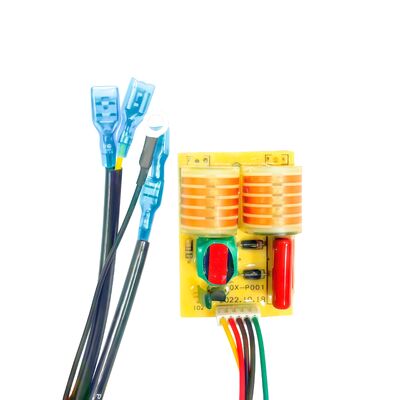

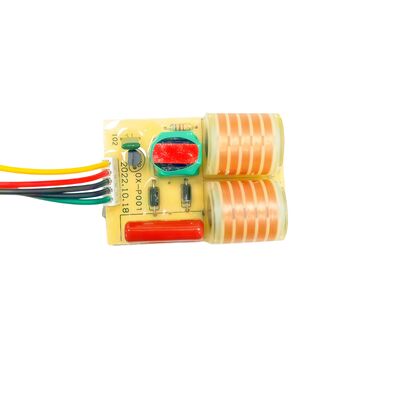

Customized 5-slot High-voltage Packaged Ignition Coil Transformer Module with Epoxy-Resin Encapsulation

Brand Name: ZXY
MOQ: Negotiable
Price: Negotiable
Packaging Details: Negotiable
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen Guangdong
Certification:
RoHS、ISO9001、CE
Highlight:

5-slot Ignition Coil Transformer

,

High-voltage Transformer Module

,

Epoxy-Resin Encapsulation Packaged Transformer

Product Description
Customized 5-slot High-voltage Packaged Ignition Coil Transformer Module
Introducing the Customized 5-slot High-voltage Packaged Ignition Coil Transformer Module—a compact and powerful solution designed for multi-cylinder engine applications and high-voltage DIY projects. Unlike standard single-output coils, this module integrates five high-tension towers into a single, rugged package, allowing for efficient sequential spark distribution in custom ignition systems. Built for reliability, it operates on a standard 12V input and is ideal for engine swaps, CDI (Capacitor Discharge Ignition) upgrades, or bench-top high-voltage experiments. Whether you're an automotive enthusiast or an electronics hobbyist, this plug-and-play module simplifies wiring while delivering consistent, high-energy sparks.
Main Application Areas
Automotive Engine Modification and ECU Control
This is the core application scenario of the module. For inline 5-cylinder engines (such as Audi/VAG 2.5 TFSI) or special modification projects that require independent ignition, the traditional single ignition coil occupies a large space and has complex wiring. This 5-slot module integrates all ignition coils into one package and directly connects to the ECU (engine control unit) through universal wiring terminals, achieving precise independent ignition control. This is particularly suitable for engine swaps, simplification of racing wiring harnesses, and modernization upgrades of ignition systems in classic car models.
Capacitive Discharge Ignition (CDI) System
This module is used as a high-voltage output stage in CDI systems for motorcycles, small engines, or high-performance racing cars. The CDI system first stores low voltage electricity in capacitors, and then releases it to the primary coil of the transformer at the moment of ignition. The secondary coil then induces high voltage electricity of 20kV-40kV, which ignites the corresponding cylinder mixture through five high voltage towers. This design has the characteristics of strong spark energy and fast rise time compared to traditional inductive ignition, especially suitable for high-speed engines.
Industrial Gas Engines and Generators
For fixed industrial engines (such as generators and compressors) that use natural gas, propane, or biogas, this module provides a stable high-pressure ignition source. Its packaging design has good vibration resistance and dust resistance, suitable for industrial environments with long-term continuous operation. Five independent output channels can ensure smooth combustion of multi cylinder gas engines, reduce emissions, and improve fuel efficiency.
High Voltage Physics Experiment and Educational Demonstration
In laboratory or teaching environments, this module can be used as a reliable high-voltage generator. Driven by a simple PWM (Pulse Width Modulation) signal or 555 timer circuit, it can generate visible arc discharge to the naked eye.
Automation Equipment and Special Machinery
In certain special industrial equipment, high voltage electricity is required to trigger other devices such as high voltage valves, electrostatic precipitators, or spark switches. As a standardized high-voltage transformer component, this module can be directly integrated into the control cabinet, using the 24V signal of the PLC (Programmable Logic Controller) to drive the solid-state relay, thereby controlling the module to generate high voltage for specific process flows.
Model and Drone Ignition Testing
For large aircraft models, drones, or crop protection machines using gasoline engines, this module can be used as an ignition component for ground testing or power kits. Its compact size and lightweight design (compared to multiple independent coils) help reduce the weight of the aircraft while ensuring precise ignition timing for dual or four cylinder gasoline model engines.
Performance Characteristics
Integrated Multi-Output Design
Combines 5 independent high-voltage outputs into a single compact module, eliminating the need for multiple individual coils and simplifying wiring harnesses.
High Energy Output
Capable of generating 30kV - 40kV (Kilovolts) per tower (depending on driver circuit), ensuring reliable ignition under high compression or demanding conditions.
Low Primary Resistance
Features low primary resistance (typically 1.5Ω - 3.0Ω) allowing for faster coil charging and higher energy delivery at high RPMs (Revolutions Per Minute).
Epoxy-Resin Encapsulation
Fully potted with high-dielectric epoxy resin, providing superior protection against vibration, moisture, dust, and high-voltage arcing (corona effect).
Compact & Rugged Packaging
Designed as a monolithic block, it offers significant space savings compared to traditional coil-on-plug setups, making it ideal for engine swaps and custom builds.
Plug-and-Play Integration
Standardized pin terminals allow for easy connection to aftermarket ECUs (Engine Control Units) or CDI (Capacitor Discharge Ignition) modules without complex modification.
High-Temperature Operation
Constructed with high-grade materials (PBT/PA66 housing) that withstand continuous exposure to under-hood temperatures (-40°C to +125°C).
Fast Rise Time
Optimized magnetic circuit design ensures a rapid voltage rise time, minimizing spark plug erosion and improving combustion efficiency.
