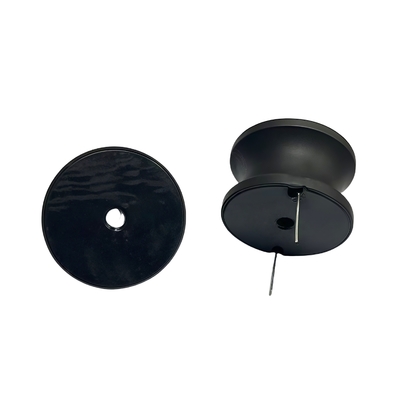

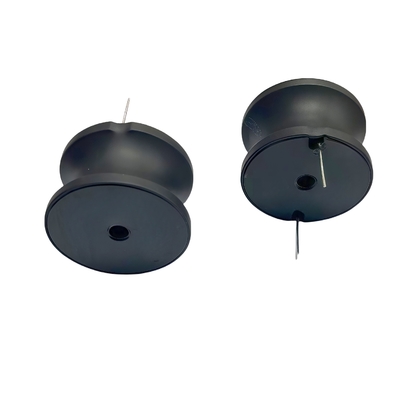

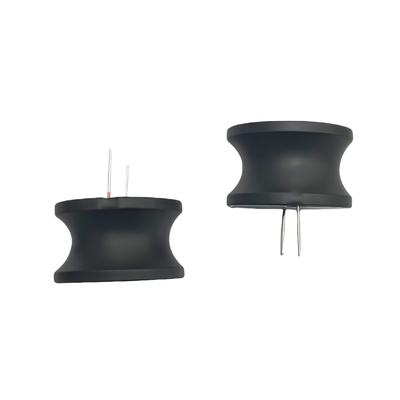

High Power I-beam Inductor Dr Magnetic Core Inductor Leaded Inductor Wire Wound

Brand Name:	ZXY
Model Number:	ZXY-402521*5
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Huizhou.China

Certification:

RoHS、ISO9001、CE

Product Keywords:

I-beam Inductor

Packaged:

As Your Request

Magnetic Core:

Wire Wound

Strong Point:

High Reliability

Inductance:

Customized

Item Weight:

Highlight:

Leaded Wire Wound Magnetic Core Inductor

High Power I-beam Wire Wound

Product Description

High Power I-beam Inductor Dr Magnetic Core Inductor Leaded Inductor Wire Wound

1.Product Description

With deep technical accumulation and customized service advantages, Zhixiangyuan factory creates exclusive High Power I-beam Inductor Dr Magnetic Core Inductor Leaded Inductor Wire Wound with its craftsmanship! We customize our products according to customers' requirements, from the selection of Dr core material, to the specifications of the winding wire, to the design of the lead wire. The I-beam core structure combined with the high performance Dr core gives it a high saturation flux density and low loss characteristics, which can easily cope with high frequency and high current working conditions. The precision winding process combined with high quality wires effectively reduces the DC resistance, improves the efficiency of the inductor, and reduces the heat generation. Unique pin design facilitates soldering and installation, and is suitable for a variety of PCB layouts. Whether it is switching power supply, new energy vehicle charging pile, or industrial motor drive and other high-power scenarios, Zhixiangyuan's customized inductors will provide stable and efficient power support for your project with excellent power carrying capacity and reliable performance!

FEATURES:

1.Wire-wound Construction

2.Polyolefin Shrink Tubing

3.Excellent heat resistance

4.Excellent environmental characteristics

5.High reliability

2.Performance Characteristics

Performance Features	Descriptions
High - Saturation Magnetic Core	The Dr magnetic core offers high saturation flux density, enabling the inductor to handle large currents without magnetic saturation, ensuring stable operation under high - power conditions.
Low Core Loss	With excellent magnetic properties, the Dr core minimizes hysteresis and eddy - current losses, contributing to high - efficiency power conversion and reduced heat generation.
High - Quality Wire Winding	Utilizes premium - grade wires wound precisely to reduce DC resistance, enhancing the inductor's efficiency and power - handling capacity.
High Power Handling	Specifically designed for high - power applications, it can withstand high - frequency, high - current operations, making it ideal for switch - mode power supplies, electric vehicle chargers, and industrial motor drives.
Leaded Design for Easy Installation	The leaded structure allows for straightforward soldering onto PCBs, providing flexibility in circuit layout and ensuring reliable electrical connections.
I - beam Structure Advantage	The I - beam shape optimizes the magnetic field distribution, reducing magnetic leakage and improving magnetic coupling efficiency, thus enhancing overall performance.
Stable Inductance Value	Maintains a consistent inductance value even under varying load and frequency conditions, ensuring stable electrical characteristics for the circuit.
Wide Operating Temperature Range	Capable of operating reliably in a broad temperature range, from - 40℃ to 125℃, making it suitable for both harsh industrial environments and high - performance electronic devices.

High Power I-beam Inductor Dr Magnetic Core Inductor Leaded Inductor Wire Wound 0
