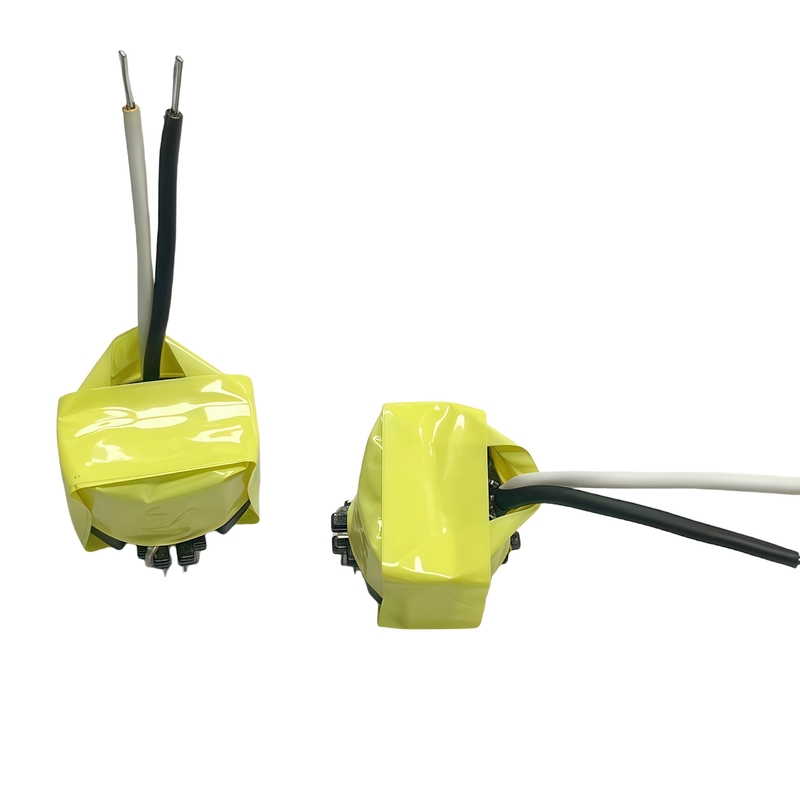

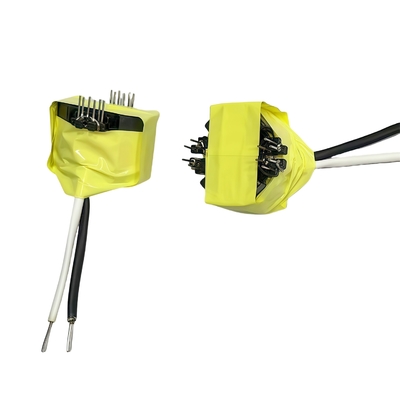

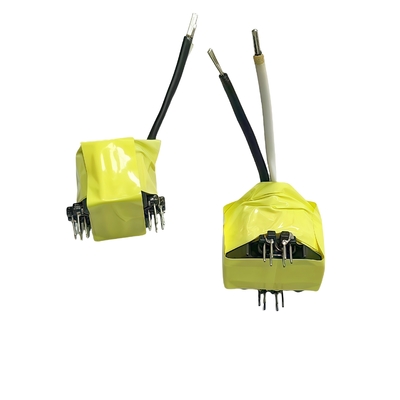

RM Type Vertial Ferrite Core RM10 Wiring High Frequency Transformer 6+6 Pins

Brand Name: ZXY
Model Number: ZXY-RM10
MOQ: Negotiable
Price: Negotiable
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China,Shenzhen City.
Certification:
RoHS、ISO9001、CE
Product Keyword:
RM10 High Frequency Transformer
Form Factor:
Vertical
Number Of Pins:
6+6 Pins
Lead Way:
Pin Or Electronic Wire
Functionality:
Voltage Conversion Function
Voltage:
Customized
Highlight:

6+6 Pins High Frequency Transformer

,

Wiring High Frequency Transformer

,

RM10 High Frequency Transformer

Product Description

RM Type Vertial Ferrite Core RM10 Wiring High Frequency Transformer 6+6 Pins

1.Product Description

RM10 high-frequency transformer is a commonly used power transformer, widely evaluated in switch mode power supplies and power electronic devices. The framework design layout can operate at higher frequencies and is typically used for efficient voltage conversion and isolation circuits. The RM10 transformer is made of high-quality materials with low losses and comparable temperature characteristics, ensuring good performance during high-frequency operation. In addition, the compact size and lightweight characteristics are ideal for applications that occupy limited space. This type of transformer is widely used in computer power supplies, communication equipment, and related electronics.

Characteristics of magnetic circuit structure:

1.Closed magnetic circuit: The RM10 transformer adopts a tank shaped magnetic core structure, which can provide a closed magnetic circuit and greatly reduce leakage. The reduction of magnetic leakage not only improves the efficiency of the transformer, but also reduces electromagnetic interference to surrounding electronic components, improving the stability and reliability of the equipment.


2.Center pillar structure: Its center pillar can be wound with more turns, which helps to improve the inductance and transformation ratio accuracy of the transformer, and can better meet the precise requirements of different circuits for voltage transformation.



2.Product Advantages

Advantages Details
Technical Expertise The production team consists of highly skilled technicians with in - depth knowledge of RM10 high frequency transformer design and manufacturing. They have years of experience in dealing with complex winding techniques, ensuring precise turns ratio and optimal inductance values.Our team keeps up with the latest technological advancements in the field, enabling the use of advanced materials and innovative manufacturing processes. For example, they are proficient in using high - quality magnetic core materials with excellent magnetic properties at high frequencies, reducing core losses and improving overall transformer efficiency.
Production Efficiency With a dedicated production line for RM10 high - frequency transformers, the team can streamline the manufacturing process. From raw material procurement to the final product assembly, each step is optimized for maximum efficiency, resulting in shorter production lead times.The team is well - trained in lean manufacturing principles, minimizing waste and maximizing productivity. This allows for high - volume production without sacrificing quality, meeting the market's demand promptly.
Quality Control Our production team implements a rigorous quality control system at every stage of the manufacturing process. From incoming inspection of raw materials to in - process checks during winding, soldering, and assembly, and finally, comprehensive final product testing, we ensure that each RM10 high frequency transformer meets the highest quality standards.Advanced testing equipment is used, such as LCR meters for measuring inductance, capacitance, and resistance, and high - voltage testers for insulation testing. This guarantees that the transformers have stable electrical performance, low leakage inductance, and high insulation resistance.
Customization Ability Understanding that different customers have diverse requirements, our production team has strong customization capabilities. Whether it's a specific turns ratio, voltage output, or physical size, the team can design and manufacture RM10 high frequency transformers tailored to meet individual customer needs.Close communication with the R & D and sales teams enables the production team to quickly understand customer specifications and translate them into practical production plans, providing personalized solutions in a timely manner.
Cost - effectiveness Through continuous process improvement and economies of scale achieved by high - volume production, our production team can offer cost - effective RM10 high frequency transformers. By optimizing material usage and reducing production waste, we can lower production costs without compromising on quality.Long - term relationships with reliable suppliers also help in obtaining raw materials at competitive prices, further contributing to cost savings that can be passed on to customers.



RM Type Vertial Ferrite Core RM10 Wiring High Frequency Transformer 6+6 Pins 0RM Type Vertial Ferrite Core RM10 Wiring High Frequency Transformer 6+6 Pins 1RM Type Vertial Ferrite Core RM10 Wiring High Frequency Transformer 6+6 Pins 2RM Type Vertial Ferrite Core RM10 Wiring High Frequency Transformer 6+6 Pins 3RM Type Vertial Ferrite Core RM10 Wiring High Frequency Transformer 6+6 Pins 4RM Type Vertial Ferrite Core RM10 Wiring High Frequency Transformer 6+6 Pins 5



3.Other Recommended Produtcs

RM Type Vertial Ferrite Core RM10 Wiring High Frequency Transformer 6+6 Pins 6
