High Frequency Transformer

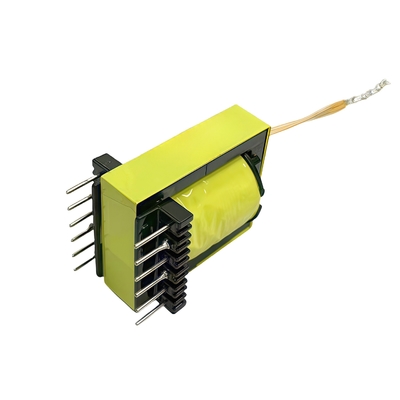

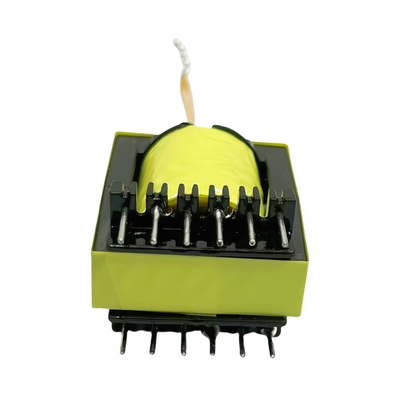

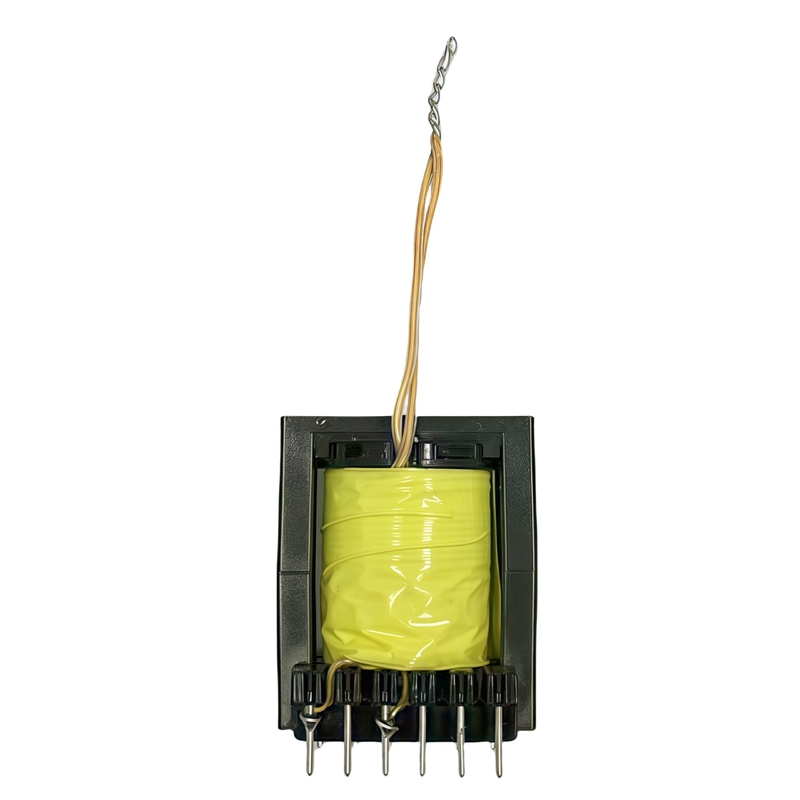

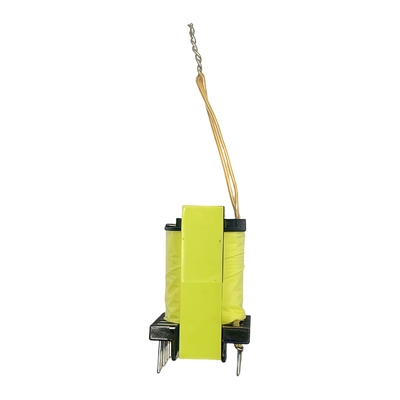

High Voltage Winding EC35 High Frequency Transformer for Electronic Circuit

All Category

Chip Inductor

Ms. Chen

rhea@zxycoil.com

+8613554723725

Contact Now

High Voltage Winding EC35 High Frequency Transformer for Electronic Circuit

Brand Name:	ZXY
Model Number:	ZXY-EC35
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China,Shenzhen City.

Certification:

RoHS、ISO9001、CE

Model Number:

ZXY-EC35

Name:

EC35 High Frequency Transformer

Benefits:

Excellent Power Handling Capacity

Form Factor:

Vertical

Core Structure:

EC Core

Coil Number:

AUTOTRANSFORMER

Highlight:

High Voltage Winding High Frequency Transformer

Electronic Circuit High Frequency Transformer

EC35 High Frequency Transformer

Product Description

High Voltage Winding EC35 High Frequency Transformer for Electronic Circuit

1.Product Description

The EC35 High Frequency Transformer is a compact yet powerful component widely used in diverse applications. With a working frequency range typically spanning from 20 kHz to 500 kHz, it's designed to handle high - speed electrical signals efficiently. This transformer often features a compact E - shaped core structure, which contributes to its relatively small footprint while maintaining good magnetic coupling capabilities. It can be configured to meet various voltage requirements, with input and output voltages customized according to specific needs. In terms of power handling, it's suitable for applications with power levels ranging from a few watts up to several hundred watts. It has found extensive use in areas like industrial power supplies, where it helps convert and regulate high - frequency electrical power for machinery; in communication power transformers, ensuring stable power for telecom equipment; and in PC power transformers, playing a crucial role in providing the right power to different components within a computer. Additionally, it offers high efficiency, often exceeding 95%, reducing energy waste and operating costs. Its high - temperature resistance allows it to function reliably within an operating temperature range from - 40 ℃ to + 125 ℃, making it adaptable to a wide range of environmental conditions. With the ability to provide high isolation strength, it effectively separates different electrical circuits, enhancing safety and performance. And for those with unique requirements, custom designs are available, making the EC35 High Frequency Transformer a versatile choice for modern electrical and electronic systems.

2.Performance Characteristics

Performance Feature	Description
High - Frequency Operation	Operates within a frequency range typically from 20 kHz to 500 kHz, enabling efficient handling of high - speed electrical signals. This makes it suitable for applications where rapid voltage transformation and signal processing are required, such as in high - frequency power supplies and communication systems.
Power - Handling Capacity	Can handle power levels ranging from a few watts up to several hundred watts. Its ability to manage different power requirements allows for its use in a wide variety of applications, from small - scale electronic devices to larger industrial equipment.
Compact Size	Features a compact E - shaped core structure, which results in a relatively small footprint. Despite its small size, it maintains good magnetic coupling capabilities, making it ideal for applications where space is limited, such as in portable electronic devices and miniaturized power supplies.
High Efficiency	Often achieves an efficiency of over 95%, minimizing energy losses during operation. This high - efficiency characteristic not only reduces power consumption but also helps in reducing heat generation, leading to more reliable and cost - effective operation.
High - Temperature Resistance	Can operate within a temperature range from - 40 ℃ to + 125 ℃. The materials used in its construction, including the magnetic core and insulation materials, are selected to withstand high temperatures, ensuring stable performance even in harsh environmental conditions.
High Isolation Strength	Provides high isolation between the primary and secondary windings, effectively separating different electrical circuits. This isolation helps in preventing electrical interference and short - circuits, enhancing the safety and performance of the overall electrical system.
Customizable Design	Allows for custom designs to meet specific application requirements. Whether it's adjusting the input and output voltages, modifying the winding configuration, or optimizing the transformer for a particular operating environment, the EC35 High Frequency Transformer can be tailored to suit diverse needs.
