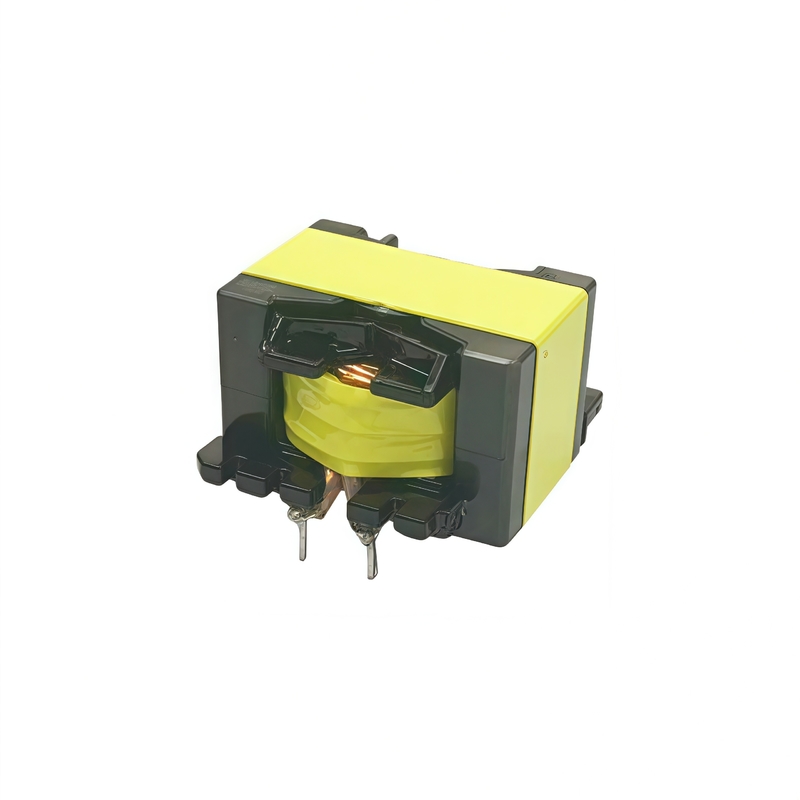

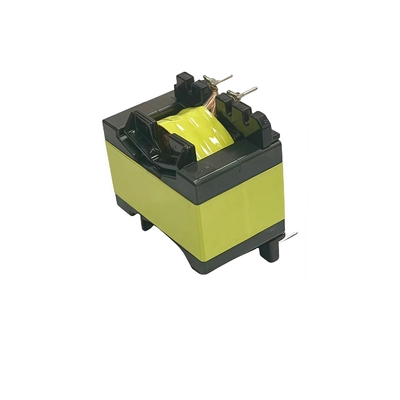

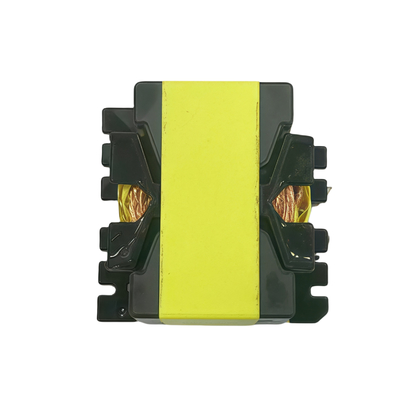

PCB Mounting SMPS Customized Compact PQ3220 High Frequency Transformer

All Category

Chip Inductor

Ms. Chen

rhea@zxycoil.com

+8613554723725

Contact Now

PCB Mounting SMPS Customized Compact PQ3220 High Frequency Transformer

Brand Name:	ZXY
Model Number:	ZXY-PQ3220
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China,Shenzhen City.

Certification:

RoHS、ISO9001、CE

Keywords:

PQ3220 High Frequency Transformer

Operating Temperature:

-40℃ To +180℃

Store Humidity:

30 To 95%

Pattern:

Vertical

Overall Structure:

Horizontal Type

Core Structure:

PQ Type

Highlight:

PCB Mounting High Frequency Transformer

PQ3220 High Frequency Transformer

Customized Compact High Frequency Transformer

Product Description

PCB Mounting SMPS Customized Compact PQ3220 High Frequency Transformer

1.Product Description

The PQ3220 High Frequency Transformer is a widely - used and high - performance electronic component. Its core is designed to meet the demands of high - frequency applications, often crafted from materials like high - quality ferrite. This construction enables it to operate efficiently within a frequency range of 20kHz - 500kHz.
Featuring a compact yet robust structure, the PQ3220 can handle output powers spanning from 10 to 1000 W, making it suitable for a diverse range of applications. It exhibits excellent performance in terms of power conversion efficiency, minimizing energy losses during operation. With a working temperature range from - 40℃ to + 180℃ and storage temperature from - 25℃ to + 85℃, it demonstrates remarkable adaptability to different environmental conditions.
This transformer has several distinct advantages. It offers low leakage magnetic flux and small losses, which is crucial for maintaining stable power output and reducing unnecessary energy waste. Its good magnetic shielding and strong anti - interference capabilities ensure reliable operation even in complex electromagnetic environments.
PQ3220 High Frequency Transformers are extensively applied in various fields. They are commonly found in power converters, where they play a key role in stepping up or stepping down voltages. In power adapters, such as those for laptops and mobile devices, they efficiently convert input power to the appropriate output levels. They are also integral to frequency converters, LED drivers, communication equipment, and power tools, contributing to the smooth operation of these high - frequency circuits. Their compact size and high - power - handling capacity make them an ideal choice for applications where space is limited but substantial power is required.

2.Performance Characteristics

Performance Characteristic	Description
Core Design	The core of PQ3220 is designed for high - frequency applications. It is usually made of high - quality ferrite, which allows the transformer to operate efficiently within the 20kHz - 500kHz frequency range, ensuring stable performance in high - frequency circuits.
Power - Handling Capacity	With a compact and robust structure, it can manage output powers from 10 to 1000 W. This wide power - handling range makes it suitable for diverse applications, whether it's powering small - scale electronic devices or high - power industrial equipment.
Power Conversion Efficiency	Exhibits excellent power conversion efficiency, minimizing energy losses during operation. This not only saves energy but also contributes to the long - term stability and cost - effectiveness of the power - using systems where it is applied.
Temperature Adaptability	Has a wide working temperature range from - 40℃ to + 180℃ and a storage temperature range from - 25℃ to + 85℃. This remarkable adaptability enables it to function properly in various harsh environmental conditions, from extremely cold to very hot environments.
Magnetic Performance	Features low leakage magnetic flux and small losses. Low leakage magnetic flux helps maintain stable power output, while small losses reduce unnecessary energy waste. Additionally, it has good magnetic shielding and strong anti - interference capabilities, ensuring reliable operation even in complex electromagnetic environments full of interference signals.

PCB Mounting SMPS Customized Compact PQ3220 High Frequency Transformer 0

3.Other Recommended Produtcs

Product Name	TYPE	Detailed Type
High frequency transformers	EE	EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85
	EC/ER	ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49
	ETD	ETD29, ETD35, ETD40, ETD49
	EF	EF16, EF20, EF25
	EFD	EFD15, EFD20/21, EFD25/26, EFD30
	EDR	EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008
	EP	EP7, EP10, EP13
	EPC	EPC11.5, EPC13, EPC19, EPC25
	EQ	EQ2512, EQ2610, EQ3209, EQ4013,
	POT	POT3016, POT3930
	PQ	PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49
	RM	RM6, RM8, RM10, RM12, RM14
