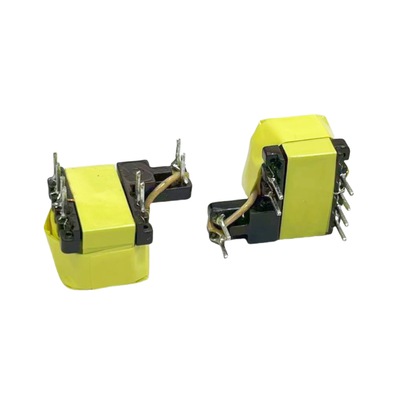

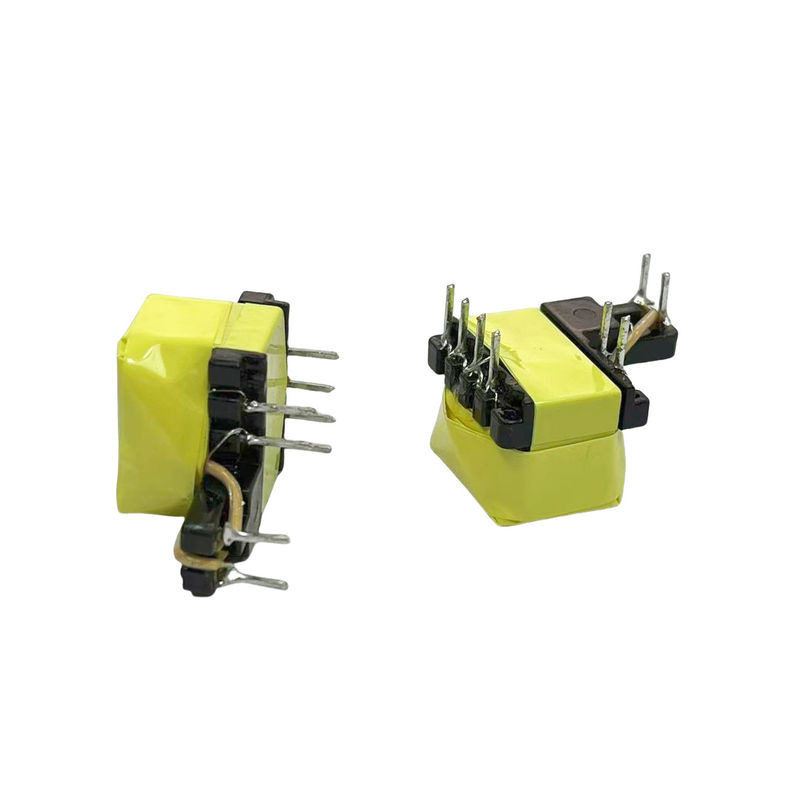

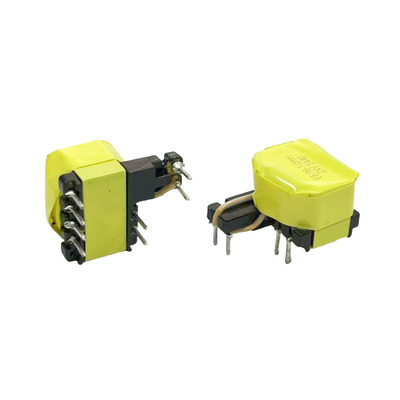

Name: ZXY2240 EE16 High Frequency Power Transformer EE core transformer 1mH
Brand: Shenzhen Zhixiangyuan Electronics Co., Ltd.
SKU: ZXY-EE16
Price: 14.08 USD
Availability: InStock

Brand Name:	ZXY
Model Number:	ZXY-EE16
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO9001、CE

Highlights:

EE16 High Frequency Power Transformer EE Core Transformer

Magnetic Core:

EE Type

Number Of Pins:

Feature:

High Security

Form Factor:

Lightweight

Place Of Origin:

Huizhou.China

Highlight:

1mH High Frequency Power Transformer

Customized High Frequency Power Transformer

EE16 High Frequency Power Transformer

Product Description

ZXY2240 EE16 High Frequency Power Transformer EE transformer 1mH

1.Product Description

1. Operating Frequency: The EE16 High Frequency Power Transformer has an operating frequency range of 20kHz to 500kHz, which makes it suitable for a wide range of high frequency applications.

2. Output Power: Its output power ranges from 0.5W to 15W, making it suitable for low power electronic devices.

3. Operating Temperature: The EE16 High Frequency Power Transformer has an operating temperature range of -40°C to +125°C, which shows good thermal stability.

4. Storage conditions: When stored, it maintains stable performance over a temperature range of -25°C to +85°C and a humidity range of 30% to 95%.

2.Advantages

EE Core Transformer Benefits	High Efficiency
	Low loss
	Compact size
	Light weight
	Thermal stability
	High reliability

3.Other Recommended Produtcs

Product Name

TYPE

Detailed Type

High frequency transformers

EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85

EC/ER

ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49

ETD

ETD29, ETD35, ETD40, ETD49

EF16, EF20, EF25

EFD

EFD15, EFD20/21, EFD25/26, EFD30

EDR

EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008

EP7, EP10, EP13

EPC

EPC11.5, EPC13, EPC19, EPC25

EQ2512, EQ2610, EQ3209, EQ4013,

POT

POT3016, POT3930

PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49

RM6, RM8, RM10, RM12, RM14

4.FAQ

Q1: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.

Q2: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

Q3: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.

Q4: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

5.Company Profile

ZXY2240 EE16 High Frequency Power Transformer EE core transformer 1mH 3
