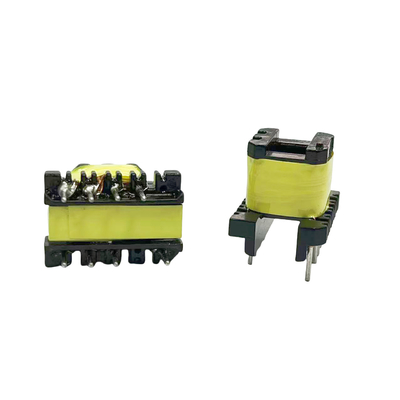

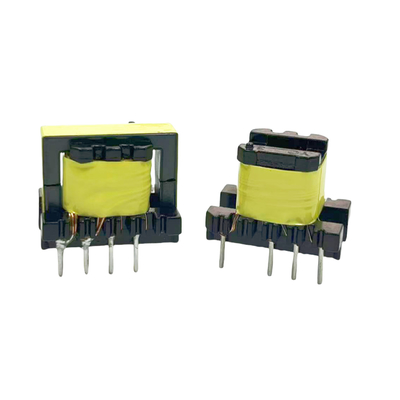

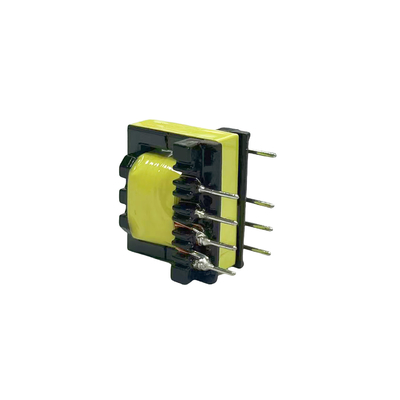

High Frequency Core Transformer Vertical EE22 4+4 For LED Power Supplies

Brand Name:	ZXY
Model Number:	ZXY-EE22
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO9001、CE

Core Material:

Ferrite Core

Size:

21.6*15.58*17.9MM

Number Of Pins:

Highlights:

EE22 High Frequency Core Transformer

Parameter:

Customized

Place Of Origin:

Huizhou.China

Type:

High Frequency Transformer

Weight:

0.012KG

Highlight:

LED Power Supplies High Frequency Transformer

4+4 High Frequency Transformer

Vertical EE22 High Frequency Transformer

Product Description

High Frequency Core Transformer Vertical EE22 4+4 For LED Power Supplies

1.Product Description

EE22 High Frequency Core Transformer working principle:

1. Electromagnetic induction: When AC current is passed in the primary winding, AC magnetic flux will be generated in the magnetic core according to the principle of electromagnetic induction. This AC magnetic flux will generate an induced electromotive force in the secondary winding, thus realizing the transmission of electrical energy.

2. Voltage conversion: By adjusting the turns ratio of the primary and secondary windings, the voltage can be raised or lowered. The turns ratio is equal to the ratio of input voltage to output voltage, so the output voltage can be adjusted by changing the turns ratio.

3. High Frequency Characteristics: Since the EE22 High Frequency Core Transformer has a high operating frequency, usually between 20kHz and 500kHz, it is able to realize high-efficiency power transmission. At the same time, the high-frequency characteristics also enable the transformer to reduce size and weight, improving the integration and portability of the device.

2.Product Basic Components:

EE22 High Frequency Core Transformer basic components:

EE22 High Frequency Core Transformer usually consists of a magnetic core and a coil. The coil has two or more windings, in which the winding connected to the power supply is called the primary winding, and the rest of the winding is called the secondary winding. The core material is generally characterized by high permeability, low loss and thermal stability, and commonly used core materials include ferrite.

3.Company Profile

High Frequency Core Transformer Vertical EE22 4+4 For LED Power Supplies 3

4.Our Service

1. 100% test before shipment
2.Provide free samples
3.Provide new design for customers

Customized.
1. inductance;

2. input voltage and output voltage, output current.

3. turns of ratio ;

4. packing method.

5.Mounting Dimensions

6.Safety Requirements

7.Product Applications

The price of a product is mainly determined by the product parameters, the complexity of the product process, the raw material and the batch

size.

5.Other Recommended Produtcs

Specifications

EE22 transformer

Product material

Magnetic core/Bakelite frame/enamelled copper wire

All types:

NO.

Product Name

TYPE

Detailed Type

High frequency transformers

EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85

EC/ER

ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49

ETD

ETD29, ETD35, ETD40, ETD49

EF16, EF20, EF25

EFD

EFD15, EFD20/21, EFD25/26, EFD30

EDR

EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008

EP7, EP10, EP13

EPC

EPC11.5, EPC13, EPC19, EPC25

EQ2512, EQ2610, EQ3209, EQ4013,

POT

POT3016, POT3930

PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49

RM6, RM8, RM10, RM12, RM14

Common mode chokes(Line filters)

Bobbin

EE8.3, EE12, EE19, EE25

UU9.8, UU10.5, UU16

ET20, ET24, ET28, ET35

SQ1212, SQ1515, SQ2418

FT20-22, FT20-21, FT20-15, FT20-13, FT20-10

Toroidal

6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 25X15X13, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Ferrite core); 16X10X6, 20X12.5X8, 25X16X10, 30X20X10, 30X20X15, 40X25X15, 50X40X20, 63X50X25, 80X63X25, 100X80X25, 130X100X25(Nanocrystalline core)

Inductors(Choke coils)

Peaking/Drum

4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20

Toroidal

6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16

Rod

3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30

Bobbin

EE8.3, EE10, EE13, EE16, EER(PFC)

SMD power inductors

Unshielded

MT, MTQ, MTF, MTG

Shielded

MTH, MTHII, MTP, MTB, MTE, MTL, MTF

Low frequency transformers

EI14, EI16,EI19, EI24,EI28, EI30, EI35, EI38.5, EI41,EI48, EI57, EI60, EI66, EI74, EI76, EI86, EI96, EI105, EI114

6.FAQ

Q1: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.

Q2: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

Q3: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.

Q4: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.
