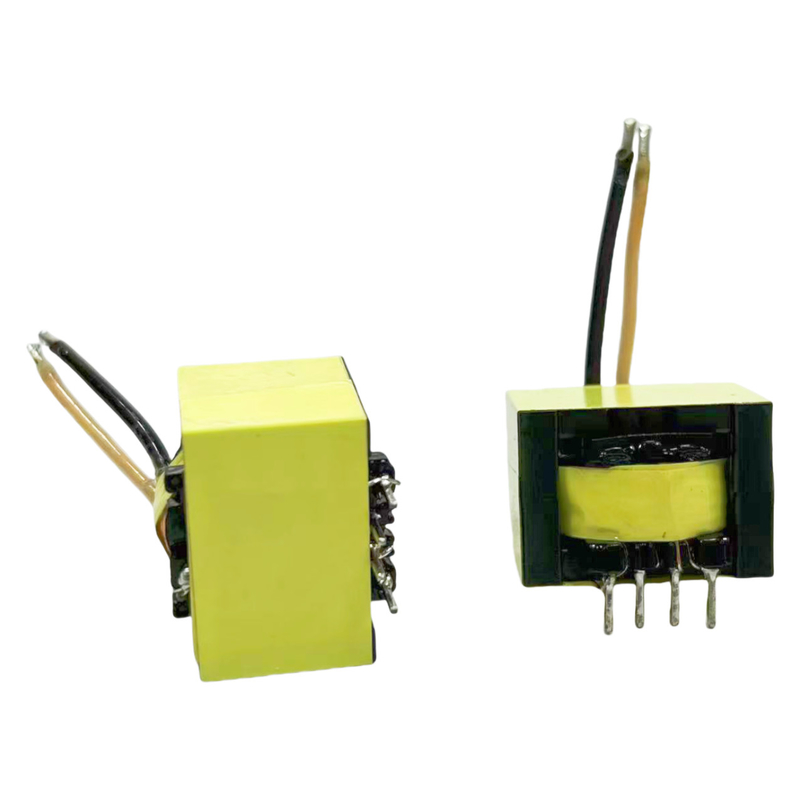

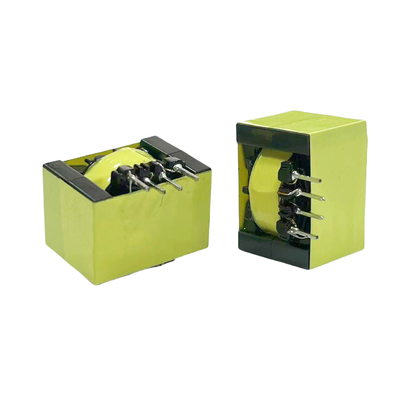

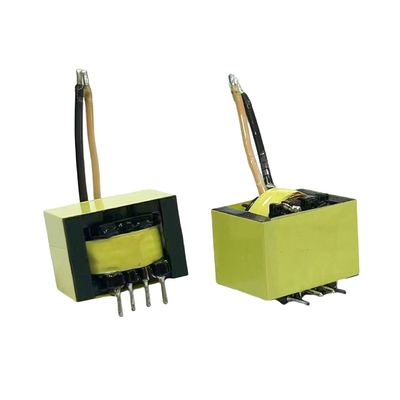

High Frequency Current Transformer Wiring With Pins PQ2014 For Charging

Brand Name:	ZXY
Model Number:	ZXY-PQ2014
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS、ISO9001、CE

Keywords:

PQ2014 High Frequency Current Transformer

Type:

Input/Output Voltage:

Customized

Supplier:

Manufacturer

Wire Material:

Copper

Core Material:

Ferrite Cores

Shape:

Vertical

Applications:

Fast Charging

Number Of Pins:

Place Of Origin:

Huizhou.China

Highlight:

Vertical Ferrite Cores Smps Transformer

PQ2014 High Frequency Transformers

Fast Charging High Frequency Transformers

Product Description

High Frequency Current Transformer Wiring With Pins PQ2014 For Charging

1.Product Description

The “PQ” in PQ2014 transformers stands for the shape of the iron core, i.e., the alternating arrangement of P and Q shapes. This core shape is commonly used in high frequency transformers and inductors.

2.Application

PQ2014 High Frequency Transformers commonly used in high-frequency transformers and inductors.PQ-type transformers are characterized by high efficiency, stability and energy saving, and occupy an important position in electronic equipment. It can flexibly adjust the output voltage according to the actual demand, meet the voltage requirements of different electronic equipment, and keep the output current stable, effectively isolate the input and output circuits to ensure the safety of the equipment.

Electronic equipment	computers, communication equipment, household appliances, etc
Industrial automation	wide-bandwidth amplifiers, AC/DC machines and aerospace, etc
High requirements for voltage stability	broadband amplifiers, AC/DC machines and aerospace
Power electronics equipment	Inverters, power amplifiers, frequency converters, etc.

3.Other Recommended Produtcs

NO.

Product Name

TYPE

Detailed Type

High frequency transformers

EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85

EC/ER

ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49

ETD

ETD29, ETD35, ETD40, ETD49

EF16, EF20, EF25

EFD

EFD15, EFD20/21, EFD25/26, EFD30

EDR

EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008

EP7, EP10, EP13

EPC

EPC11.5, EPC13, EPC19, EPC25

EQ2512, EQ2610, EQ3209, EQ4013,

POT

POT3016, POT3930

PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49

RM6, RM8, RM10, RM12, RM14

4.FAQ

Q1: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.

Q2: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

Q3: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.

Q4: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

5.Customized

1. inductance;

2. input voltage and output voltage, output current.

3. turns of ratio ;

4. packing method.

5.Mounting Dimensions

6.Safety Requirements

7.Product Applications

The price of a product is mainly determined by the product parameters, the complexity of the product process, the raw material and the batch size.

6.Company Profile

High Frequency Current Transformer Wiring With Pins PQ2014 For Charging 5
