ZXY2207 10K:600 Audio Isolator with High Reducibility and Electrical Isolation for Common Ground Signal Integrity

Brand Name: ZXY
Model Number: ZXY2207 10K:600
MOQ: Negotiable
Price: Negotiable
Packaging Details: 100pieces / Carton; Size:380mm*325mm*345mm
Payment Terms: T/T,paypal transfer
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS,ISO9001,CE
Model Number:
ZXY2207 10K:600
Product Name:
2207 10K:600 Audio Isolator
Usage:
Radio Station
Characterization:
Electrical Isolation Characteristics
Strong Point:
Improve Audio Signal Quality
Supplier:
Manufacturer
Supply Ability:
1000K-pcs/month
Highlight:

Audio Common Ground Isolator

,

High Reducibility Audio Isolator

Product Description
ZXY2207 10K:600 Audio Isolator - High Reducibility Audio Common Ground Isolator
The ZXY2207 10K:600 Audio Isolator is a professional-grade audio signal processing component designed for electrical isolation while maintaining signal integrity. This device features a 10,000 ohm to 600 ohm impedance conversion ratio, enabling optimal matching between audio equipment with different impedance characteristics.
Product Overview
This audio isolator is engineered to provide electrical isolation between audio devices while ensuring efficient signal transmission. The specific 10K:600 impedance ratio design facilitates seamless connectivity between high-impedance audio sources and low-impedance loads, minimizing signal loss and distortion.
  • Impedance Matching: 10K primary winding interfaces with high-impedance sources, while 600 ohm secondary winding connects to low-impedance loads
  • Signal Optimization: Reduces signal reflection and ensures maximum power transmission between mismatched devices
  • Electrical Isolation: Provides complete galvanic isolation between connected audio equipment
Working Principle
The audio isolator operates on electromagnetic induction and impedance transformation principles to achieve optimal signal transmission and electrical isolation.
  • Electromagnetic Induction: Primary winding generates magnetic field, secondary winding produces induced electromotive force
  • Electrical Isolation: Complete separation of input and output circuits prevents ground loops and electrical interference
  • Impedance Transformation: Specific 10K:600 ratio optimizes voltage and current relationships for different impedance environments
Technical Specifications
Electrical Characteristic Details
Impedance Ratio Primary: 10,000 ohms (10K) | Secondary: 600 ohms
Frequency Response 20 Hz to 20 kHz (±0.5 dB deviation)
Insertion Loss 0.5 - 1 dB
Product Gallery

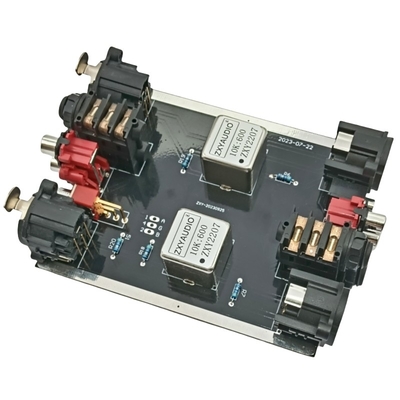

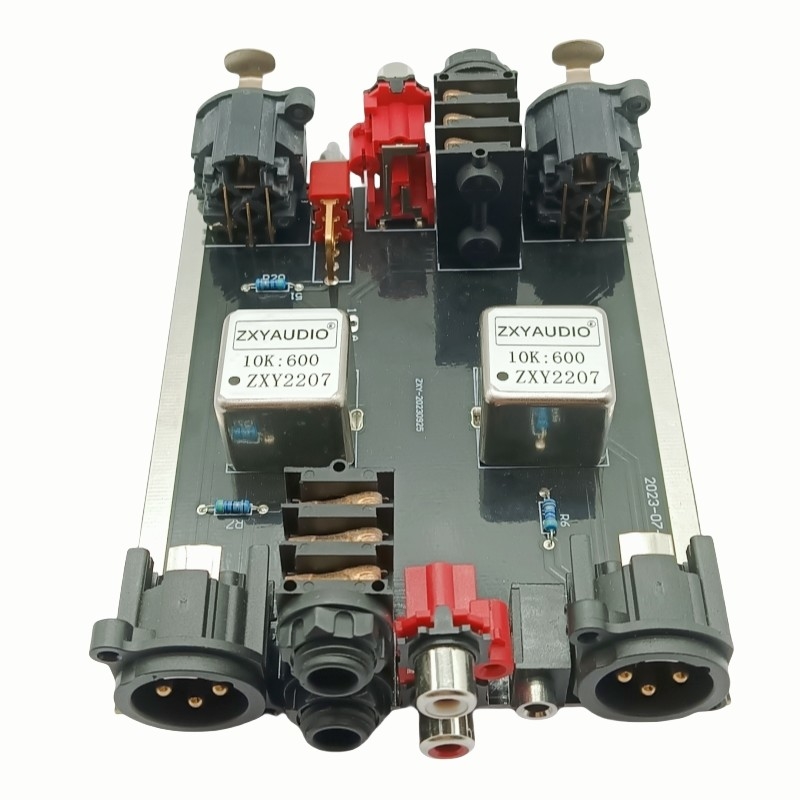

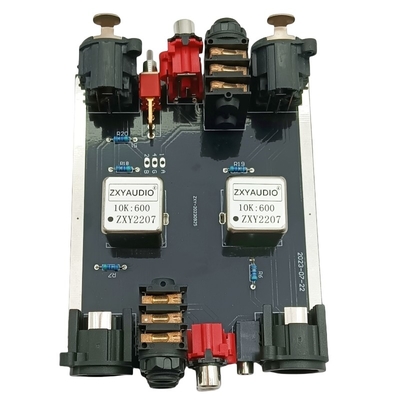

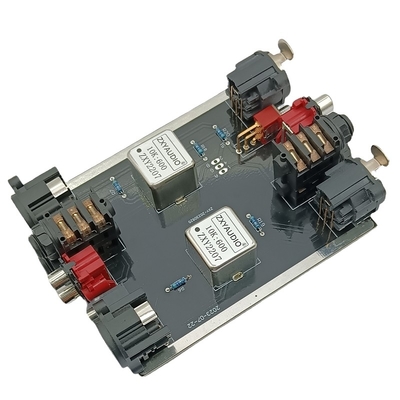

ZXY2207 10K:600 Audio Isolator with High Reducibility and Electrical Isolation for Common Ground Signal Integrity 0 ZXY2207 10K:600 Audio Isolator with High Reducibility and Electrical Isolation for Common Ground Signal Integrity 1 ZXY2207 10K:600 Audio Isolator with High Reducibility and Electrical Isolation for Common Ground Signal Integrity 2 ZXY2207 10K:600 Audio Isolator with High Reducibility and Electrical Isolation for Common Ground Signal Integrity 3 ZXY2207 10K:600 Audio Isolator with High Reducibility and Electrical Isolation for Common Ground Signal Integrity 4 ZXY2207 10K:600 Audio Isolator with High Reducibility and Electrical Isolation for Common Ground Signal Integrity 5 ZXY2207 10K:600 Audio Isolator with High Reducibility and Electrical Isolation for Common Ground Signal Integrity 6
