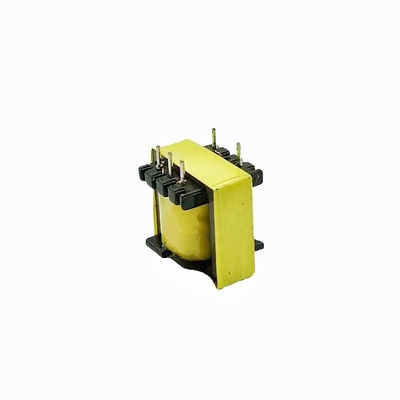

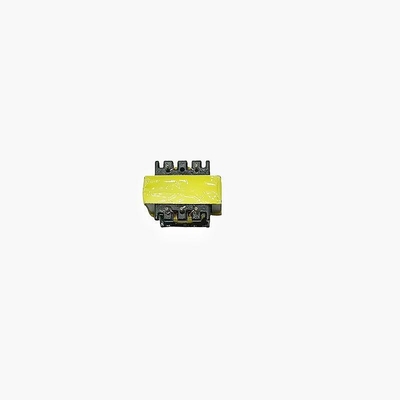

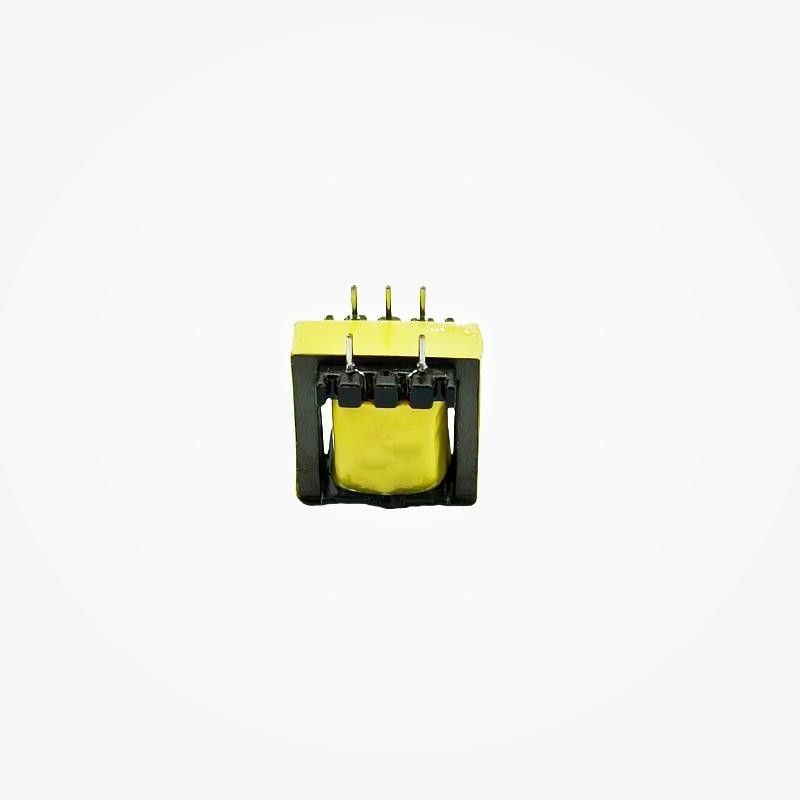

EI16 Low Frequency Transformer 4 Pins For Power Voltage Audio Pulse Isolation

Brand Name: ZXY
Model Number: EI16
MOQ: Negotiable
Price: Negotiable
Packaging Details: 100pieces / Carton size:380mm*325mm*345mm
Payment Terms: T/T,Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS,ISO9001,CE
Usage:
AUDIO
Coil Number:
AUTOTRANSFORMER
Frequency:
50/60Hz
Product Name:
EI16 Low Frequency Transformer
Material:
Silicon Steel Sheet
Phase:
Single
Supply Ability:
200K-pcs/month
Highlight:

EI16 Low Frequency Transformer

,

4 Pins Low Frequency Transformer

,

Audio Pulse Isolation Transformer

Product Description

EI16 Low Frequency Transformer 4 Pins For Power Voltage Audio Pulse Isolation



1.Product Description



EI16 Low Frequency Transformer is a kind of electronic transformer, which is defined according to the shape of the iron core, because the iron core of the EI transformer is superimposed by the "E" type piece and the "I" type piece, so it is called an EI transformer. EI transformers are generally power frequency (low frequency) transformers (50HZ or 60HZ), power transformers, and some audio transformers are also EI, such as those used in audio.



EI transformers are classified according to size, and the general large category is classified according to the length of silicon steel sheets. For example, the commonly used EI-19, EI-28, EI-35, EI-41, EI-48, EI-57, EI-66, EI-76.2, EI-86, EI-96, EI-114 and so on. Among them, 28, 35, and 41 refer to the length of the silicon steel sheet.



The detailed classification also considers the total stack thickness of silicon steel sheets. Some transformers are marked with EI-48*20. This 20 means that the total stack thickness of silicon steel sheets is 20mm, so this transformer is EI-48. The subdivision is as follows: EI-48*20.

Some places are also classified according to the width of the cutout of the silicon steel sheet. The cutout refers to the part that protrudes from the middle of the E sheet, as shown in Figure 1, marked A, and some say EI-16*20, of which 16 means the cutout width is 16 The EI-48 transformer has a width of 16, so the EI-16*20 transformer is the EI-48*20 transformer.



2. Characteristics




PARTNUMBER: EI19 hard feet 2+3
STORAGE TEMP RANGE: -45℃ TO +125℃
OPERATING TEMP RANGE: -40℃ TO +85℃
RELATIVE HUMITY RANGE: 5% TO 95%



Model Number

EI16
Place of Origin Shenzhen, China
Input Voltage 220V, 110V, 240V, 100V, 230V, 480V,other
Output Voltage 12V, 24V, 36V, 2V, 5V, 6V, 9V, 48V,other
Type EI16 hard foot
Material Z11 Silicon steel sheet, white flame retardant frame, enameled wire
Audio electricity Audio pulse transformer
Cooling method Cooling method
Product Size 15MM*14MM*13MM





3.Functions

1.Voltage conversion - Buck/Boost



2.Current conversion - matching to load


3.Power transfer - energy transfer


4.Electrical isolation - safety protection / anti-interference


5.Impedance matching-optimize signal transmission

EI16 Low Frequency Transformer 4 Pins For Power Voltage Audio Pulse Isolation 0EI16 Low Frequency Transformer 4 Pins For Power Voltage Audio Pulse Isolation 1



EI16 Low Frequency Transformer 4 Pins For Power Voltage Audio Pulse Isolation 2EI16 Low Frequency Transformer 4 Pins For Power Voltage Audio Pulse Isolation 3

EI16 Low Frequency Transformer 4 Pins For Power Voltage Audio Pulse Isolation 4EI16 Low Frequency Transformer 4 Pins For Power Voltage Audio Pulse Isolation 5











Tags:

EI Series Low Frequency Transformer

Z11 Silicon Steel Sheet Transformer

Audio Low Frequency Transformer
