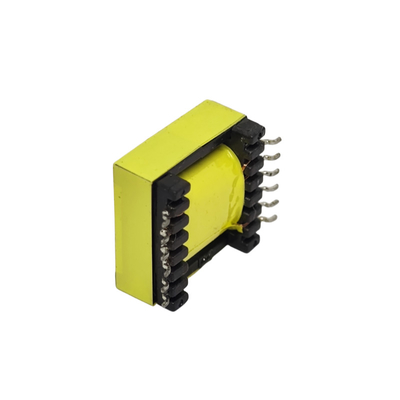

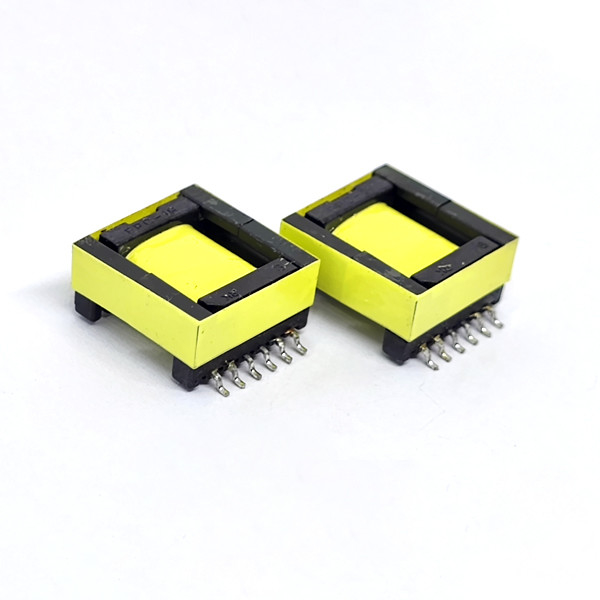

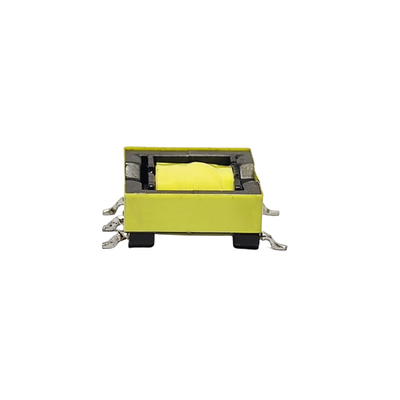

Small Electronic High Frequency Transformer EFD15-6mH For Switching Power Supply

Brand Name:	ZXY
Model Number:	EFD15-6MH
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

China, Shenzhen

Certification:

CE， RoHS, ISO

Type:

High Frequency Transformer

Installation:

Structure Form:

Vertical

Core Materials:

Ferrite

Keywords:

EFD15 6mH High Frequency Transformer

Inductance:

6mH Or Customized

Supply Ability:

1000K-pcs/month

Highlight:

Horizontal SMD High Frequency Transformer

Electronic Small High Frequency Transformer

Product Description

Small Electronic High Frequency Transformer EFD15-6mH For Switching Power Supply

1.Product Description

Structural characteristics of EFD15 6mH High Frequency Transformer

1. Magnetic core shape: EFD type magnetic core is used, which has good magnetic field concentration and electromagnetic shielding effect, can effectively reduce electromagnetic interference, and improve the stability and reliability of transformers.

2. Size specifications: Taking the common EFD15-01 model as an example, its length is 16.0mm, width is 16.0mm, and height is 8.0mm.

3. Winding form: Usually there are double windings or three windings, such as the common EFD15 horizontal 5+5SMD patch high-frequency transformer, which adopts a three winding form to meet different voltage conversion and power transmission requirements.

4. Inductance: The nominal inductance is 6mH, which can play a role in energy storage, filtering, etc. in the circuit, ensuring stable transmission and conversion of electrical energy.

5. Operating frequency: The general operating frequency range is 20kHz-500kHz, suitable for high-frequency circuits, which can effectively reduce the volume and weight of transformers and improve the power density of power supplies.

6. Output power: Generally, the output power is around 3W-12W.

7. Voltage resistance performance: It can withstand a certain voltage, such as a winding to winding voltage resistance of 3000VAC 1mA for 3 seconds, etc

2.Application Area

1. LED driver: In LED lighting systems, it is used to convert the input power supply voltage into a voltage and current suitable for LED operation, achieving stable driving of the LED.

2. Switching power supply: It is a key component in the switching power supply circuit, used to achieve functions such as voltage conversion, power transmission, and electrical isolation, ensuring the efficient and stable operation of the switching power supply.

3. Industrial power supply: In the power modules of industrial automation equipment, instruments and meters, it provides stable power supply for the equipment.

Features	Details
Core Type & Size	- Core Shape: EFD - type core offers excellent magnetic field concentration. Its design helps in effectively confining the magnetic flux, reducing magnetic leakage and enhancing electromagnetic shielding. This results in better stability and reliability of the transformer.
Core Type & Size	- Dimensions: Specifically, for the EFD15 model, it typically has a length of 16.0mm, width of 16.0mm, and height of 8.0mm. This compact size is beneficial for applications where space is at a premium.
Winding Configuration	- Number of Windings: Usually comes with dual - winding or triple - winding options. For example, the EFD15 horizontal 5 + 5 SMD patch high - frequency transformer features a triple - winding structure. This flexibility allows for different voltage transformation ratios and power transfer requirements to be met.
Inductance Value	- Nominal Inductance: With a rated inductance of 6mH, it plays a crucial role in energy storage and filtering within the circuit. This value enables stable power transmission and conversion, ensuring the smooth operation of electrical components connected to it.
