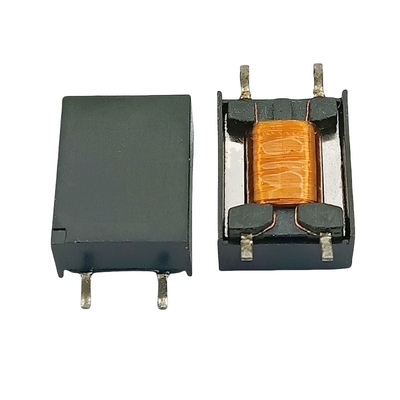

ED8.6-3.8H Audio Isolation Transformer Half Irrigated Low Distortion Rate

1.Product Description

The ED8.6 Half Irrigated Audio Isolation Transformer is a specialized audio component engineered to provide reliable isolation and high - quality audio signal transfer. It features a unique half - irrigated design, which offers a balance between protection and performance. The half - irrigated construction, typically using a suitable potting material, helps to shield the internal components from environmental factors such as dust and moisture, enhancing the transformer's durability and long - term stability. This is especially crucial in various audio applications where consistent performance is required. As an isolation transformer, it plays a pivotal role in separating different audio circuits. By preventing electrical interference from crossing between circuits, it ensures that audio signals remain pure and free from unwanted noise. In professional audio setups, like recording studios or live sound reinforcement systems, this transformer can be used to isolate microphones, amplifiers, and speakers. For example, when connecting a microphone to an amplifier, the ED8.6 can effectively block any ground - loop interference, resulting in a cleaner and more accurate audio signal. It also helps in impedance matching, optimizing the transfer of audio power between different components. With its precise design and high - quality construction, the ED8.6 Half Irrigated Audio Isolation Transformer is well - suited for applications where audio integrity and reliable isolation are of utmost importance, delivering clear, interference - free audio for a superior listening experience.

2.Specificities

1. Unique half-potted construction
-Protection and performance at the same time: The half-potted design provides effective protection for the internal components through the use of suitable potting materials. This design can block dust, moisture and other environmental factors on the internal circuit erosion, compared with the full potting, to ensure the protection effect at the same time, to avoid excessive potting may lead to heat dissipation problems and the potential impact on certain performance, to achieve a balance between protection and performance, greatly enhancing the durability and long-term stability of the transformer, can meet the needs of a variety of complex environments in the audio applications.

-Optimize internal heat dissipation: Half-potted structure in the basis of protection, cleverly reserved space for heat dissipation, so that the transformer in the process of working heat can be effectively emitted. In the long time high load operation of audio equipment, good heat dissipation helps to maintain the internal temperature of the transformer stable, to ensure that its performance is not affected by high temperature, continue to work efficiently.

2. Excellent audio isolation function
--Thoroughly block electrical interference: As an audio isolation transformer, its core function is to isolate different audio circuits. It can accurately and effectively prevent electrical interference from spreading between circuits, eliminating the problem of audio signal distortion and noise caused by interference. For example, in a complex audio system, the electromagnetic interference generated by the simultaneous operation of multiple devices is very easy to affect the audio quality, and ED8.6 can effectively isolate the circuitry of each device to ensure the purity of the audio signal.

--Eliminate Ground Loop Interference: In the process of connecting audio devices, ground loop interference is a common problem, which will seriously affect the accuracy of audio signals.ED8.6 can target to solve this problem, when connecting microphones and amplifiers and other equipment, it can effectively block ground loop interference, so that the audio signal transmission is clearer and more accurate, to provide a high-quality signal basis for the audio recording, playback and other scenarios.

3. Accurate impedance matching
--Enhance the efficiency of audio power transmission: the transformer has accurate impedance matching capability, which can optimize the transmission of audio power among components according to the characteristics of different audio components. When connecting devices with different impedances, it can automatically adjust its own parameters to ensure that the audio power transmission is in the best state, reduce signal loss and improve the overall performance of the audio system. For example, in a professional recording studio, when connecting many different types of audio equipment, ED8.6 can ensure smooth signal transmission between the devices and give full play to the performance advantages of each device.

3.Advantages
