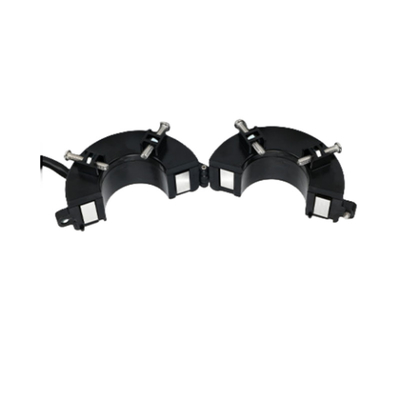

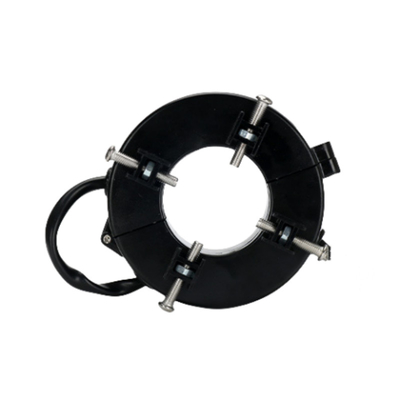

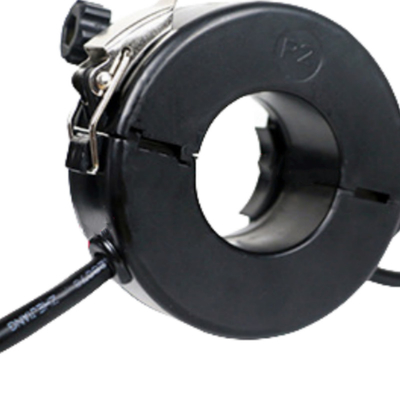

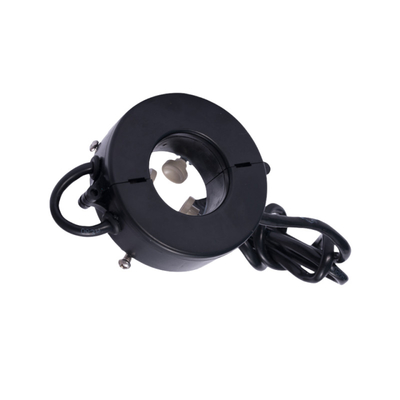

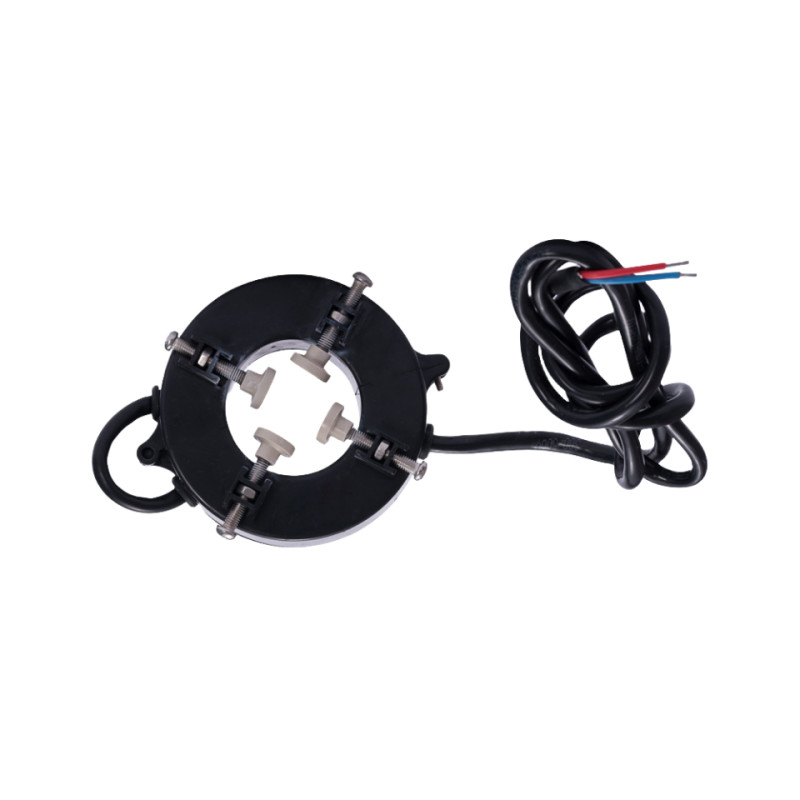

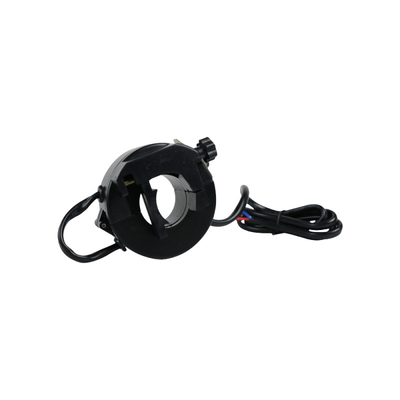

100-800A Three Phase AC Open Current Transformer 0.5S 100/5 150/5 200/5 250/5 300/5

Brand Name: ZXY
Model Number: CTK-0.66-22/40/45/60
MOQ: Negotiable
Price: Negotiable
Packaging Details: 1000pieces / Carton
Payment Terms: T/T paypal xtransfer
Detail Information
Product Description
Detail Information
Place of Origin:
China,shenzhen city.
Certification:
RoHS,ISO9001-2001
Frequency:
50Hz/60Hz
Rated Input:
5-1500A
Rated Output:
1A.5A
Insulation Strength:
2.5 KV/ma / 1 Min
Insulation Resistance:
DC500V/100MQ MIN
Voltage Level:
0.66/0.72 KV
Supply Ability:
1000K-pcs/month
Highlight:

800A Open Current Transformer

,

Buckle structure Open Current Transformer

,

0.5S Three Phase Current Transformer

Product Description

Product Details



product model boundary dimension Input range A Input range
inner diameterD A B C D
KCT-20L 20 68 81 32 36 50-300A 1-500MA1A/
5AACO-10V
KCT-40L 40 86 98 32 45 100-800A
KCT-45L 45 90 107 32 42 100-800A
KCT-60L 60 107 120 32 42 100-1500A





Product Description





1.Open current transformer Open/Open circuit 100-800A 0.5S 100/5 150/5 200/5 250/5 300/5 Three-phase AC high precision measurement

  • The open-close current transformer is improved on the basis of the traditional transformer. Made of free opening and closing, it can be quickly installed and disassembled in the state of no power failure and continuous line, and the operation is simple. This series of products are widely used for measurement, rated primary current :01500A, rated secondary current :05A, current ratio up to 500:110,000:1, orderly production process flow to ensure its accuracy level, reliability and other technical requirements. This product complies with GB/T20840.1.2 standard

2. Features:

  • Buckle structure, good linearity, high sensitivity:
  • High guide base silicon steel, good linearity, high sensitivity
    Internal bad oxygen tree pouring, good mu quality, light weight, easy to install

3.Application:

  • It is suitable for rural network transformation, electrical fire monitoring, fire leakage system, intelligent disabled electrical system, power measurement, power quality analysis and electrical equipment signal acquisition, lighting equipment, motor. Power demand side management of power devices and other equipment small current grounding system, electromagnetic relay protection, microcomputer protection, smart power, environmental monitoring, etc.







100-800A Three Phase AC Open Current Transformer 0.5S 100/5 150/5 200/5 250/5 300/5 0



100-800A Three Phase AC Open Current Transformer 0.5S 100/5 150/5 200/5 250/5 300/5 1



















Tags:

High Accuracy Current Transformer

Easy Installation Split Type Current Transformers

Miniature Current Transformer
