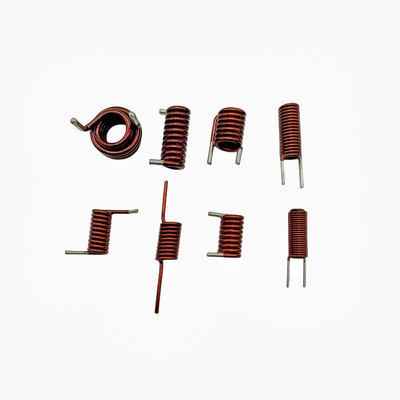

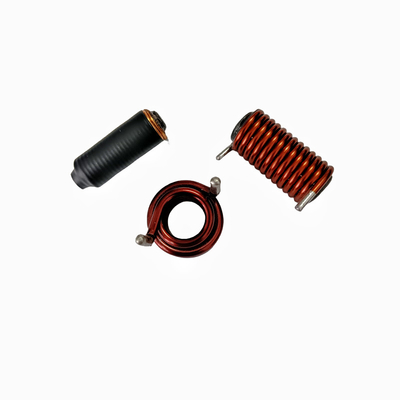

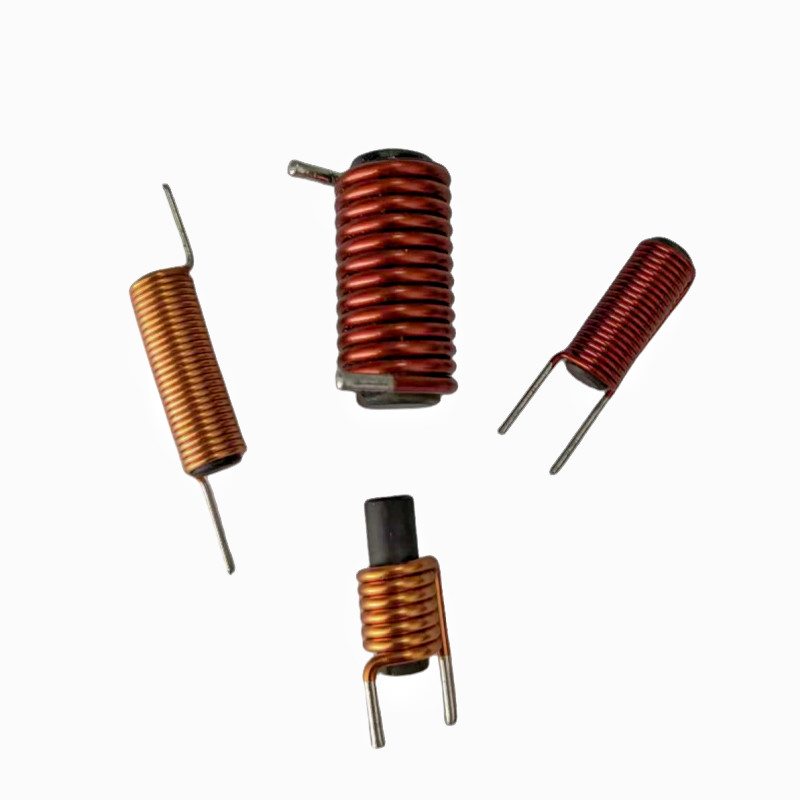

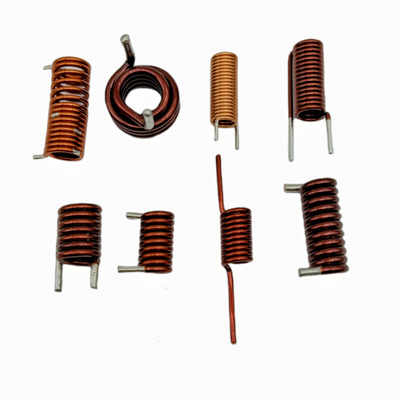

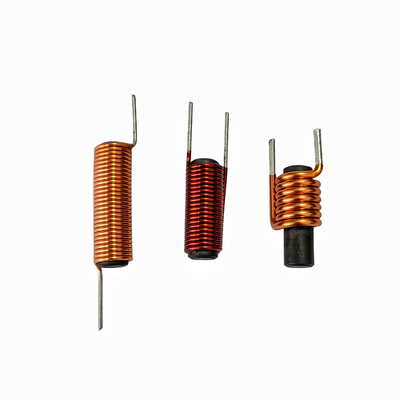

Custom 5UH Audio Power Amplifier Copper Inductor Coli Hollow Three Layer

Brand Name:	ZXY
Model Number:	inductor coil
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,shenzhen

Certification:

RoHS,ISO9001-2001

Features:

Low Resistance

Material:

Copper

Frequency:

50/60Hz

Size:

Customized

Type:

Inductor Coli

Number Of Turns:

Customized

Supply Ability:

1000K-pcs/month

Highlight:

Power Amplifier Copper Inductor Coli

5UH Copper Inductor Coli

Product Description

Hollow inductor Custom 5UH audio power amplifier inductor coli three-layer horizontal QZ copper wire wound inductor

1.function

blocking effect

The self-induced electromotive force in the coil is always resistant to changes in the current in the coil. The hollow coil has a blocking effect on the AC current, and the size of the blocking effect is called the inductive reactance xl, and the unit is ohms. It is related to the inductance l and the AC frequency f by xl=2πfl.

tuning and frequency selection

lc tuning circuit can be formed by connecting hollow coil and capacitor in parallel. That is, the natural oscillation frequency f0 of the circuit is equal to the frequency f of the non-AC signal, then the inductive reactance and capacitive reactance of the circuit are equal, so the electromagnetic energy oscillates back and forth in the inductor and capacitor, which is the resonance phenomenon of the lc circuit. When resonant, the inductive reactance and capacitive reactance of the circuit are equivalent and reverse, the inductive reactance of the total current of the circuit is minimum, and the current flow is maximum (refers to the AC signal of f= "f0"), and the lc resonant circuit has the effect of selecting the frequency, which can select the AC signal of a certain frequency f.

2. Features:

A wide range of wire specifications

Low resistance

High current resistance

Small size and light weight

Good weldability

3.Application:

TV audio microwave ovens and communication transmission and reception fields can also be used for power filtering

4. Characteristics:
