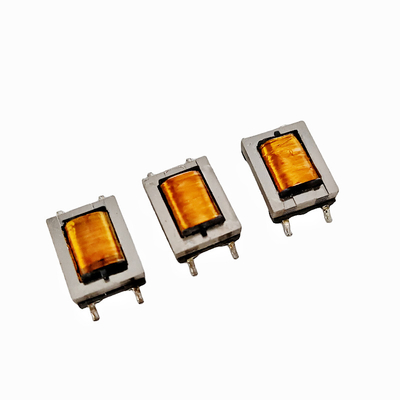

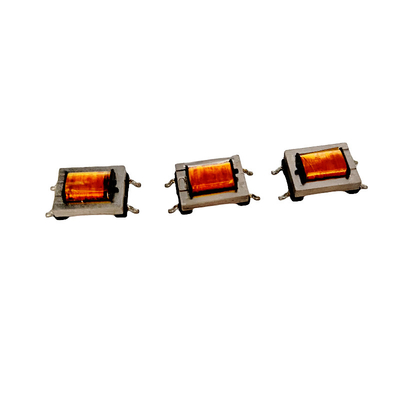

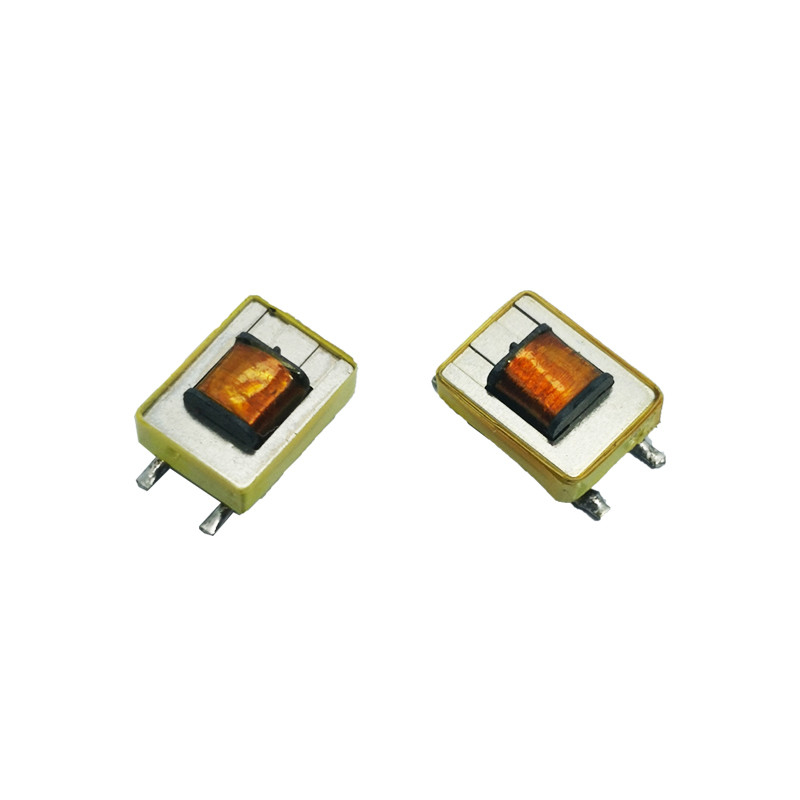

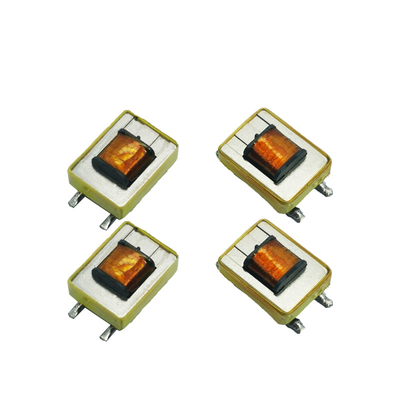

ED8 Permalloy Nickel Steel Sheet Isolation Transformer For Audio Equipment

1.Product Description

The ED8 Permalloy Nickel Steel Sheet Isolation Transformer is a highly specialized electrical component designed for applications where electrical isolation and high - performance signal transfer are crucial. It features an ED8 - shaped core constructed from permalloy nickel - steel sheet, a material renowned for its outstanding magnetic properties. The permalloy nickel - steel sheet offers high magnetic permeability, enabling efficient magnetic flux transfer and significantly reducing magnetic reluctance. This results in minimal power loss during operation, ensuring the transformer can handle electrical signals with exceptional efficiency. Its primary function is isolation, effectively separating different electrical circuits to prevent electrical interference from spreading. In various electrical systems, such as power supplies for sensitive electronic equipment, communication devices, and industrial control systems, this transformer plays a vital role. It can isolate noise sources, protect equipment from voltage surges, and maintain the integrity of electrical signals. The compact and stable ED8 structure makes it suitable for integration into a wide range of devices, providing reliable electrical isolation and high - quality signal transfer capabilities, thereby enhancing the overall performance and reliability of the electrical systems it serves.

2.Specificities

1. Excellent material performance advantages
--High permeability enhances efficiency: Pomol alloy nickel steel sheet is used to build ED8 type magnetic core, which has extremely high permeability. During electromagnetic induction, the high permeability allows the transformer to sense and transmit magnetic flux more efficiently, greatly reducing the magnetic resistance compared to ordinary core materials. This means that when processing electrical signals, the conversion of electrical energy into magnetic energy and magnetic energy back into electrical energy is much smoother, and power losses are dramatically reduced. For example, in power systems running for long periods of time, this can significantly reduce energy consumption, improve overall energy utilization efficiency, and save operating costs for users.

-Low loss ensures stability: Hysteresis loss and eddy current loss of the transformer are kept at a very low level during operation due to the reduced magnetic resistance. Hysteresis loss refers to the energy loss in the process of absorbing and releasing energy in the core material when the magnetic field changes repeatedly; eddy current loss is the energy wasted due to the circulation of induced current inside the core. Pomo alloy nickel steel sheet effectively inhibits these two kinds of loss, to ensure that the transformer in a long time, high load working condition, but also can run stably, to reduce the loss caused by the equipment heating, performance degradation and other problems, to extend the service life of the equipment.

2.Powerful electrical isolation function advantage
--Blocking interference propagation path: as an isolation transformer, its core function is to realize electrical isolation. It can effectively separate different electrical circuits and prevent electrical interference from spreading between circuits. In complex electrical systems, such as industrial automation production lines, various equipment operation will produce a large number of electromagnetic interference, ED8 transformer can isolate the circuit of sensitive equipment from the source of interference, to ensure that sensitive equipment is not affected by external interference, normal and stable operation. For example, it can prevent the voltage fluctuation and electromagnetic interference generated during the startup of high-power motors from influencing precision sensors, controllers and other equipment, and ensure the stable operation of the entire production system.

--Protect equipment from surge impact: can effectively isolate the noise source, but also has the ability to protect equipment from voltage surges. In the unstable power supply or lightning strikes and other emergencies, there will be an instantaneous surge of high voltage in the power grid.ED8 transformer through its isolation characteristics, can block these surge voltages in the front of the equipment, to avoid damage to the equipment due to withstand excessively high voltages, to provide reliable protection for the equipment, reduce equipment maintenance and replacement costs, and improve the reliability and stability of the system.
