Permalloy Audio Transformer

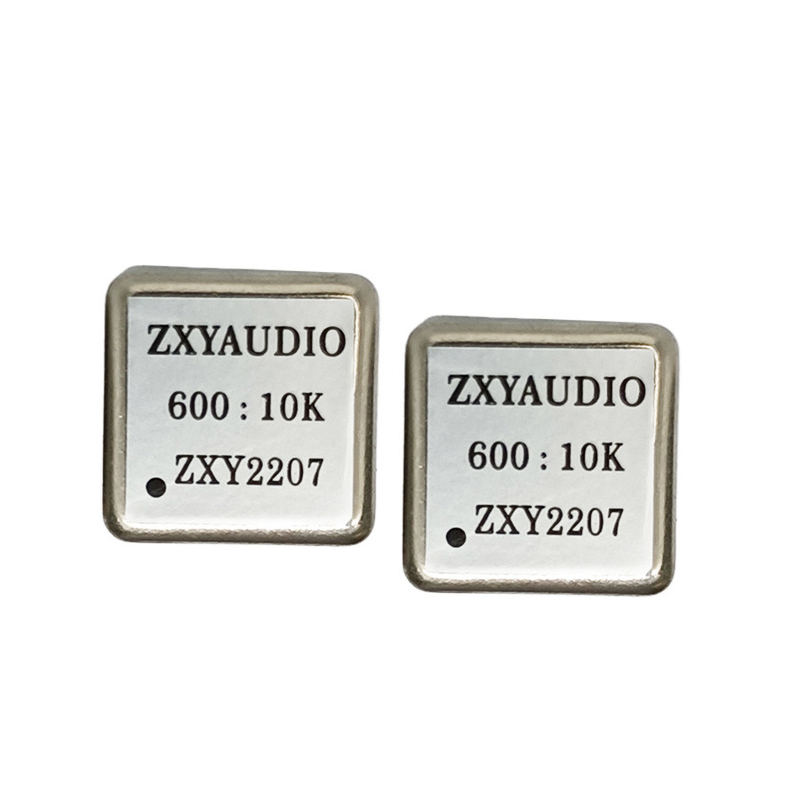

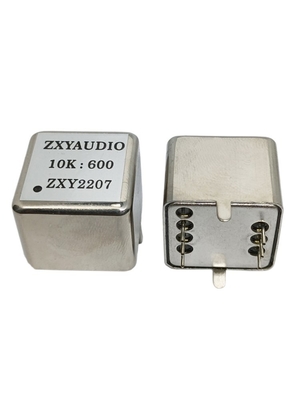

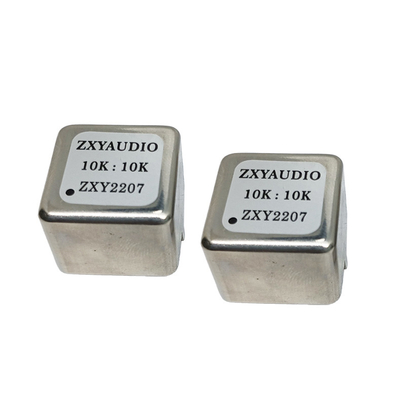

High Permeability Audio Transformer Permalloy ZXY2207-600:600 10K:10K 10K:600

All Category

Chip Inductor

Ms. Chen

rhea@zxycoil.com

+8613554723725

Contact Now

High Permeability Audio Transformer Permalloy ZXY2207-600:600 10K:10K 10K:600

Brand Name:	ZXY
Model Number:	ZXY-2207
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen Guangdong, China

Certification:

RoHS,ISO9001-2001

Voltage Ratio:

Moisture-proof Way:

Potting

Name:

2207 Permalloy Audio Transformer

Material:

Permalloy

Frequency:

Low Frequency

Winding:

2.5~50000

Model Number:

10k:600,600:10k,600:600-1+1:1+1,600:600

Electrical Parameter:

Supply Ability:

1000K-pcs/month

Highlight:

customized power audio frequency transformer

permalloy audio frequency transformer

Product Description

High Permeability Audio Transformer Permalloy ZXY2207-600:600 10K:10K 10K:600

1.Product Description

1.Customized 2207 Permalloy Audio Transformer

2207 Permalloy Audio Transformer has a uniform frequency response in the operating frequency band. The iron core is made of high permeability material. The primary and secondary windings are tightly coupled, so that the magnetic flux through the primary winding is almost entirely connected to the secondary winding, with a coupling factor close to 1. The lowest frequency of the passband is determined by the inductance of the primary winding, and the highest frequency by the leakage inductance of the transformer.

2.2207 Depending on their position in the electronic circuit, Permalloy audio transformers can be divided into 3 categories:

Those connected between the output circuit and the load are called output transformers;

Those connected between the signal source and the input of the amplifier are called input transformers;

Connected between the upper level output circuit and the next level of input circuit is called interstage transformer.

2207 Permalloy audio transformer can be realized like a power transformer voltage conversion, can also realize the audio signal coupling.

3.2207 Permalloy audio transformer role:

2207 Permalloy audio transformer has an important role in audio equipment, especially in application scenarios that require high fidelity and high sound quality. Permalloy itself is an alloy made up of a high percentage of nickel and iron with excellent magnetic properties that provide low loss, high sensitivity and a wide range of frequency response.

NO	TEST ITEM	TEST TERMINAL	LIMIT	TEST CONDITION	TEST INSTRUMENT
1	INDUCTANCE	1-3	100 H MIN	100HZ 03V PARALLEL	CD1063
1	INDUCTANCE	4-6	6.0H MIN	100HZ 0.3V PARALLEL	CD1063
2	DCR	4-6	558 OHM+15%	25C	CD1063
3	IMPEDANCE	1-3	40 OHM土15%	25C	CD1063
4	TURN RATION	1-3,4-6	600 OHM	1-2,1KHZ,10K,OHM LOAD	CH3250
5	PRI-SEC	1-3,4-6	4:1+ 2%	10KHZ 1V	CH3250
