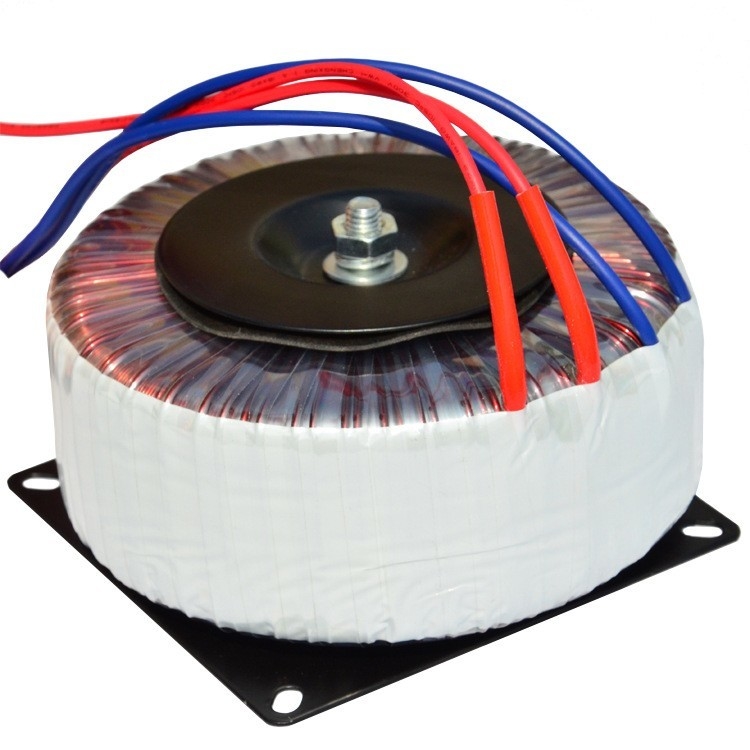

High Permeability Silicon Steel Toroidal Power Transformer For Power Supply

Brand Name:	ZXY
Model Number:	ZXY-C40W
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	100pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

China,shenzhen city.

Certification:

RoHS,ISO9001-2001

Features:

High Electrical Efficiency

Frequency:

50 / 60Hz

Coil Number:

AUTOTRANSFORMER

Other Name:

Toroidal Power Transformer

Core Material:

Iron Core Without Air Gap

Phase:

Single

Supply Ability:

2000K-pcs/month

Highlight:

12v Inductor Transformers

toroidal power transformers

60va Inductor Transformers

Product Description

High Permeability Silicon Steel Toroidal Power Transformer For Power Supply

1.Product Descriptions:

1. Structural features

Core shape: The toroidal core is wound from silicon steel strip, and the closed loop design reduces the air gap in the magnetic circuit and improves the magnetic permeability.

Winding method: The windings are evenly distributed on the core, usually done by ring winding machine.

2. Advantages Of Toroidal Power Transformer

High efficiency: Closed magnetic circuit design reduces reluctance and iron loss, resulting in higher efficiency.

Low magnetic leakage: the magnetic field is concentrated in the iron core, less magnetic leakage, less electromagnetic interference.

Low noise: the iron core is compact, low vibration and noise.

Small size and light weight: compact structure, space saving, easy to install.

3. Application areas Of Toroidal Power Transformer

Audio equipment: Used in high quality audio amplifiers to provide pure power supply.

Medical equipment: used for precision instruments to ensure stable power supply.

Industrial control: used in automation equipment to provide reliable power supply.

Household appliances: such as high-end audio, TV, etc.

4. Manufacturing process

Iron core manufacturing: using high permeability silicon steel tape winding and annealing treatment.

Winding process: Use special winding machine to ensure even distribution.

Insulation treatment: The winding needs to be insulated to prevent short circuit.

Strong point	High efficiency
Supplier	Manufacturer
Applied	Audio Devices
Parameters	Customizable

High Permeability Silicon Steel Toroidal Power Transformer For Power Supply 0
