Ferrite Core Smps Electronic Power Transformer Smd Transformer

Brand Name:	ED8
Model Number:	ZXY-EFD20
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

China,shenzhen city.

Certification:

RoHS,ISO9001-2001

Model Number:

EFD20

Package:

As Your Request

The Working Temperature:

-40℃ To +125℃

The Working Frequency:

20kHz-500KHz

The Output Power:

8.0 To 30 W

Coil Numbe:

AUTOTRANSFORMER

Supply Ability:

1000K-pcs/month

Highlight:

Smps Electronic Power Transformer

Smd electric step down transformer

Ferrite Core Electronic Power Transformer

Product Description

EFD20 Smd Transformer Ferrite Core Smps Electronic Usage Power Transformer

Product description:

The high-frequency transformer is a power transformer whose working frequency exceeds the intermediate frequency (10kHz). power transformer. According to the working frequency, it can be divided into several grades: 10kHz-50kHz, 50kHz-100kHz, 100kHz-500kHz, 500kHz-1MHz, and above 10MHz.EFD type transformer features high performance.

Feature:

1.Large transmission power
2.Low loss
3.Low temperature rise
4.Stable performance

Application:

Switching power supply industry; electric power, electrical and electrical equipment industry; medical equipment industry; communication equipment industry; solar energy, inverter industry; electric vehicle charger industry; vehicle electronic equipment industry; smart home industry; environmental protection equipment industry; new energy industry; machinery Equipment industry; household appliance industry; digital product industry; fitness and beauty equipment industry; LED lighting industry; inverter industry

Specifications	EFD20 transformer
Product material	Magnetic core/Bakelite frame/enamelled copper wire

Model Number	EFD TYPE
Usage	High Frequency
Coil Structure	Toroidal
Phase	Single
Material	core, wire, bobbin
Certification	ISO9001:2008
Package	Carton
Shipping Term	DHL Fedex TNT EMS UPS
Product features	1.High efficiency, high quality materials
	2.Low working temperature and long service life.
	3.Good insulation and high resistance to electric power.
	4.Good anti-interference performance and high reliability.
	5. Low energy consumption and high dc superposition.

High frequency transformer -Suitable for AC/DC inverter or DC/AC converter. Customized designs are welcome.
High frequency switching power transformer type we produce: PQ/ EI/ EE/ EF/ ERL/ ETD/ EFD/ RM and other customized.
PQ Series: PQ2020, PQ2016, PQ2625, PQ3230, PQ3535, PQ4040 and PQ5050.
EI series: EI19, EI28, EI33, EI40.
EE series : EE5.0, EE8.3, EE10, EE13, EE16, EE19, EE22, EE25, EE28, EE30, EE33, EE35, EE40, EE42, EE50,EE55,.EE65,EE70.
EF series: EF16, EF20, EF25 and EF32.
ERL series: ERL-28, ERL-35, ERL-39, ERL-42 and ERL-49.
ETD series: ETD29, ETD34, ETD39, ETD44, ETD49, ETD54 and ETD59.
EFD series: EFD15, EFD20, EFD25 and EFD30.
RM series: RM-4, RM-5, RM-6, RM-8, RM-10, RM-12 and RM-14.

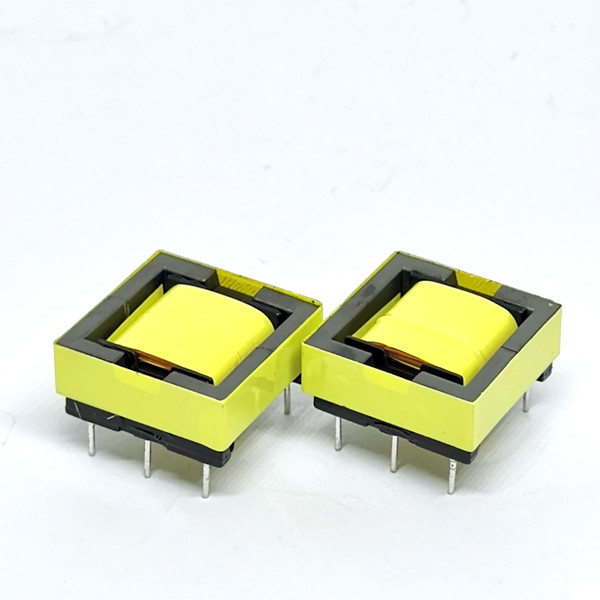

Ferrite Core Smps Electronic Power Transformer Smd Transformer 0

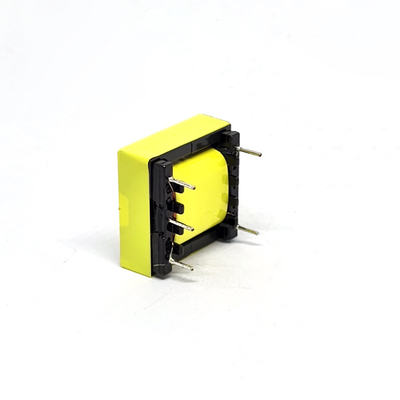

Ferrite Core Smps Electronic Power Transformer Smd Transformer 2
