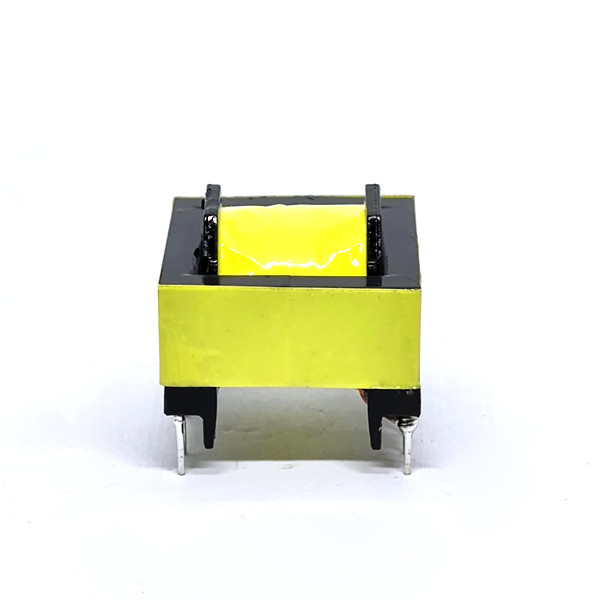

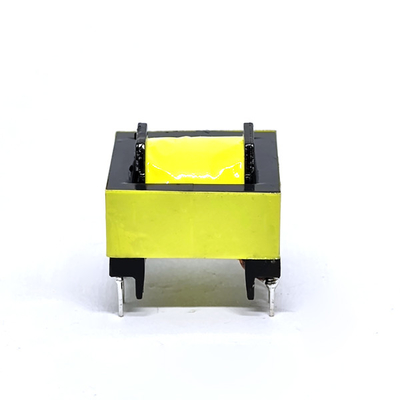

Multiple Coil High Frequency Transformer 110v To 12v Converter

Brand Name:	ED8
Model Number:	ZXY-EC28
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

China,shenzhen city.

Certification:

RoHS,ISO9001-2001

Type:

High Frequency Transformer

Material:

Magnetic Core/Bakelite Frame/enamelled Copper Wire

Core Material:

Ferrite Core

Frequency:

10KHz -500KHz

Coil Number:

Multiple

Phase:

Single Or Three

Supply Ability:

1000K-pcs/month

Highlight:

10KHz High Frequency Transformer

Ferrite 110v to 12v converter

Multiple Coil High Frequency Transformer

Product Description

Product Details

Specifications	EC28 transformer
Product material	Magnetic core/Bakelite frame/enamelled copper wire

Product Description

EC28 110V 12v Transformer High Quality High Frequency Transformer

1.Product description

High frequency transformer is the most important part of switching power supply. There are many topologies in switching power supplies. For example, a half-bridge power conversion circuit requires two switching transistors to be turned on in turn to generate a high-frequency pulse wave of 100 kHz, which is then transformed by a high-frequency transformer to output alternating current.

2. Features:

Customizable: The high frequency transformer can be customized according to specific requirements, providing flexibility and adaptability for a variety of applications.
Using advanced technology and high-quality materials, the high frequency transformer provides outstanding performance and reliability. It ensures efficient power conversion while minimizing losses and disturbing noise.
With its compact design and superior construction, this high frequency transformer is optimized to save space for easy integration into switching power supplies. It has been carefully designed by engineers to withstand high pressure, high temperature and high current levels, ensuring a long life.
The high frequency transformer is designed by industry experts and follows industry standards and safety regulations. It follows strict quality control measures and is rigorously tested to ensure its durability and electrical performance.
Whether used in industrial equipment, communications equipment, renewable energy systems or other electronic applications, this customizable high-frequency transformer provides the precise power conversion required for optimal operation.
Choose high frequency transformers for a reliable and efficient power conversion solution. Experience the outstanding performance and durability of our customized products.

3.Optical Characteristics:

All types:

NO.

Product Name

TYPE

Detailed Type

High frequency transformers

EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85

EC/ER

ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49

ETD

ETD29, ETD35, ETD40, ETD49

EF16, EF20, EF25

EFD

EFD15, EFD20/21, EFD25/26, EFD30

EDR

EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008

EP7, EP10, EP13

EPC

EPC11.5, EPC13, EPC19, EPC25

EQ2512, EQ2610, EQ3209, EQ4013,

POT

POT3016, POT3930

PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49

RM6, RM8, RM10, RM12, RM14

Common mode chokes(Line filters)

Bobbin

EE8.3, EE12, EE19, EE25

UU9.8, UU10.5, UU16

ET20, ET24, ET28, ET35

SQ1212, SQ1515, SQ2418

FT20-22, FT20-21, FT20-15, FT20-13, FT20-10

Toroidal

6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 25X15X13, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Ferrite core); 16X10X6, 20X12.5X8, 25X16X10, 30X20X10, 30X20X15, 40X25X15, 50X40X20, 63X50X25, 80X63X25, 100X80X25, 130X100X25(Nanocrystalline core)

Inductors(Choke coils)

Peaking/Drum

4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20

Toroidal

6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16

Rod

3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30

Bobbin

EE8.3, EE10, EE13, EE16, EER(PFC)

SMD power inductors

Unshielded

MT, MTQ, MTF, MTG

Shielded

MTH, MTHII, MTP, MTB, MTE, MTL, MTF

Low frequency transformers

EI14, EI16,EI19, EI24,EI28, EI30, EI35, EI38.5, EI41,EI48, EI57, EI60, EI66, EI74, EI76, EI86, EI96, EI105, EI114

Multiple Coil High Frequency Transformer 110v To 12v Converter 0
