EC28 High Frequency Transformer 110V 12V Transformer

Brand Name: ED8
Model Number: ZXY-EC28
MOQ: Negotiable
Price: Negotiable
Packaging Details: 1000pieces / Carton size:380mm*325mm*345mm
Payment Terms: T/T paypal xtransfer
Detail Information
Product Description
Detail Information
Place of Origin:
China,shenzhen city.
Certification:
RoHS,ISO9001-2001
Type:
High Frequency Transformer
Material:
Magnetic Core/Bakelite Frame/enamelled Copper Wire
Electricity:
High-frequency Transformer
Core Material:
Ferrite Core
Output Voltage:
1-1000V
Frequency:
10KHz -500KHz
Coil Number:
Multiple
Phase:
Single Or Three
Supply Ability:
1000K-pcs/month
Highlight:

500KHz High Frequency Transformer

,

110v to 12v dc transformer

,

High Frequency Transformer 110V 12V

Product Description

EC28 High Frequency Transformer High Quality 110V 12v Transformer

The high-frequency transformer is a power transformer whose working frequency exceeds the intermediate frequency (10kHz). power transformer. According to the working frequency, it can be divided into several grades: 10kHz-50kHz, 50kHz-100kHz, 100kHz-500kHz, 500kHz-1MHz, and above 10MHz.

High frequency transformer is the most important part of switching power supply. There are many topologies in switching power supplies. For example, a half-bridge power conversion circuit requires two switching transistors to be turned on in turn to generate a high-frequency pulse wave of 100 kHz, which is then transformed by a high-frequency transformer to output alternating current. The turns ratio determines the output voltage. The most conspicuous in a typical half-bridge transformer circuit are three high-frequency transformers: the main transformer, the drive transformer and the auxiliary transformer (standby transformer). Each transformer has its own measurement standards in national regulations, such as the main transformer, As long as it is a power supply of more than 200W, the core diameter (height) must not be less than 35mm. As for the auxiliary transformer, when the power supply does not exceed 300W, its core diameter is 16mm.

Specifications EC28 Vertical straight plug
Product material Magnetic core/Bakelite frame/enamelled copper wire

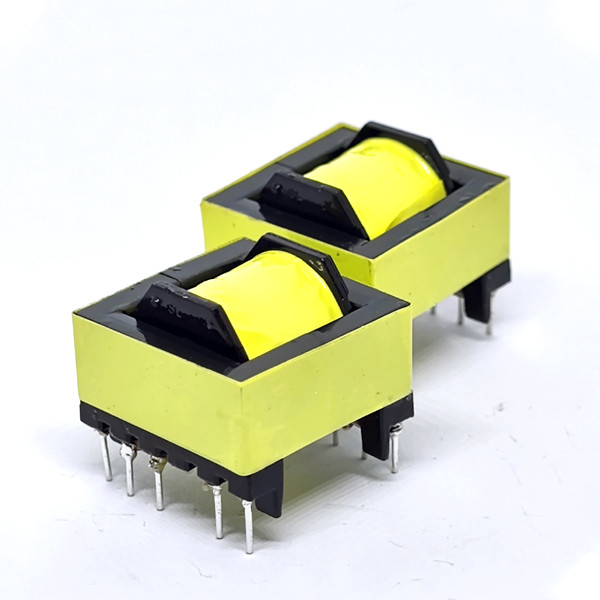

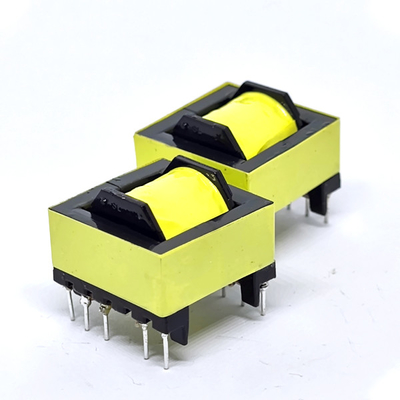

EC28 High Frequency Transformer 110V 12V Transformer 0EC28 High Frequency Transformer 110V 12V Transformer 1

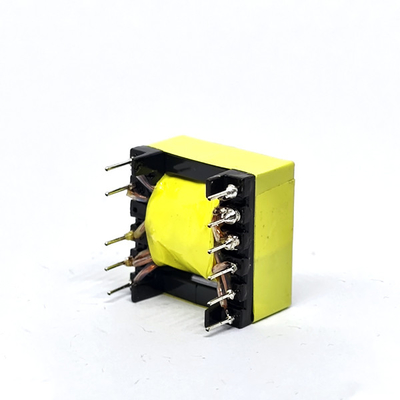

EC28 High Frequency Transformer 110V 12V Transformer 2

Tags:

HF Power Transformer

High Frequency Transformer Custom

High Frequency Signal Transformer
