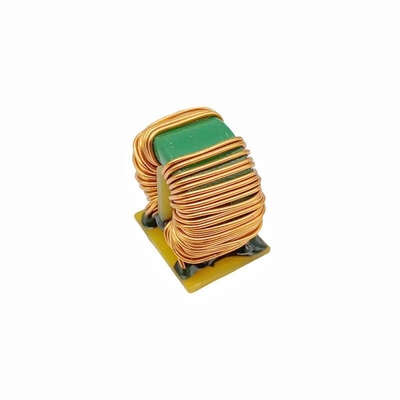

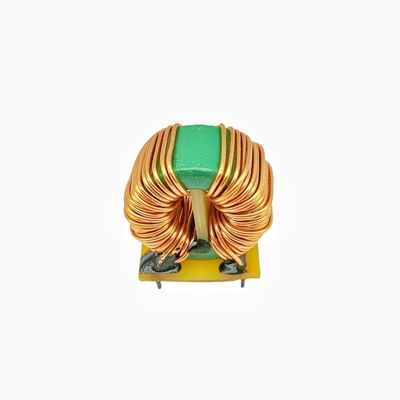

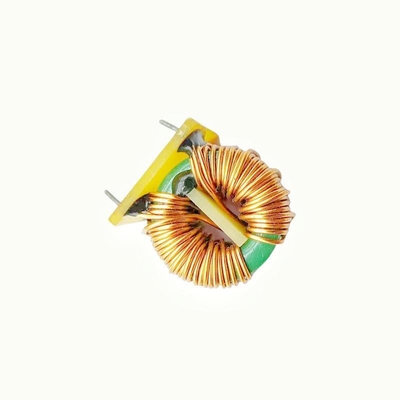

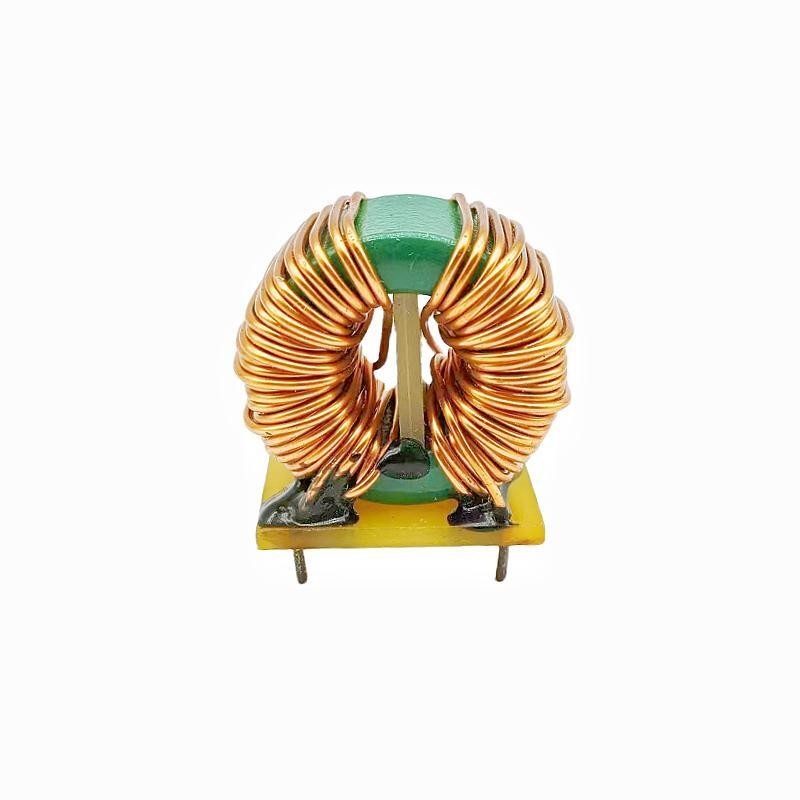

Mn-Zn Ferrite Coil Common Mode Choke Magnetic Loop Filter Copper Wire Wound

Brand Name:	ZXY
Model Number:	ZXY-T251518
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	100pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,ISO9001,CE

Type:

Common Mode Choke Inductor

Place Of Origin:

Guangdong, China

Feature:

High Anti-interference Stability

Current:

High Current

Other Name:

Copper Wire Magnetic Loop Filters

Advantage:

High Reliability

Supply Ability:

2000K-pcs/month

Highlight:

22uh Miniaturized Power Inductors SMD Chip

4.7uH NR Series ferrite chip inductor

Miniaturized Power Inductors SMD Chip 4R7

Product Description

Mn-Zn Ferrite Coil Common Mode Choke Magnetic Loop Filter Copper Wire Wound

1.Product Description

Copper Wire Magnetic Loop Filters are passive electronic components based on the principle of electromagnetic induction, which are mainly used for storing energy, filtering, tuning and suppressing noise.

Model Number	Common mode choke inductor
Material	Mn-Zn ferrite core,copper wire
Place of Origin	Guangdong, China
Brand Name	ZXY
Usage	PCB board
Lead way	Pins
DC Resistance (mΩ)	Customized
Parameters	Customized
Exports	Worldwide
OEM/ODM	Acceptable

2.Specificities

1. Energy Storage Function

Copper Wire Magnetic Loop Filters are capable of storing energy in the form of a magnetic field and releasing it when needed.

2.Filtering Function

Used in circuits to filter out high-frequency noise or smooth out current, commonly used in power filters and signal filters.

3. Tuning Function

Used in conjunction with capacitors to tune circuits such as LC oscillator circuits and RF circuits.

4. Suppress transient interference

Capable of suppressing transient voltage and current changes in circuits to protect sensitive components.

5. Impedance characteristics

Exhibits inductive impedance (XL = 2πfL) to AC signals, the higher the frequency, the higher the inductive impedance.

6. Low DC resistance (DCR)

Low resistance materials (e.g. copper wire) are used to minimize energy loss.

7. High Q (Quality Factor)

High quality Copper Wire Magnetic Loop Filters with low loss and high efficiency for high frequency applications.

8.Temperature Stability

High quality inductors with stable performance over a wide temperature range.

9.Compact Design

Modern Copper Wire Magnetic Loop Filters are compact in design and suitable for high density circuit boards.

Mn-Zn Ferrite Coil Common Mode Choke Magnetic Loop Filter Copper Wire Wound 0
