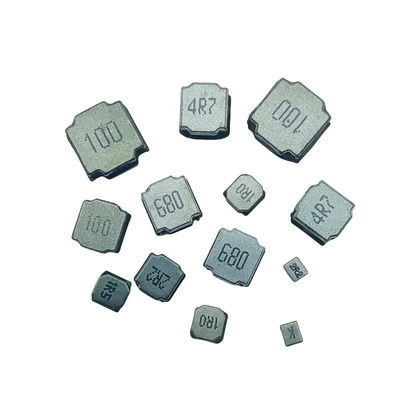

Magnetic Glue Wire Wound Chip SMD Inductor Magnetic Sealant Power Inductor

All Category

Chip Inductor

Ms. Chen

rhea@zxycoil.com

+8613554723725

Contact Now

Magnetic Glue Wire Wound Chip SMD Inductor Magnetic Sealant Power Inductor

Brand Name:	ZXY
Model Number:	ZXY-NR2512-100MT
MOQ:	Negotiable
Price:	Negotiable

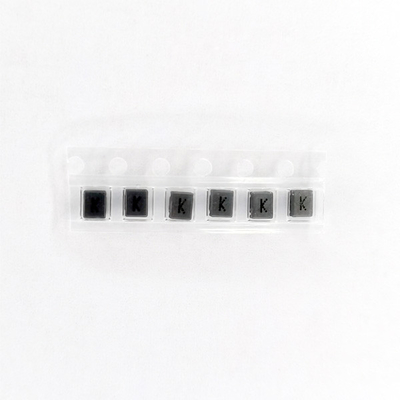

Packaging Details:	1000 pieces / Reel; size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,ISO9001,CE

Features:

High Current Low DCR

Product Name:

Wire Wound Chip SMD Inductor

Inductance Value:

10uH ±20% 690mΩ

OEM/ODM:

Acceptable

Shape:

Small

Strong Point:

Easy To Install

Supply Ability:

2000K-pcs/month

Highlight:

Wire Wound Miniaturized Power Inductors ED8

Magnetic SMD Power Inductor 1.0uH 22uH

Miniaturized Power Inductors 1.0uH 22uH

Product Description

Magnetic Glue Wire Wound Chip SMD Inductor Magnetic Sealant Power Inductor

1.Product Description

Wire Wound Chip SMD Inductor is a surface mount inductor component made by wire winding process, usually consisting of a magnetic core and coils wound on the core. It is made on a ceramic or other insulating substrate by winding metal wires into coils of a specific number of turns and shape through precision wirewound technology, and combining with the core to form a compact overall structure to realize the function of an inductor. The shape of this inductor is generally rectangular or cylindrical, with different size specifications, with weldable electrodes at both ends, which is convenient for surface mount installation in circuits such as Printed Circuit Boards (PCBs) and plays an important role in various electronic circuits for storing energy, filtering, choking, and transforming voltage.

Current saturation ratings available: 0.22 A to 11 A
DC resistance (max): 0.0078 Ω to 4.8 Ω
Terminal structure: plating
Resin type: standard

2. Characteristics

1. The magnetic glue coating structure is adopted, which greatly reduces the buzzing sound;

2. The electrode is directly metallized on the ferrite core, which has strong anti-drop impact and is durable;

3. Closed magnetic circuit structure design, less magnetic leakage, strong anti-EMI ability;

4. Under the same size condition, the rated current is 30% higher than that of traditional power inductors;

5. Small size, low profile, save space and save power;

6. Application range of products: LED lighting; multi-function mobile phones; flat-panel TV; Blu-ray DVD; set-top boxes; notebook computers, desktop computers, servers, graphics cards; portable, personal navigation systems, multimedia equipment;

7. The working temperature range of the product: -25 degrees Celsius --- +120 degrees Celsius;

Item	Value
Model Number	SMD power inductor
Place of Origin	China
Application	PAD,Notebook,Server,audio
Brand	ZXY
Supplier Type	Original factory
Tolerance	±20%
Operating Temperature	-40℃~+125℃
Rated Power	100KHz

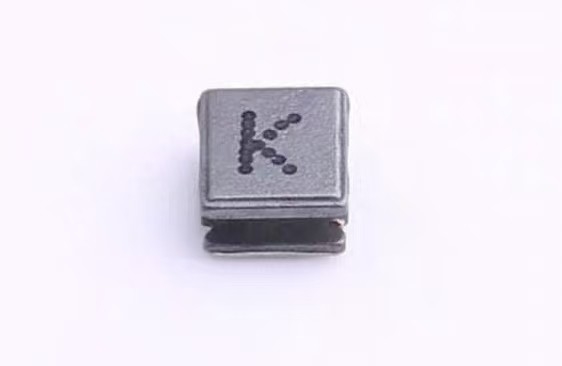

Magnetic Glue Wire Wound Chip SMD Inductor Magnetic Sealant Power Inductor 0

TYPE	A	B	C	D	E	F	G	H	Fig
ZXY-NR2512	2.5±0.3	2.0±0.3	1.05 Max	0.8±0.3	0.9±0.3	0.6	1.1	2	1

Magnetic Glue Wire Wound Chip SMD Inductor Magnetic Sealant Power Inductor 1

Magnetic Glue Wire Wound Chip SMD Inductor Magnetic Sealant Power Inductor 3

3.Other Recommended Produtcs

Magnetic Glue Wire Wound Chip SMD Inductor Magnetic Sealant Power Inductor 6

Tags:
