Current Transformer 440v To 220v Ferrite Transformer EE19 EE55 Pulse Transformer

Brand Name:	ED8
Model Number:	EE55 Horizontal direct plug
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

China,shenzhen city.

Certification:

RoHS,ISO9001-2001

Type:

EE55 Horizontal Direct Plug

Usage:

TVRs/VCRs,audio Equipmens,etc

Electricity:

High-frequency Transformer

Inductance:

0.5mH ~ 25mH

Frequency:

1KHz -500KHz

Pins:

5+5/5+6/6+6/4+6 Etc

Output Curren:

0.5 ~ 4.0A

Output Power:

Supply Ability:

1000K-pcs/month

Highlight:

Current Transformer 440v To 220v

EE55 Pulse Transformer

Ferrite Transformer EE19

Product Description

Customize Current Transformer 440v To 220v Ferrite Transformer Ee19 Ee55 Pulse Transformer

EE high frequency transformer has the characteristics of large window area, convenient winding, moderate price and high reliability. EE transformers are basic ferrite cores with stable performance, low cost and large current. Widely used in power conversion and line filtering. The volume is from small to large to meet the needs of various application circuits. If the temperature resistant 155℃ or 180℃ polyurethane enameled wire is used, it can meet different temperature conditions and is suitable for various switching power supplies, inverters, UPS, etc.

The metallization of the EE55 transformer on the ferrite core results in excellent shock resistance and damage-free durability. The unique closed magnetic circuit design can effectively reduce leakage flux and electromagnetic interference (EMI). Greatly improve the use efficiency, iron-based metal material core provides large saturation current. Automated production ensures high quality and consistency.

Specifications	EE55 Horizontal direct plug
Product material	Magnetic core/Bakelite frame/enamelled copper wire
Product Size	56mmx65mmx35mm

Model No.	High frequency transformer
Working Frequency Range	1KHz-1MHz
Output Power	1W-5000W
Output Voltage	0.1V-45000V
Output Current	0.001A-150A
Storage Temperature	-25℃ to +85℃
Working Temperature	-40℃ to +1250
Storage Humidity	30% to 70%
Certifications	ISO9001:2015, ISO14001:2015, IATF16949:2016, UL/cUL, ROHS, REACH, CQC
Designing Information	operating frequency
	circuit topology.
	input voltage range
	output power (V/A)
	mounting dimensions
	safety requirements
	product application

Product dimensions are as follows:

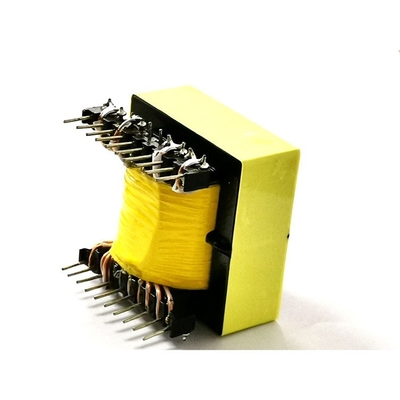

Current Transformer 440v To 220v Ferrite Transformer EE19 EE55 Pulse Transformer 0

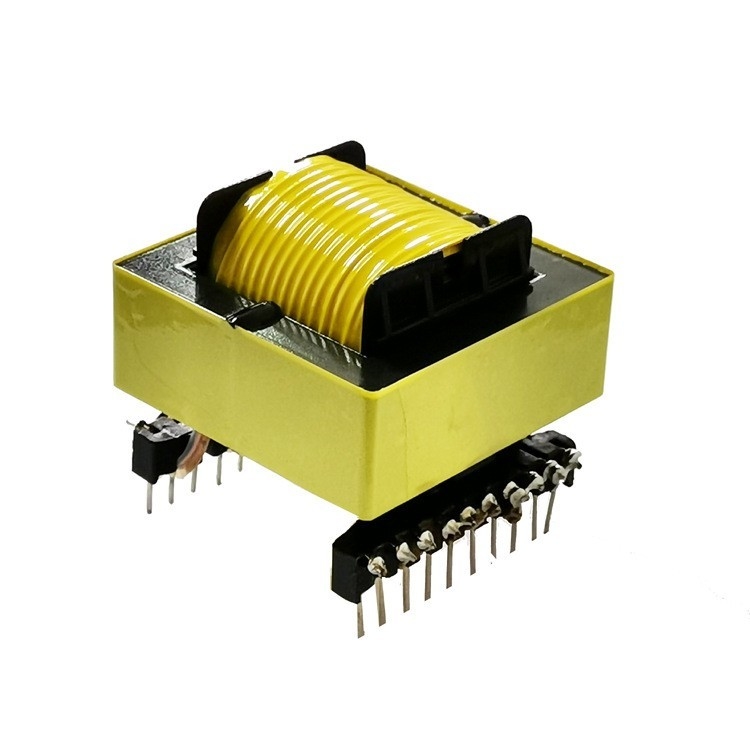

Current Transformer 440v To 220v Ferrite Transformer EE19 EE55 Pulse Transformer 1
