High Frequency Electrical Power Common Mode Choke Inductor 0.5mh

Brand Name:	ED8
Model Number:	UU9.8
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	100pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

China,shenzhen city.

Certification:

RoHS,ISO9001-2001

DC Resistance(Q/line)max.:

Inductance Value:

Customizable

Resistance Tolerance:

Current:

0.01-0.5A

Inductance:

0.5mh&customzied

Material:

Customzied

Supply Ability:

2000K-pcs/month

Highlight:

Electrical Power Common Mode Choke Inductor

0.5A High Frequency Inductor

Common Mode Choke Inductor 0.5mh

Product Description

UU9.8 0.5mh High Frequency Electrical PowerCommon Mode Choke Inductor

Product performance:
1. Entirely wrapped in UL heat shrinkable sleeve.
2. Large inductance range.
3. Good stability.

Model	Rated current(A)	Inductance (mH) min.	DC resistance(Q/line)max.
UU9.8	0.1	10	8
	0.2	8	6
	0.3	5	3
	0.5	2	1
	0.7	1	0.6
	1	0.5	0.3
	0.1	18	8
	0.2	14	6
	0.3	9	3
	0.5	3.4	1
	0.7	1.7	0.6
	1	0.8	0.3
UU10.5	0.3	10	3
	0.3	5	2
	0.5	5	1.5
	0.7	4	1
	1	3	0.5
	1]	2	0.5
	1	1	0.4
	1.3	1	0.3
	1.5	1	0.2
	2	0.6	0.15
UU16	0.4	30	2.8
	0.5	20	1.6
	0.6	10	1.2
	0.8	8	0.8
	1	6	0.5
	1]	4	0.4
	1.2	3.5	0.3
	1.5	1.5	0.15

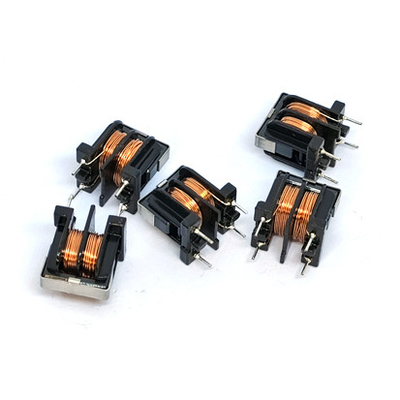

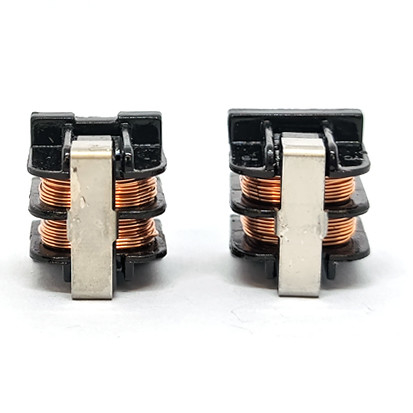

High Frequency Electrical Power Common Mode Choke Inductor 0.5mh 0

The main models of common mode inductors: UU9.8, 10.5, 16

Features:
1. The product comes with BASE, which is reliable after installation.
2. The two wires are wound in parallel, and the error of the L value is small.
3. The manganese-zinc core has high inductance and low loss.
4. EMI is small.

Function and application:
1. The purpose of EMI, to remove RF noise, make the circuit less susceptible to electromagnetic interference.
2. The differential mode of the inductor winding eliminates the inductive reactance generated by the inductor itself and suppresses the generation of EMI.
3. It has a wide range of uses and is used in the power supply of most electrical appliances.
4. Household appliances are used a lot, such as traditional TV, VCD, DVD, power amplifier, etc.
