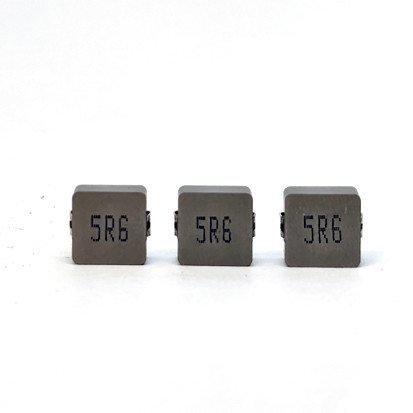

5.6uH Integrated Shielded Inductor High Power SMD Molding Power Inductor

Brand Name:	ZXY
Model Number:	ZXY-1050
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	1000pieces /per plate 4 trays in a box/ Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS,ISO9001,CE

Model Number:

ZXY-1050

Type:

Surface Mounting Inductor

Product Size:

10*10*5(mm)

Inductance:

5.6uh

Keywords:

5.6uH Integrated Shielded Inductor

Parameters:

Customized

Supply Ability:

2000K-pcs/month

Highlight:

5.6uh high power inductor

SMD high current inductor

high power inductor 5.6uh

Product Description

5.6uH Integrated Shielded Inductor High Power SMD Molding Power Inductor

1.Product Description

1.Magnetic shield structure, closed magnetic circuit, strong anti-electromagnetic interference,ultra-low buzzer, high density installation.

2.Small volume, large current, in high frequency and high temperature environment to maintain excellent temperature current and saturation currentcharacteristics.

3.Low loss alloy powder die casting, low resistance. Firm structure, high precision of products.

2.Characteristics

5.6uH Integrated Shielded Inductor Magnetic shielding structure, closed magnetic circuit, strong anti-electromagnetic interference, ultra-low buzzing sound, high-density installation.Small size, high current, range up to 60A, excellent in high frequency and high temperature environment.temperature rise current and saturation current characteristics.Low-loss alloy powder die-casting, low resistance. Firm structure and high product accuracy.Wide operating frequency range, up to 5MHz or more.RoHS, halogen-free environmental protection products.

3.Advantages of 5.6uH Integrated Shielded Inductor

1.Small size, small current, and can maintain good temperature rise current and saturation current characteristics at high temperatures;

2.The one-piece inductor opens the mold independently, has a number of design patents, and a number of independent knowledge products;

3. Low loss, low impedance, no lead terminals, small parasitic capacitance;

4.5.6uH Integrated Shielded Inductor adopts one-piece molding structure, which is sturdy and sturdy, with closed magnetic circuit, and has good magnetic shielding and EMI performance;

5.Magnetic shielding structure, closed magnetic circuit, strong anti-electromagnetic interference, extremely low buzzing sound, and high installation density;

6.Using low-loss alloy powder die-casting, low impedance;

7.One-piece molding structure, firm and firm, high product precision, and durable rust prevention;

Series	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)
ZXY-1050	10.3±0.2	10.5±1.0	5.0MAX	2.0±0.5	3.0±0.3
Part Number	LO Inductance (μH)±20%	Heat Rating Current Irms (A)	Saturation Current Isat(A)	DCR(mΩ)
Part Number	LO Inductance (μH)±20%	Heat Rating Current Irms (A)	Saturation Current Isat(A)	TYP.	MAX.
ZXY1050-R82M	0.82	17	32	1.5	1.8
ZXY1050-1R0M	1	16	30	2.1	2.5
ZXY1050-1R2M	1.2	15	28	3.1	3.5
ZXY1050-1R5M	1.5	14	27	3.6	4.1
ZXY1050-2R2M	2.2	12	22	6.5	8.2
ZXY1050-3R3M	3.3	10	19	9.2	10.8
ZXY1050-4R7M	4.7	8	16	13.6	15
ZXY1050-5R6M	5.6	7.5	15	18.4	20
ZXY1050-6R8M	6.8	6.5	13	19.6	22
ZXY1050-8R2M	8.2	6	12	21.9	25
ZXY1050-100M	10	5.5	11	23.5	30
ZXY1050-150M	15	4.5	9	48	55
ZXY1050-220M	22	4	7	58	66
ZXY1050-330M	33	3	6	89	105
ZXY1050-470M	47	3	5.5	124	145
ZXY1050-680M	68	1.5	3	171	190
ZXY1050-101M	100	1	2	268	290

5.6uH Integrated Shielded Inductor High Power SMD Molding Power Inductor 0

5.6uH Integrated Shielded Inductor High Power SMD Molding Power Inductor 1
