Flat 2mh 20uh 20W - 60W Choke Filter High Frequency Inductor High Power
  • name
  • name
  • name

Flat 2mh 20uh 20W - 60W Choke Filter High Frequency Inductor High Power

Brand Name: ED8
Model Number: T11212-20mH Horizontal
MOQ: 500/1000
Price: 0.1USD-0.3USD
Packaging Details: 100pieces / Carton size:380mm*325mm*345mm
Payment Terms: T/T paypal xtransfer
Detail Information
Product Description
Detail Information
Place of Origin:
China,shenzhen city.
Certification:
RoHS,ISO9001-2001
Encapsulation:
Horizontal
Inductance Value:
10mH-20mH
Size:
21mmx16.5mmx13mm
Current:
5-10A&customized
Feature1:
High Performance
Feature2:
More Stable
Supply Ability:
2000K-pcs/month
Highlight:

60W high frequency inductor

,

20uh shielded power inductors

,

20W high frequency inductor

Product Description

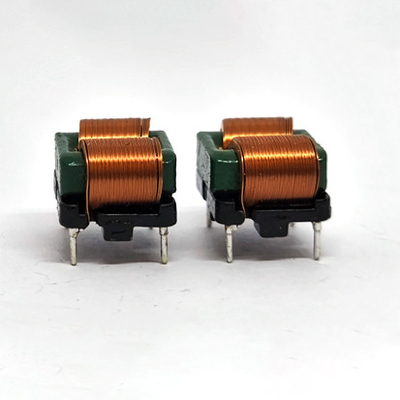

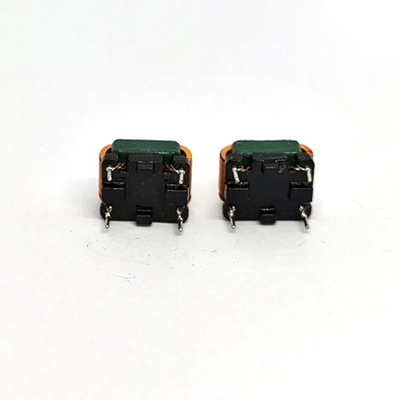

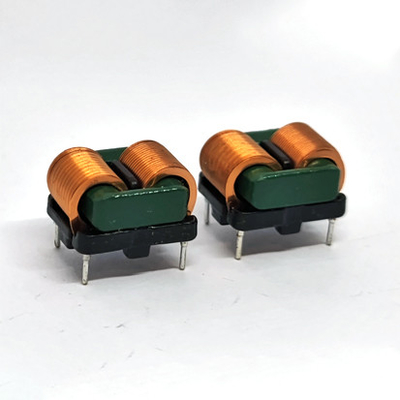

High-Power flat wire common-mode plug-in inductance T1515-20mH Horizontal



The coil part is a flat coil conductive electromagnetic wire, and the connecting feet at both ends bend towards the direction of the external circuit, and there is an insulating coating on the outer surface of the coil part and the joint foot, and only a part of the joint foot is exposed as the joint surface connected with the external circuit, so the joint foot is pre-shaped and put together with the flat coil part in the magnetic guide seat.



Characteristics and application of flat wire inductance

1.Use flat wire.

2. shielded inductance structure.

3.The DC resistance of the same size is the lowest.

4.It can ensure smooth decrease of current-resistant inductance value.

Flat 2mh 20uh 20W - 60W Choke Filter High Frequency Inductor High Power 0Flat 2mh 20uh 20W - 60W Choke Filter High Frequency Inductor High Power 1Flat 2mh 20uh 20W - 60W Choke Filter High Frequency Inductor High Power 2Flat 2mh 20uh 20W - 60W Choke Filter High Frequency Inductor High Power 3Flat 2mh 20uh 20W - 60W Choke Filter High Frequency Inductor High Power 4

Product Size:

Encapsulation: Vertical
Inductance value: 10-20mH
Size(Length X height): 21mmx16.5mmx13mm
Current: 5-10A



Flat 2mh 20uh 20W - 60W Choke Filter High Frequency Inductor High Power 5



Tags:

High Current Common Mode Inductor

Magnetic Ring Common Mode Inductor

Flat Wire Common Mode Filter
