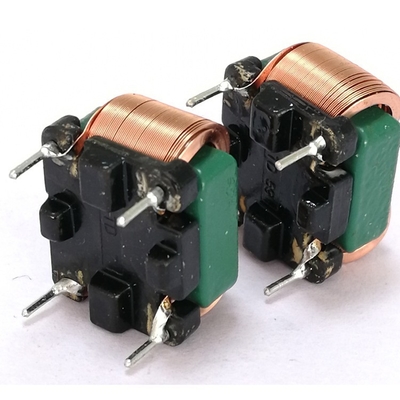

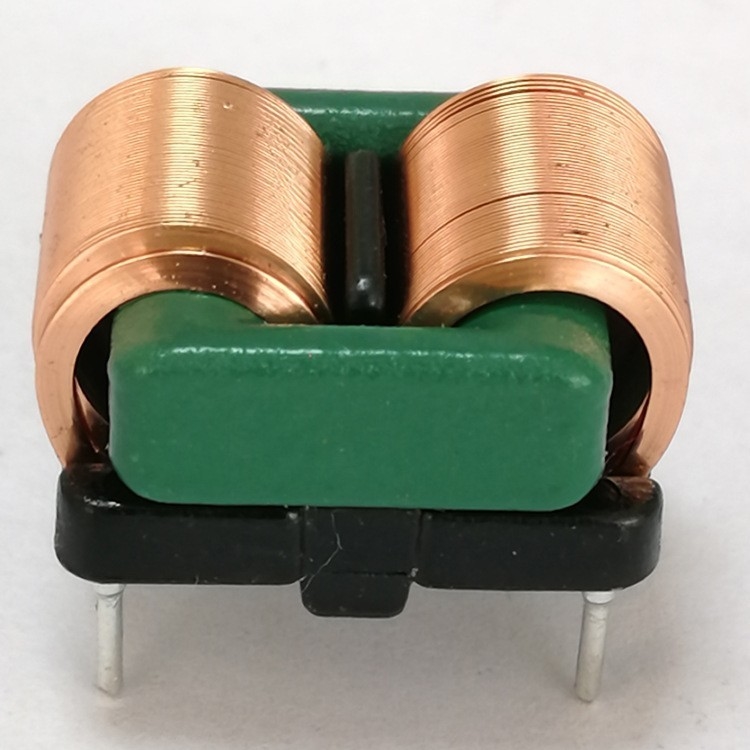

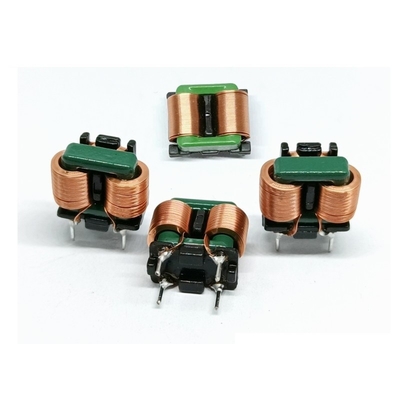

High Power Flat Wire Common Mode Inductor Plug-In Inductance Horizontal

Brand Name:	ZXY
Model Number:	T1515-20mH Horizontal
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	100pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

China,shenzhen city.

Certification:

RoHS,ISO9001-2001

Form Factor:

Horizontal

Inductance Value:

10mH-20mH Customizable

Size:

21mmx16.5mmx13mm

Current:

5-10A

Frequency - Self Resonant:

100kHz/1.0V

Number Of Coils:

Customizable

Lead Way:

Other Name:

Horizontal Common Mode Inductor Filter

Supply Ability:

2000K-pcs/month

Highlight:

Flat Wire Common Mode Inductor

Horizontal common mode choke inductance

High Power Common Mode Inductor

Product Description

High Power Flat Wire Common Mode Inductor Plug-In Inductance Horizontal

1.Product Description

Horizontal common mode inductor filter is a key component commonly used in electronic circuits to suppress electromagnetic interference. It adopts a horizontal structure design, which is easy to install on a printed circuit board (PCB) and can effectively save space, especially suitable for electronic products with high spatial layout requirements. Its working principle is based on electromagnetic induction. By winding two sets of symmetrical coils around the magnetic core, when a common mode interference signal passes through, the induced electromotive force generated by the two sets of coils is in the same direction, resulting in high impedance and suppression of the common mode signal; For normal differential mode signals, the induced electromotive forces generated by the two coils cancel each other out, with minimal impact on the differential mode signal. Horizontal common mode inductive filters are widely used in various electronic devices, such as computers, communication equipment, etc., which can effectively improve the electromagnetic compatibility of equipment and ensure the stable and reliable operation of electronic systems.

2.Features

Features	Descriptions
Horizontal Design	- Space - saving: Occupies less vertical space on the printed circuit board (PCB), enabling more compact PCB layouts. This is highly beneficial for devices with limited internal space, such as smartphones, tablets, and small - form - factor laptops.
Horizontal Design	- Easy Installation: Facilitates straightforward mounting on the PCB. The horizontal orientation allows for simple insertion into pre - drilled holes or attachment using surface - mount technology, reducing the complexity of the assembly process.
Common - mode Noise Suppression	- High Impedance to Common - mode Signals: Effectively blocks common - mode electromagnetic interference (EMI) by presenting a high impedance to such signals. This is achieved through the design of two symmetric windings on a magnetic core. When common - mode currents flow, the magnetic fields generated by the two windings add up, resulting in a significant impedance increase and thus suppressing the common - mode noise.
Common - mode Noise Suppression	- Wide Frequency Range: Can suppress common - mode noise over a broad frequency spectrum, from low - frequency power - line harmonics to high - frequency radio - frequency interference. This makes it suitable for various applications, including power supplies, data communication lines, and audio circuits.
Low Impact on Differential - mode Signals	- Low Impedance to Differential - mode Signals: For differential - mode signals, the magnetic fields generated by the two windings in the inductor cancel each other out. As a result, the inductor presents a relatively low impedance to differential - mode signals, allowing them to pass through with minimal attenuation. This ensures that the normal operation of the circuit, which relies on differential - mode signals for data transfer or signal processing, is not disrupted.
Magnetic Core Properties	- High Magnetic Permeability: The magnetic core used in the inductor typically has a high magnetic permeability. This property helps to concentrate the magnetic field, enhancing the inductor's ability to couple magnetic flux and thus improving its effectiveness in suppressing common - mode noise.
Magnetic Core Properties	- Low Core Loss: Minimizes energy losses in the magnetic core, reducing heat generation. This is crucial for maintaining the efficiency of the circuit, especially in applications where the inductor is required to handle high - current or high - frequency signals for extended periods.
Robust Construction	- Mechanical Stability: Built with a sturdy structure to withstand mechanical stresses during the manufacturing process, as well as in the end - use environment. This includes resistance to vibrations, shocks, and temperature variations, ensuring reliable performance over the product's lifespan.
Robust Construction	- Good Insulation: The windings and the magnetic core are well - insulated to prevent electrical short - circuits and to ensure electrical safety. The insulation materials also contribute to the inductor's ability to operate in different environmental conditions, such as high humidity or dusty environments.
