High Power Patch Inductance Shielded Variable DIP Power Inductor 10A To 30A

Brand Name:	ZXY
Model Number:	CPD1715 Customizable
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	100pieces / Carton size:380mm325mm345mm
Payment Terms:	T/T paypal xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

China,shenzhen city.

Certification:

RoHS,ISO9001-2001

Product Name:

DIP Power Inductor

Inductance Value:

Customizable

Size:

17mmx15mm

Current:

10-30A

Application:

Electrical Control

Installation Method:

Supply Ability:

2000K-pcs/month

Highlight:

Shielded Variable Inductor 30A

High Power variable inductance

22uh Miniaturized Power Inductors Customizable

Product Description

High Power Patch Inductance Shielded Variable DIP Power Inductor 10A To 30A

1.Product Description

DIP Power Inductor is a key component widely used in power processing in electronic circuits. It adopts a dual in-line packaging form, with pins arranged in two parallel rows for easy insertion into corresponding sockets on a printed circuit board (PCB). This installation method is not only simple to operate, but also has good stability on the PCB and can withstand certain mechanical stress.
From a functional perspective, it is mainly used for power conversion and energy storage. In a switching power supply circuit, when the switching transistor is conducting, the inductor stores energy; After the switch tube is turned off, the inductor releases energy to maintain the continuity of the current in the circuit, which stabilizes the output voltage and reduces ripple. The magnetic core is usually made of materials with high magnetic permeability, such as ferrite, which helps to improve the energy storage capacity and conversion efficiency of the inductor. The winding is wound with wires of appropriate diameter according to different power requirements to meet the high current carrying capacity, while reducing DC resistance and minimizing power loss. This inductor, with its high power processing capability, reliable installation method, and good electrical performance, has become an important component of many power related circuits such as power management and motor drive.

2.Features

Features	Descriptions
DIP Packaging	- Easy Installation: The Dual - In - line Package (DIP) design allows for straightforward insertion into the pre - drilled holes on a printed circuit board (PCB). This simplifies the assembly process, reducing the need for complex soldering techniques compared to some surface - mount components.
	- Mechanical Stability: The two rows of pins provide a stable mechanical connection to the PCB. This makes the inductor less likely to be dislodged due to vibrations or mechanical stress, ensuring reliable operation in various applications.
High Power Handling	- Large Current Capability: Designed to handle high currents, DIP power inductors can meet the power demands of circuits such as power supplies for high - performance processors, motor drivers, and LED lighting systems.
	- Low DC Resistance: They typically have a relatively low DC resistance, which helps to minimize power losses in the form of heat generation. This is crucial for maintaining high - efficiency power conversion in power - intensive applications.
Energy Storage and Conversion	- Effective Energy Storage: Capable of storing magnetic energy when current flows through it. In switching power supplies, for example, it stores energy during the "on" phase of the switch and releases it during the "off" phase, ensuring a continuous and stable output current.
	- Efficient Power Conversion: Facilitates efficient power conversion by enabling smooth transitions between different voltage levels. This is essential for maintaining stable voltage outputs in various electronic devices.
Magnetic Core Materials	- High Magnetic Permeability: Commonly use magnetic cores with high magnetic permeability, such as ferrite cores. This property helps to concentrate the magnetic field, increasing the inductance value and enhancing the inductor's ability to store and transfer energy.
	- Low Core Loss: The magnetic cores are designed to have low core losses, reducing the energy dissipated as heat in the core. This contributes to overall efficiency improvement, especially in high - frequency applications.
Wide Operating Temperature Range	- Thermal Stability: Can operate over a wide range of temperatures, from relatively low temperatures in cold environments to high temperatures in applications with significant heat generation. This makes them suitable for use in various industrial, automotive, and consumer electronics applications.
	- Reliable Performance: Maintains stable inductance and electrical characteristics across the operating temperature range, ensuring consistent and reliable performance of the circuit.
Compatibility and Versatility	- PCB Compatibility: Readily compatible with standard PCB designs that support DIP - type components. This allows for easy integration into existing circuit designs without the need for major modifications to the PCB layout.
	- Multiple Applications: Suitable for a wide variety of applications, including DC - DC converters, power factor correction circuits, and voltage regulators, due to its power - handling capabilities and electrical characteristics.

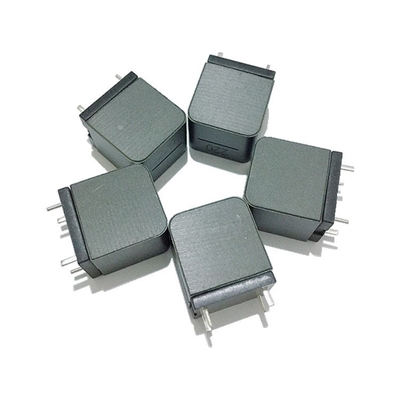

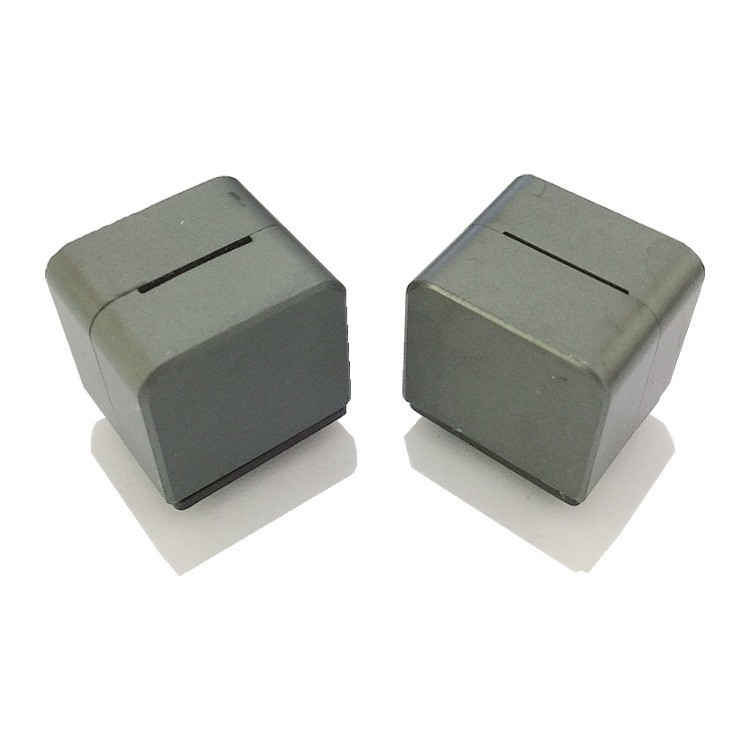

High Power Patch Inductance Shielded Variable DIP Power Inductor 10A To 30A 1
