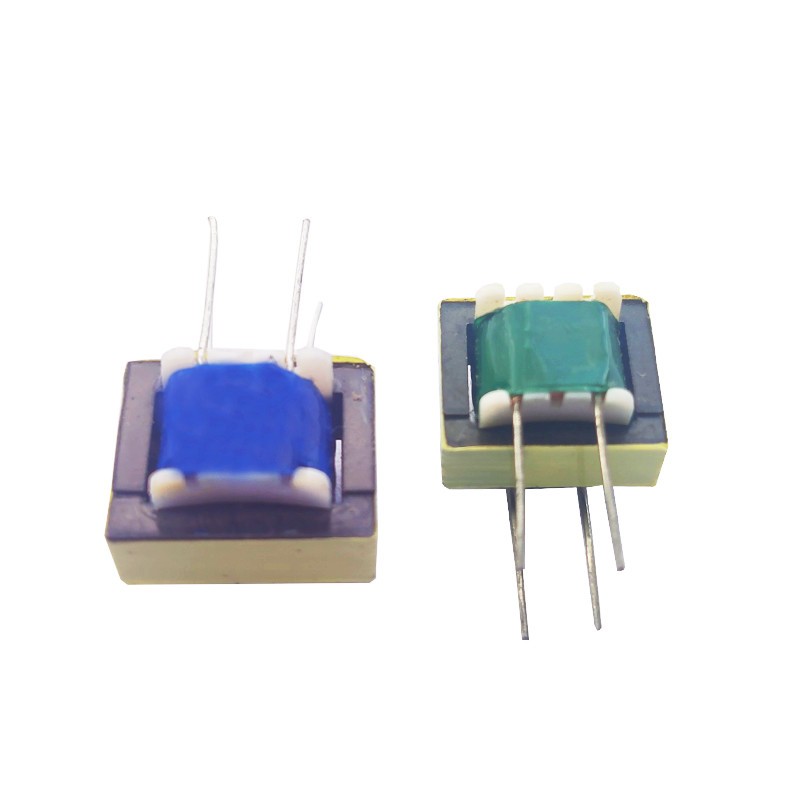

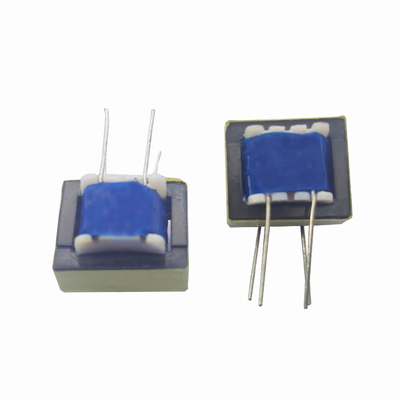

Small Scale EI14 Audio Isolation Transformer 600:600 Ohms 1:1 10K:10K

1.Product Description

The EI14 Audio Isolation Transformer is an essential device in audio systems, designed to enhance the quality and integrity of audio signals. Featuring an EI14 core structure, it provides a stable and efficient magnetic path for audio transmission. By utilizing the principle of electromagnetic induction, this transformer effectively isolates the audio circuit from electrical interference and ground loops, ensuring that the audio signals remain pure and undistorted. Its compact EI14 size makes it highly suitable for applications where space is limited, such as in compact audio equipment, audio interfaces, and small-scale audio processing units. Constructed with high-quality materials, it offers excellent electrical insulation and reliable performance, minimizing signal loss and maintaining the fidelity of the audio output. Whether for professional audio studios, home entertainment systems, or other audio applications, the EI14 Audio Isolation Transformer plays a crucial role in delivering clear, high-fidelity audio by providing effective isolation and stable signal transmission.

2.Function

1. Electrical isolation function: The core function of EI14 audio isolation transformer is to achieve electrical isolation, which isolates the input and output circuits of audio signals electrically through the principle of electromagnetic induction. This can effectively cut off the electrical connections between different circuits, prevent current interference and noise introduction caused by potential differences, grounding circuits, and other issues, and ensure the purity of audio signal transmission. For example, in some complex audio systems, there may be inconsistent grounding potentials between different devices. Using an EI14 audio isolation transformer can avoid the interference of AC noise and other noise caused by this.

2. Anti interference function: It can effectively suppress the impact of external electromagnetic interference on audio signals. In the modern electronic environment, there are various sources of electromagnetic interference, such as mobile phone signals and electromagnetic radiation from electrical devices. The iron core and winding structure of EI14 audio isolation transformer can shield and attenuate these interference signals, ensuring that the audio signal remains stable during transmission and is not affected by external interference, thereby ensuring audio quality.

3. Signal transmission and conversion function: It can achieve the transmission of audio signals and appropriately convert the voltage and current of the signals as needed. By designing the winding turns ratio of the transformer reasonably, the input audio signal can be stepped up or down to meet the signal level requirements of different audio devices. Meanwhile, it can also ensure power matching of the signal during transmission, enabling efficient transmission of audio signals from input devices to output devices.

4. Equipment protection function: When abnormal situations such as overvoltage and overcurrent occur in the audio system, the EI14 audio isolation transformer can play a certain buffering and protection role. It can limit the magnitude of the current, prevent excessive current from damaging audio equipment, and extend the service life of the equipment. For example, at the moment when the device power is turned on or off, surge currents may occur. Audio isolation transformers can effectively suppress this surge current and protect the safety of the device.

5. Improve sound quality function: Due to its excellent electrical isolation and anti-interference performance, the EI14 audio isolation transformer can reduce noise and distortion in audio signals, thereby improving sound quality. It can make audio signals clearer and purer, restore more realistic sound effects, improve the overall sound quality performance of the audio system, and meet users' needs for high-quality audio.
