High Current Power Inductor Ferrite Skeleton For Resonante Schaltnetzteile

1.Product Description

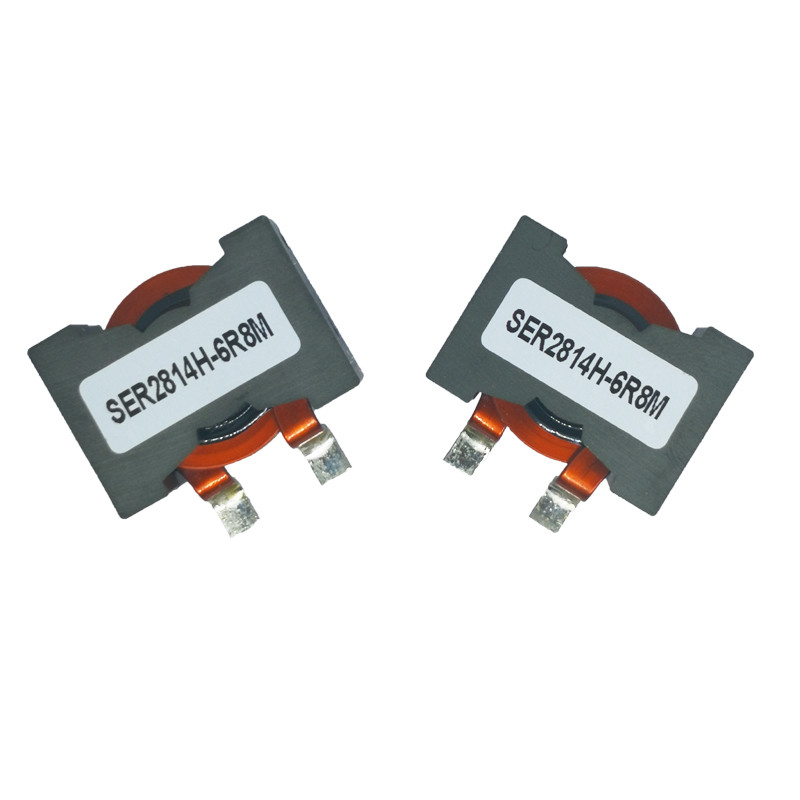

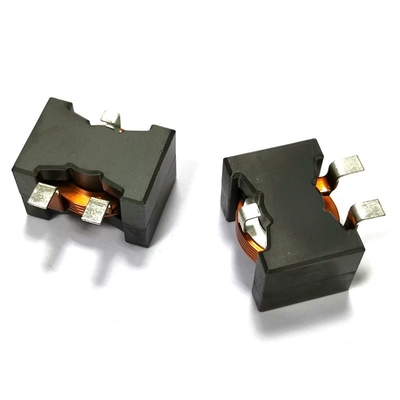

A Ferrite Skeleton Chip Inductor is a compact and highly integrated electronic component. It consists of a ferrite core, which is made of a magnetic ceramic material with excellent magnetic properties. The ferrite core plays a crucial role in enhancing the inductance value and confining the magnetic field, reducing magnetic flux leakage. The "skeleton" part refers to the structure that supports and holds the winding of the inductor. This design allows for precise winding of the coil, which is often made of conductive wire, around the ferrite core. Being a chip inductor, it is designed to be surface - mounted directly onto printed circuit boards (PCBs), enabling easy integration into modern, miniaturized electronic devices. It is widely used in various electronic circuits, such as power supply circuits, radio - frequency (RF) circuits, and filtering circuits. In power supply circuits, it helps in energy storage and filtering to ensure stable DC output. In RF circuits, it is used for impedance matching and signal filtering. In filtering circuits, it effectively blocks high - frequency noise while allowing the desired low - frequency signals to pass through, contributing to the overall performance and reliability of the electronic device.

2.Features

1. Simple surface mount technology: Using surface mount technology (SMT), ferrite skeleton chip inductors can be directly mounted on the surface of printed circuit boards. This installation method is simple to operate and easy to achieve automated production, greatly improving production efficiency and reducing production costs. At the same time, surface mount technology can improve the electrical connection stability between inductors and circuit boards, reducing circuit failures caused by poor connections.

2. Wide application fields: Due to its excellent performance and compact structure, ferrite skeleton chip inductors are widely used in various electronic devices. From consumer electronics products such as mobile phones, computers, televisions, to industrial control equipment, communication base stations, etc., their presence is indispensable. In different application scenarios, it plays important roles such as filtering, energy storage, and impedance matching, and is one of the indispensable basic components in modern electronic circuits.

3.Advantages

The Ferrite Skeleton Chip Inductor offers high - performance magnetics enabling high inductance in small spaces, has a compact structure for easy installation which suits miniaturized electronics and efficient production, provides stable electrical performance across wide frequencies and temperatures, and is cost - effective in terms of both production and long - term use.
