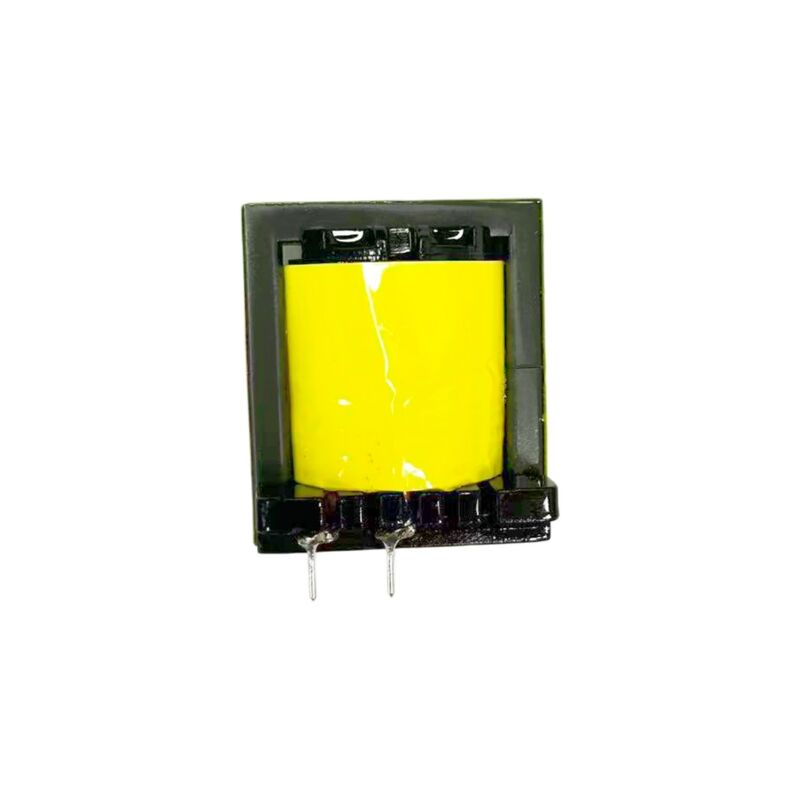

ER39 High Frequency Transformer with EE39 Ferrite Core for Low Core Loss and High Saturation Flux Density in SMPS Power Supply

Brand Name: ZXY
Model Number: ZXY-ER39
MOQ: Negotiable
Price: Negotiable
Packaging Details: Carton
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen Guangdong
Certification:
RoHS、ISO9001、CE
Highlight:

EE39 Ferrite Core High Frequency Transformer

,

Low Core Loss Ferrite Core Transformer

,

High Saturation Flux Density SMPS Transformer

Product Description
ER39 High Frequency Transformer with EE39 Ferrite Core for SMPS Power Supply
This ER39 high frequency transformer features a high-efficiency EE39 ferrite core, designed specifically for SMPS (switching mode power supply) applications. It delivers stable performance with low core loss and high saturation flux density, making it ideal for inverters, power supplies, and other high-frequency power conversion systems. Custom winding configurations and electrical parameters are available to meet specific design requirements.
Primary Applications
  • Solar Inverter: Used for DC-AC conversion in photovoltaic systems to achieve efficient energy transfer
  • Switching Power Supply (SMPS): Suitable for industrial power supplies, communication power supplies, server power supplies, etc., providing stable voltage conversion
  • Electric Vehicle Charging Station: Used for AC/DC charging stations and vehicle chargers, supporting high-frequency power conversion
  • Uninterruptible Power Supply (UPS): Ensuring continuous power supply for critical equipment in the event of a power outage requires high reliability
  • Industrial Automation Equipment: Used for industrial control equipment such as frequency converters, servo drives, PLCs, etc.
  • Battery Charger: Suitable for electric tools, energy storage systems, and electric vehicle battery charging applications
  • Power Electronics Converter: Widely used in power electronic topologies such as DC-DC converters and AC-DC converters
Performance Characteristics
Feature Description
Core Material High-efficiency EE39 ferrite core
Power Range Up to 5kW (depending on design)
Operating Frequency 20kHz - 200kHz
Core Loss Low core loss for improved efficiency
Saturation Flux Density High saturation flux density
EMI Performance Excellent magnetic shielding with low electromagnetic interference
Thermal Management Low temperature rise, suitable for continuous operation
Customization Custom winding configurations, turns ratio, and electrical parameters available
Applications Solar inverters, SMPS, EV chargers, UPS, industrial power supplies
Product Images
ER39 High Frequency Transformer with EE39 Ferrite Core for Low Core Loss and High Saturation Flux Density in SMPS Power Supply 0
ER39 High Frequency Transformer with EE39 Ferrite Core for Low Core Loss and High Saturation Flux Density in SMPS Power Supply 1
ER39 High Frequency Transformer with EE39 Ferrite Core for Low Core Loss and High Saturation Flux Density in SMPS Power Supply 2
ER39 High Frequency Transformer with EE39 Ferrite Core for Low Core Loss and High Saturation Flux Density in SMPS Power Supply 3
ER39 High Frequency Transformer with EE39 Ferrite Core for Low Core Loss and High Saturation Flux Density in SMPS Power Supply 4
ER39 High Frequency Transformer with EE39 Ferrite Core for Low Core Loss and High Saturation Flux Density in SMPS Power Supply 5
ER39 High Frequency Transformer with EE39 Ferrite Core for Low Core Loss and High Saturation Flux Density in SMPS Power Supply 6
ER39 High Frequency Transformer with EE39 Ferrite Core for Low Core Loss and High Saturation Flux Density in SMPS Power Supply 7
