ETD34 Vertical High Frequency Transformer Isolation Ferrite Core for Power Supply
  • name
  • name
  • name

ETD34 Vertical High Frequency Transformer Isolation Ferrite Core for Power Supply

Brand Name: ZXY
Model Number: ETD34
MOQ: Negotiable
Price: Negotiable
Packaging Details: Carton
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen Guangdong
Certification:
RoHS、ISO9001、CE
Highlight:

Vertical Mounting High Frequency Transformer

,

4000VAC Isolation Switching Power Transformer

,

Ferrite Core ETD34 Transformer

Product Description
ETD34 立式高频变压器
高性能开关电源变压器,具有优异的电气隔离特性,适用于要求严苛的工业应用.
产品概述
ETD34 立式高频开关电源变压器采用精密设计的初级和次级绕组,具有卓越的电气隔离性能,绝缘层和物理间距均经过精确控制.该变压器可承受 3000VAC 至 4000VAC 的电压测试,有效防止高压击穿,并保护操作人员免受触电危险.
主要功能
  • 电压转换和功率传输:利用高频磁芯耦合实现初级线圈和次级线圈之间的高效能量传输,将输入直流电压转换为所需的输出电压.
  • 电气隔离和安全保护:在初级(高压)和次级(低压)侧之间提供物理和电气隔离,确保用户安全并切断共模噪声传播路径.
  • 储能和调节:在反激式拓扑结构中,它既可以作为变压器,也可以作为储能电感器,在导通期间存储磁能,并在开关管关闭期间释放到次级负载.
性能特征
功能类别 性能特征 典型值/描述
电气性能 高工作频率 工作频率范围为 20 kHz 至 500 kHz,可实现高功率密度和更小的元件尺寸
电气性能 转换效率 ETD磁芯形状可减少铜损和磁芯损耗,效率可达85%-90%以上.
电气性能 功率处理范围 根据电路拓扑结构(反激式,正激式,LLC),功率范围为 15W 至 150W 以上.
安全与隔离 高耐受电压 初级到次级隔离额定值 3000VAC 至 4000VAC
安全与隔离 绝缘等级 符合UL,CE标准,并具有增强型绝缘层
磁性与热学 低芯损 铁氧体材料(PC40,PC44)可最大限度地减少磁滞和涡流损耗.
磁性与热学 低漏感 线圈结构和绕线技术控制漏感
磁性与热学 工作温度范围 在恶劣环境下,-40°C 至 +125°C 的温度范围内稳定运行
机械的 垂直安装 节省PCB空间并有助于更好的散热
机械的 磁屏蔽 闭芯式ETD设计可降低电磁干扰(EMI)

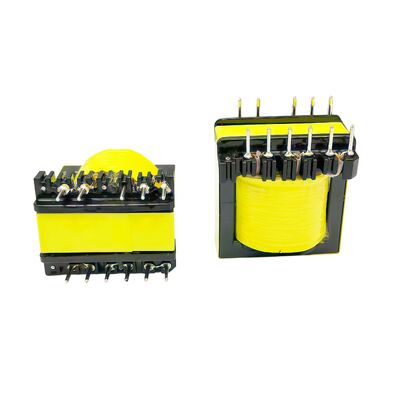

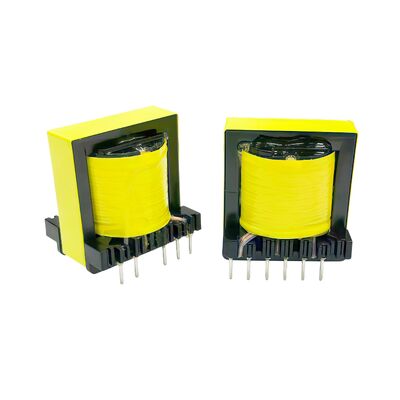

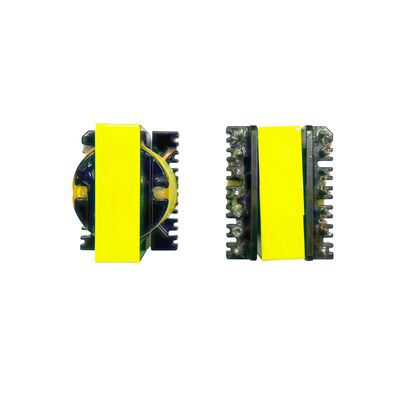

产品图片
