UU10.5 UU Series Vertical Common Mode Filter EMI Power Choke with 10mm * 13mm Pitch and High Permeability Ferrite Core
  • name
  • name
  • name

UU10.5 UU Series Vertical Common Mode Filter EMI Power Choke with 10mm * 13mm Pitch and High Permeability Ferrite Core

Brand Name: ZXY
Model Number: UU10.5
MOQ: Negotiable
Price: Negotiable
Packaging Details: 3-4weeks
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen Guangdong
Certification:
RoHS、ISO9001、CE
Highlight:

Vertical Plug-in Packaging Common Mode Filter

,

10mm * 13mm Pitch EMI Power Choke

,

High Permeability Ferrite Core Common Mode Inductor

Product Description
UU10.5 UU Series Vertical Common Mode Line Filters
Vertical electronic common mode line filters EMI type power choke for filter pitch 10 × 13mm, designed to suppress common mode electromagnetic interference on power and signal lines.
Product Overview
The UU10.5 series vertical common mode filter features a high permeability ferrite core with closed magnetic circuit design. With vertical plug-in packaging and precise 10mm × 13mm pin spacing, it ensures accurate PCB layout compatibility. The two-section winding with single-layer coil design reduces stray capacitance, providing high impedance and excellent noise suppression at high frequencies.
Key Functions
  • Common Mode EMI Suppression: Effectively blocks common mode interference currents while allowing differential signals to pass without attenuation
  • High-Frequency Noise Filtering: Maintains high impedance across higher frequency ranges for superior high-frequency noise suppression
  • Circuit Isolation & Protection: Acts as barrier between equipment and power network, preventing noise transmission in both directions
  • Enhanced System Stability: Closed magnetic circuit design reduces magnetic leakage and improves impact resistance
  • EMC Compliance: Helps electronic products meet CCC, UL, CE and other electromagnetic compatibility standards
Performance Characteristics
Feature Category Performance Characteristic Typical Value / Description
Core & Electrical Core Material High-permeability Ferrite
Core & Electrical Number of Lines 2
Core & Electrical Inductance Range 0.6 mH to 50 mH (Test Frequency: 1kHz)
Core & Electrical DC Resistance (DCR) 0.2Ω to 3Ω (depending on inductance)
Core & Electrical Rated Current 0.3A to 2.0A (inversely related to inductance)
Core & Electrical High-Frequency Performance High impedance at applicable frequencies; High self-resonant frequency
Mechanical & Structural Mounting Type Through Hole (DIP)
Mechanical & Structural Standard Pitch Size 10mm × 13mm (Pin spacing)
Mechanical & Structural Package / Case Vertical, DIP-4P
Mechanical & Structural Winding Structure Two-section bobbin with single-layer coil to reduce stray capacitance
Mechanical & Structural Design Closed magnetic circuit to reduce leakage flux
Environmental & Safety Operating Temperature -40°C to +125°C
Environmental & Safety Insulation Resistance 100MΩ Minimum
Environmental & Safety Withstand Voltage Winding to Winding: ≥1.5 KVAC; 1000 VAC / 0.8 KV
Environmental & Safety Compliance RoHS, REACH
Product Images

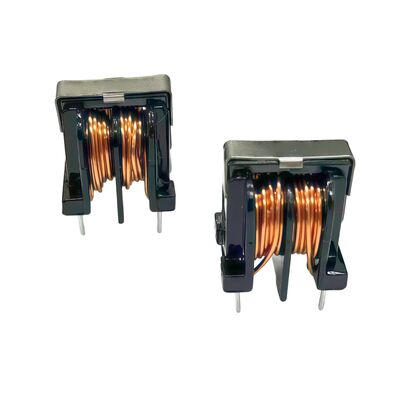

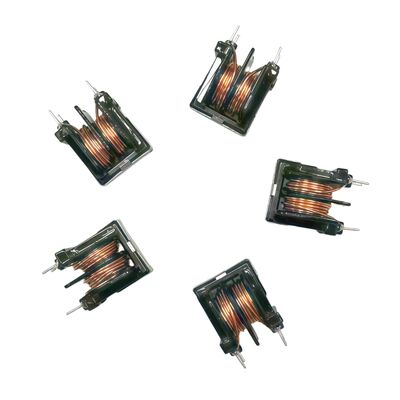

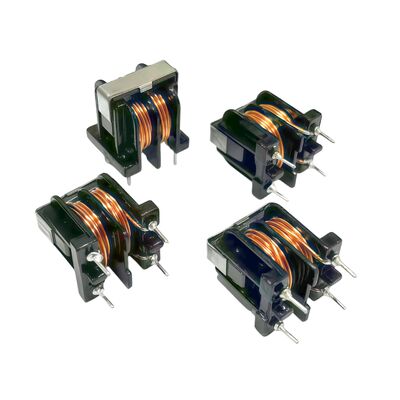

UU10.5 UU Series Vertical Common Mode Filter EMI Power Choke with 10mm * 13mm Pitch and High Permeability Ferrite Core 0 UU10.5 UU Series Vertical Common Mode Filter EMI Power Choke with 10mm * 13mm Pitch and High Permeability Ferrite Core 1 UU10.5 UU Series Vertical Common Mode Filter EMI Power Choke with 10mm * 13mm Pitch and High Permeability Ferrite Core 2 UU10.5 UU Series Vertical Common Mode Filter EMI Power Choke with 10mm * 13mm Pitch and High Permeability Ferrite Core 3 UU10.5 UU Series Vertical Common Mode Filter EMI Power Choke with 10mm * 13mm Pitch and High Permeability Ferrite Core 4 UU10.5 UU Series Vertical Common Mode Filter EMI Power Choke with 10mm * 13mm Pitch and High Permeability Ferrite Core 5
