Wireless Charging Coil

Customized 90mm Diameter Double-layer Winding High-power Wireless Charging Coil for Smart Home Appliances

All Category

Chip Inductor

Ms. Chen

rhea@zxycoil.com

+8613554723725

Contact Now

Customized 90mm Diameter Double-layer Winding High-power Wireless Charging Coil for Smart Home Appliances

Brand Name:	ZXY
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Carton

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen Guangdong

Certification:

RoHS、ISO9001、CE

Highlight:

90mm Diameter Wireless Charging Coil

Double-layer Winding Wireless Charging Coil

High-power Transmission Wireless Charging Coil

Product Description

Customized Wireless Charging Coil Double-layer 90mm High-power Application For Smart Home Appliances

This customized double-layer coil is specifically designed for high-power wireless charging needs of smart home appliances. Featuring a large 90mm diameter and unique dual winding structure, it significantly enhances magnetic field coverage and transmission efficiency. The coil provides stable, fast contactless power supply for medium-sized home appliances such as robotic vacuum cleaners, smart speakers, and kitchen appliances, while balancing heat dissipation performance and installation flexibility to create cleaner, safer modern smart home spaces.

Key Features

High Power and High-Efficiency Transmission: Double-layer tightly wound structure significantly improves magnetic field strength and coupling efficiency, supporting wireless fast charging protocols from 15W to 30W+ for medium-sized equipment.
Wide Range Precise Alignment: 90mm large-sized coil design with optimized magnetic flux distribution expands the effective charging area, ensuring stable power transmission even with device misalignment.
Excellent Heat Dissipation and Stability: High-temperature resistant enameled wire and magnetic shielding materials suppress eddy current losses and heat generation, enabling stable long-term operation with external cooling solutions.
Integration and Compatibility: Customizable shape and interface design for easy integration into products, with electrical characteristics adaptable to mainstream wireless charging standards like Qi protocol extensions.
Intelligent Cord-Free Design: Enables true "tailless" power supply for smart home appliances through wireless charging docks, supporting automated charging in smart home ecosystems.
Comprehensive Safety Protection: Built-in overcurrent, overvoltage, overtemperature, and foreign object detection (FOD) protection circuits ensure automatic power shutdown during abnormal conditions.

Performance Characteristics

Feature Category	Performance Characteristic	Description / Benefit
Core Structure & Power	Double-layer Winding Design	Enhances magnetic field coupling for significantly higher power transfer efficiency compared to single-layer coils.
Core Structure & Power	Large 90mm Diameter	Provides a wide charging area, offering excellent positional freedom and misalignment tolerance for devices.
Core Structure & Power	High-Power Output	Supports charging protocols from 15W up to 30W+ (customizable), suitable for medium-power smart home appliances.
Efficiency & Stability	High Transmission Efficiency	Optimized design minimizes energy loss, leading to faster charging and reduced heat generation.
Efficiency & Stability	Excellent Thermal Management	Utilizes high-temperature resistant materials and design to ensure stable performance under continuous high-power operation.
Efficiency & Stability	Stable Output Under Misalignment	Maintains consistent power delivery even when the receiving device is not perfectly centered on the coil.
Integration & Compatibility	Customizable Form Factor	Coil shape and connector interfaces can be tailored to fit the specific internal layout of the host appliance.
Integration & Compatibility	Protocol Compatibility	Designed to be compatible with common high-power wireless charging standards (e.g., extended Qi profiles).
Safety & Reliability	Comprehensive Protection Circuits	Supports integrated Foreign Object Detection (FOD), over-current, over-voltage, and over-temperature protection.
Safety & Reliability	EMI Shielding	Includes magnetic shielding to reduce electromagnetic interference and improve safety for surrounding components.
Application Value	Enables True Cord-Free Design	Allows appliances to be seamlessly powered or charged via a docking station, eliminating manual plugging.
Application Value	Reliability for Automated Systems	Ideal for integration into autonomous systems (e.g., robotic vacuum docks) where consistent, reliable connection is critical.

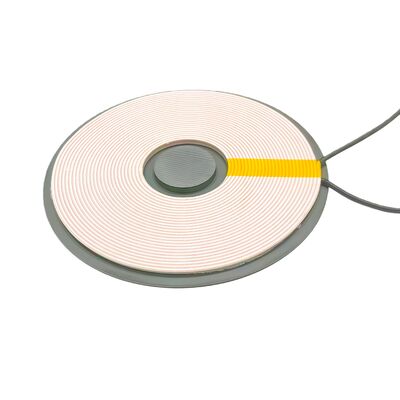

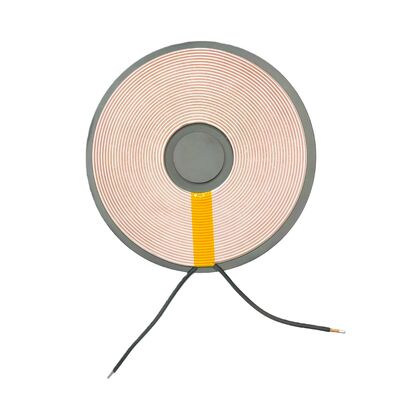

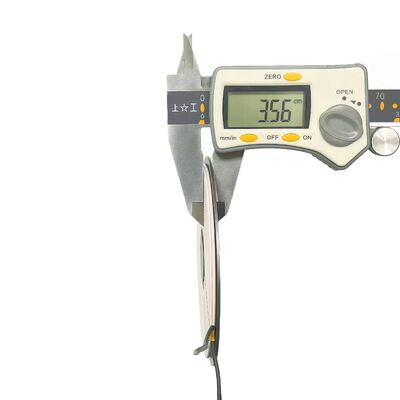

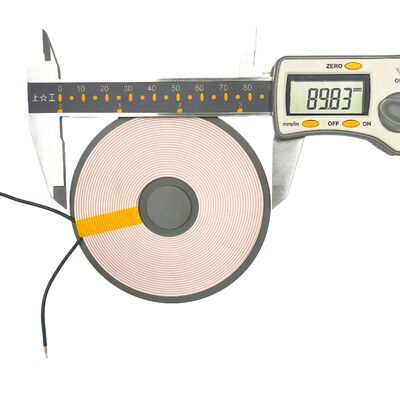

Product Images
