Professional Audio Isolation Transformer with 600:600 Ω Balanced Transmission and 1+1:1+1 Dual Isolation for Galvanic Noise Reduction

Brand Name: ZXY
Model Number: ZXY2207
MOQ: Negotiable
Price: Negotiable
Packaging Details: Carton
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen Guangdong
Certification:
RoHS、ISO9001、CE
Highlight:

600:600 Ω Balanced Transmission Audio Isolation Transformer

,

1+1:1+1 Dual Isolation Professional Audio Transformer

,

Galvanic Isolation Balanced Audio Transformer

Product Description
Professional Grade Audio Isolation Transformer ZXY2207-600:600
Balanced Transmission, 1+1:1+1 Dual Isolation
The ZXY2207 is a professional grade audio isolation transformer featuring balanced 600:600 Ω impedance, specifically engineered for transmitting high-quality balanced audio signals. Its innovative 1+1:1+1 dual isolation winding structure physically eliminates ground loops between connected equipment, completely removing AC hum and buzzing while effectively suppressing RF interference and power noise. This transformer is essential for enhancing signal-to-noise ratio and reliability in recording studios, live sound reinforcement, and broadcasting systems.
Core Features
  • Professional Balanced Transmission: Precision 600Ω:600Ω impedance matching design optimized for professional audio balanced circuits (XLR), ensuring signal integrity and low-loss transmission.
  • Dual Isolation Purification: Unique 1+1:1+1 winding structure with independent isolation for each signal group (hot and cold ends), delivering exceptional common mode rejection ratio (CMRR) to physically eliminate ground loop noise.
  • Comprehensive Noise Suppression: Effectively suppresses ground loop noise, radio frequency interference (RFI), power supply noise, and other electromagnetic interference to significantly improve system signal-to-noise ratio.
  • Equipment Protection & Safety: Creates an electrical isolation barrier between devices to prevent equipment damage from voltage differences or grounding faults, protecting valuable recording and amplification equipment.
  • All-Metal Shielded Enclosure: Robust metal casing provides additional electromagnetic shielding to resist external interference and ensure stable transformer operation.
  • High Fidelity & Reliability: Utilizes high-quality magnetic cores and enameled wire to maintain low distortion and flat frequency response (typically 20Hz-20kHz), ensuring audio signal authenticity. Durable construction suitable for demanding environments including live sound and fixed installations.
Performance Characteristics
Feature Category Specific Performance & Technical Characteristics Benefit / Purpose
Core Isolation & Noise Rejection • True 1+1:1+1 Independent Winding Structure
• Exceptionally High Common-Mode Rejection Ratio (CMRR)
• Galvanic Isolation (Complete ground lift)		 Eliminates ground loop hum & buzz by physically breaking the ground path between connected equipment. Blocks RFI and power supply noise.
Signal Integrity & Audio Performance • Precision 600Ω:600Ω Balanced Impedance
• Wide, Flat Frequency Response (e.g., 20Hz - 20kHz)
• Low Distortion & Low Insertion Loss
• High Signal-to-Noise Ratio (SNR)		 Ensures transparent, high-fidelity audio transmission optimized for professional line-level gear. Maintains signal clarity and dynamics.
Build & Protection • All-Metal Shielded Enclosure
• Robust Chassis & Connectors (XLR)
• High-Grade Magnetic Core & Copper Windings		 Provides superior EMI/RFI shielding. Ensures durability and reliability for studio, stage, and installation use. Protects equipment from potential voltage differences.
Application & Compatibility • Designed for Professional Balanced Line-Level signals
• Compatible with mixers, interfaces, processors, amplifiers, etc.
• Passive Design - No external power required		 Versatile solution for studios, live sound, broadcast, and AV systems. Simple integration into any balanced audio path for instant noise suppression.

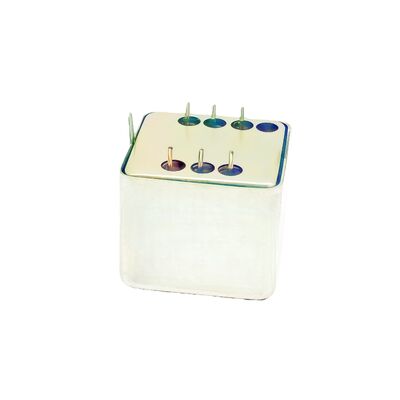

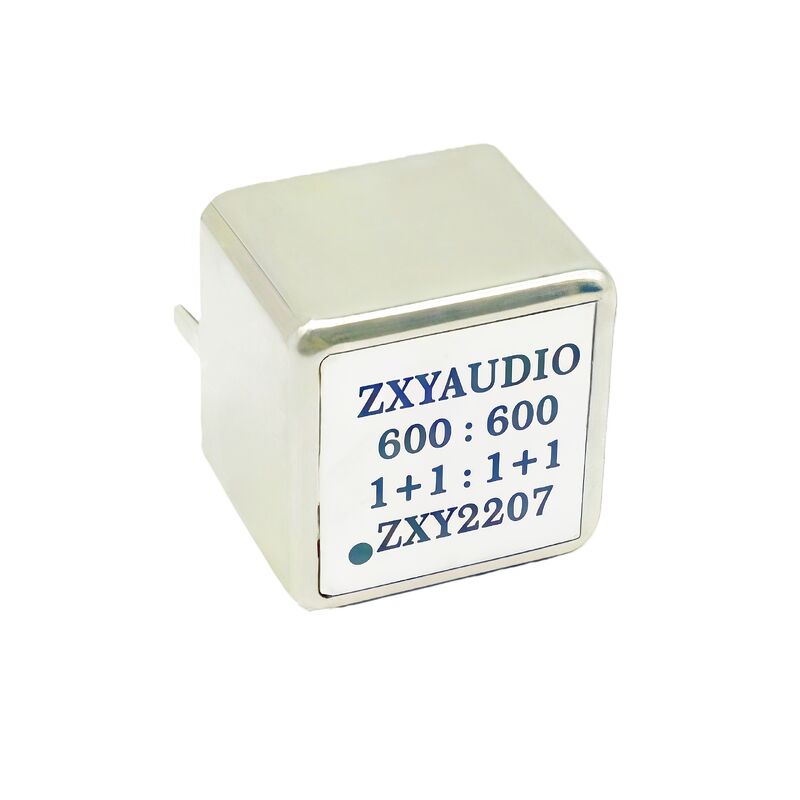

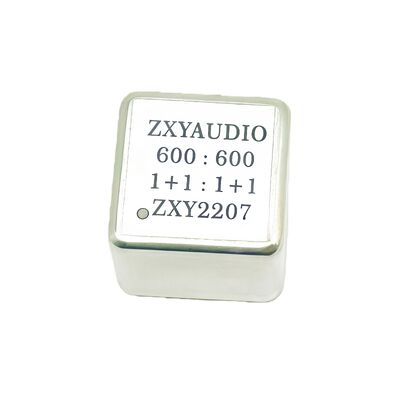

Product Images
Professional Audio Isolation Transformer with 600:600 Ω Balanced Transmission and 1+1:1+1 Dual Isolation for Galvanic Noise Reduction 0 Professional Audio Isolation Transformer with 600:600 Ω Balanced Transmission and 1+1:1+1 Dual Isolation for Galvanic Noise Reduction 1 Professional Audio Isolation Transformer with 600:600 Ω Balanced Transmission and 1+1:1+1 Dual Isolation for Galvanic Noise Reduction 2 Professional Audio Isolation Transformer with 600:600 Ω Balanced Transmission and 1+1:1+1 Dual Isolation for Galvanic Noise Reduction 3 Professional Audio Isolation Transformer with 600:600 Ω Balanced Transmission and 1+1:1+1 Dual Isolation for Galvanic Noise Reduction 4 Professional Audio Isolation Transformer with 600:600 Ω Balanced Transmission and 1+1:1+1 Dual Isolation for Galvanic Noise Reduction 5 Professional Audio Isolation Transformer with 600:600 Ω Balanced Transmission and 1+1:1+1 Dual Isolation for Galvanic Noise Reduction 6
