E28 High Frequency Transformer with EE28 Ferrite Core for High Efficiency Power Conversion and 3kV AC Isolation in Compact Design

Brand Name: ZXY
Model Number: ZXY-E28
MOQ: Negotiable
Price: Negotiable
Packaging Details: Carton
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen Guangdong
Certification:
RoHS、ISO9001、CE
Highlight:

High Efficiency High Frequency Transformer

,

3kV AC Isolation Power Conversion Core

,

Compact Size EE28 Ferrite Core

Product Description
E28 High Frequency Transformer
High performance power conversion core specifically designed for switching power supplies, delivering exceptional efficiency and stability in a compact E28 ferrite package.
Product Overview
The E28 high-frequency transformer is the cornerstone of high-performance switching power supplies, offering high power density in a compact form, superior energy efficiency to reduce thermal stress, and excellent reliability for demanding applications.
Core Functions
Energy Conversion & Transfer: Efficient power conversion and transmission through voltage/current transformation based on turns ratio, with energy storage and release capabilities in various topologies.
Safety & Isolation: Provides reliable high-voltage electrical isolation between primary and secondary sides, meeting safety standards and protecting equipment and personnel.
Performance Optimization: Enables impedance matching, suppresses common mode interference, and supports multiple output configurations for simplified system architecture.
Performance Characteristics
Feature Category Key Characteristics Description / Benefit
Core & Material EE28 Ferrite Core Standardized size offering excellent cost-performance ratio and wide availability
Core & Material High-Frequency Ferrite Material Low core loss at high frequencies (kHz to MHz range), ensuring high efficiency
Electrical Performance High Efficiency (>90% typical) Minimizes energy loss as heat, crucial for thermal management and energy-saving designs
Electrical Performance High Isolation Voltage Provides safe galvanic isolation between primary and secondary, meeting safety standards
Thermal & Reliability Good Thermal Stability Maintains stable performance across wide operating temperature range (-40°C to +125°C)
Application-Oriented Compact Size & High Power Density Ideal for space-constrained applications like adapters and LED drivers
Compliance & Standards RoHS & REACH Compliant Meets environmental regulations for hazardous substances

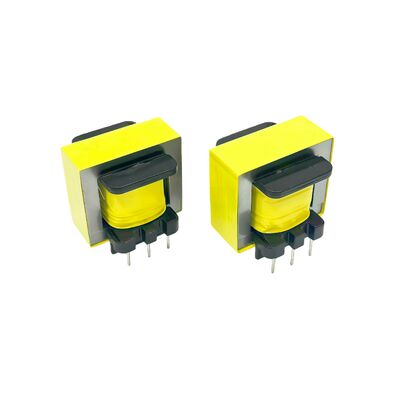

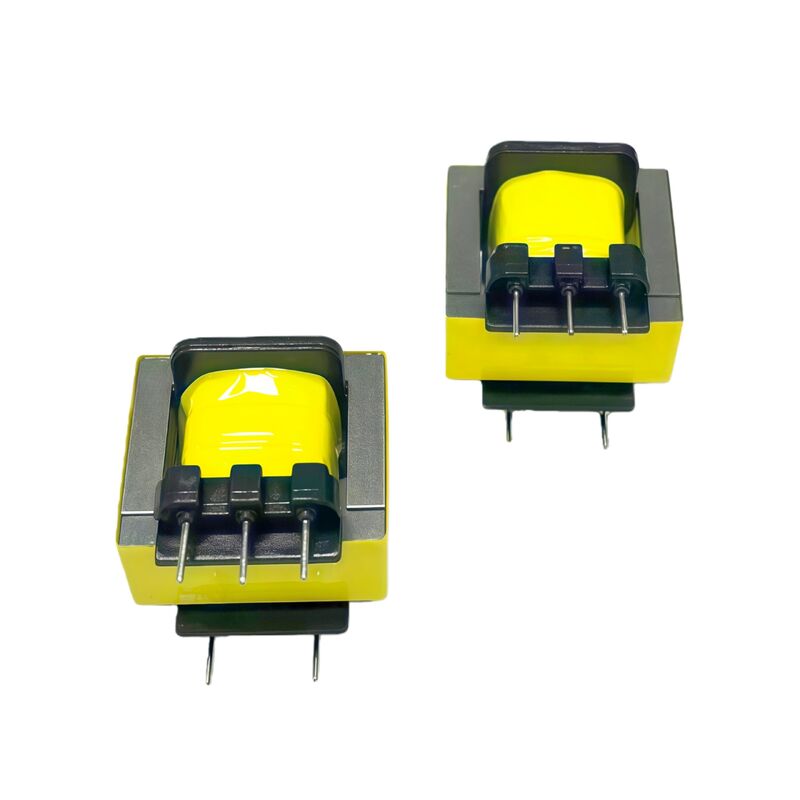

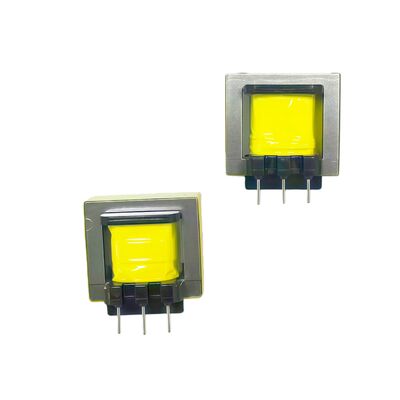

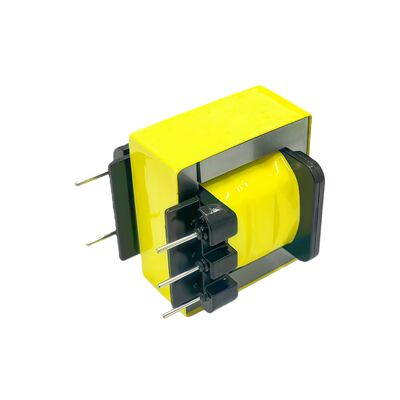

Product Images
E28 High Frequency Transformer with EE28 Ferrite Core for High Efficiency Power Conversion and 3kV AC Isolation in Compact Design 0 E28 High Frequency Transformer with EE28 Ferrite Core for High Efficiency Power Conversion and 3kV AC Isolation in Compact Design 1 E28 High Frequency Transformer with EE28 Ferrite Core for High Efficiency Power Conversion and 3kV AC Isolation in Compact Design 2 E28 High Frequency Transformer with EE28 Ferrite Core for High Efficiency Power Conversion and 3kV AC Isolation in Compact Design 3 E28 High Frequency Transformer with EE28 Ferrite Core for High Efficiency Power Conversion and 3kV AC Isolation in Compact Design 4 E28 High Frequency Transformer with EE28 Ferrite Core for High Efficiency Power Conversion and 3kV AC Isolation in Compact Design 5
